AC Capacitor Motor for Home Appliances

This AC capacitor motor is designed for use in home appliances such as electric fans. It operates at 220V and 50Hz.

Technical Specifications

Overview

High-Efficiency AC Capacitor Motor

This EF94 series capacitor motor is engineered specifically for home appliance applications, such as air conditioner fans. It offers reliable performance with a stable speed of 850r/min and is designed for standard 220V/50Hz power grids. The compact, durable construction includes integrated ventilation and precision-engineered mounting features for easy installation.

Electrical Specifications

Rated Voltage: 220 V
Rated Frequency: 50 Hz
Power Consumption: 30 W
Rated Current: 0.25 A
Capacitor Specs: 3uF / 450V

Performance

Rated Speed

850 r/min

Speed

Physical Dimensions

Feature	Dimension
Motor Length	188mm ±0.20mm
Body Width	75mm ±0.50mm
Body Height	37.0mm ±1.0mm
Body Diameter	96mm
Shaft Diameter	10mm
Shaft Length	29mm

Mounting Features

Mounting holes diameter: 5.5mm
Circular front design diameter: 127mm
M8-6g threaded features

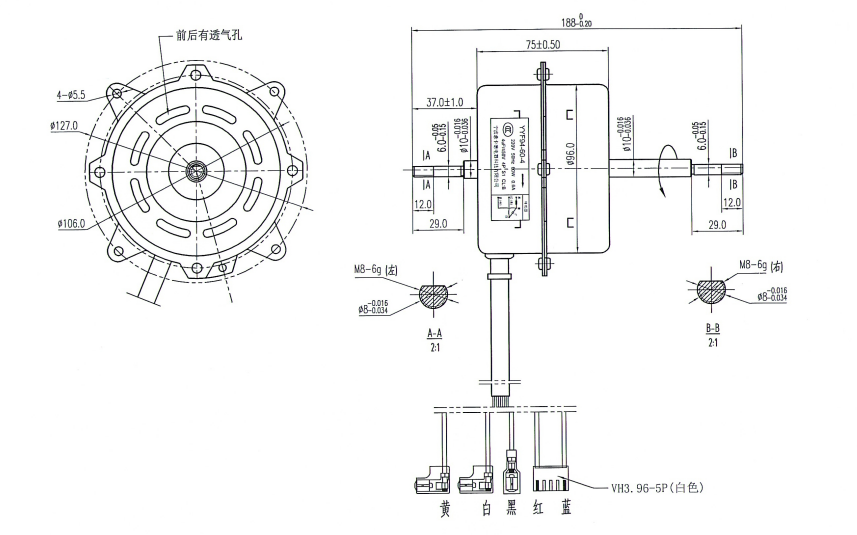

Technical drawing of the EF94 series motor showing dimensions, shaft details, and wiring configuration. — Dimensional blueprint of the EF94 series motor, including cross-sectional views and mounting specifications.

Connectivity

Wiring & Connector: YellowWhiteBlackRedBlueVH3.96-5P Connector
