AC 220V Cooling Fan 150x150x25mm
This AC 220V cooling fan is designed with a die-cast aluminum housing and a glass fiber reinforced plastic impeller. It provides effective cooling for various electronic and industrial applications.
Technical Specifications
Product Overview
Industrial-Grade AC Cooling Solution
This 150x150x25mm AC cooling fan is engineered for high-performance heat dissipation in demanding B2B environments such as compressors, power supplies, and industrial machinery. Featuring a robust die-cast aluminum housing and UL 94V-0 rated glass fiber reinforced impellers, it ensures reliable operation under thermal stress. With flexible connectivity options including leader wires or terminals, it is designed for seamless integration into professional equipment.
Technical Specifications
Rated Voltage
220 V
AC Voltage
- Dimensions
- 150 x 150 x 25 mm
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200V/S
Construction & Materials

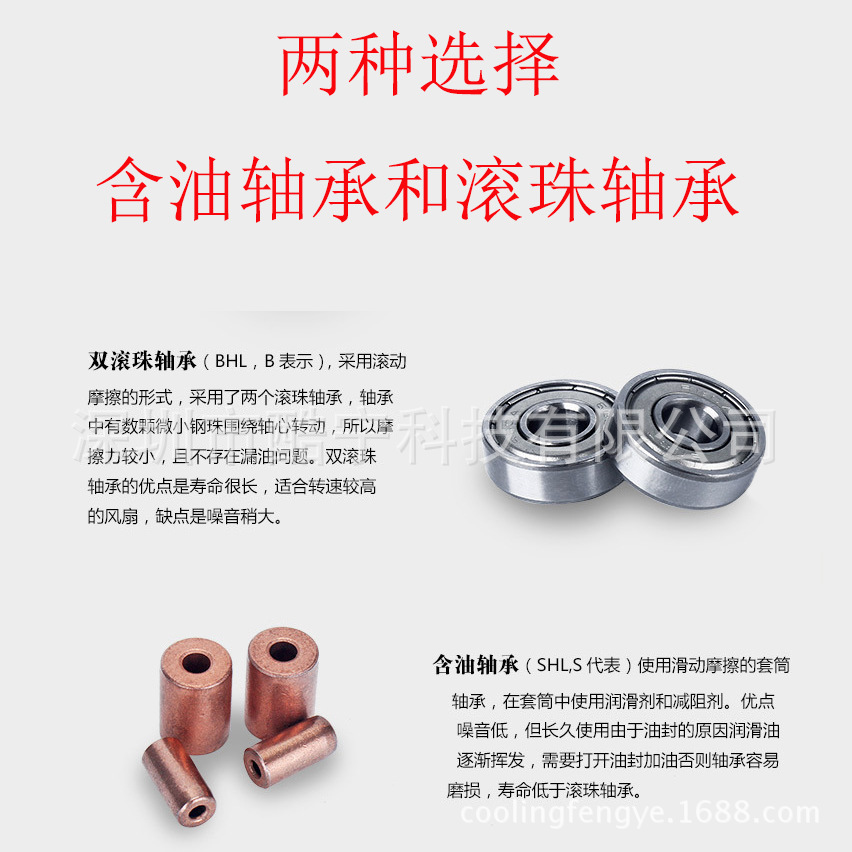

Available Bearing Types
- Double Ball Bearing (Long lifespan, high speed)
- Sleeve Bearing (Low noise, cost-effective)
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rating)
- Motor Wiring
- High-temperature copper line
Installation & Usage
Ideal Applications
- Air Compressors
- Power Supply Units
- Server Cabinets
- UV Power Sources
- LED Lighting Systems

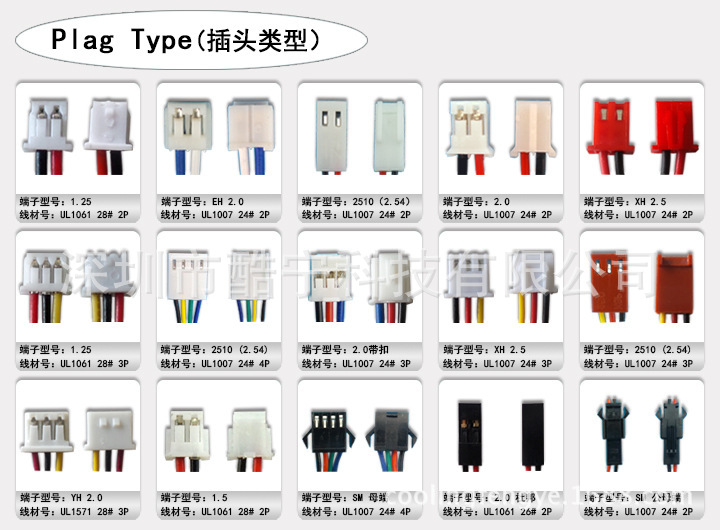

- Connection Options
- Leader WireTerminal
- Max Operating Temperature
- 80 °C
Service & Warranty
Warranty Period
| Bearing Type | Warranty Duration |
|---|---|
| Sleeve Bearing | 1 Year |
| Ball Bearing | 2 Years |
