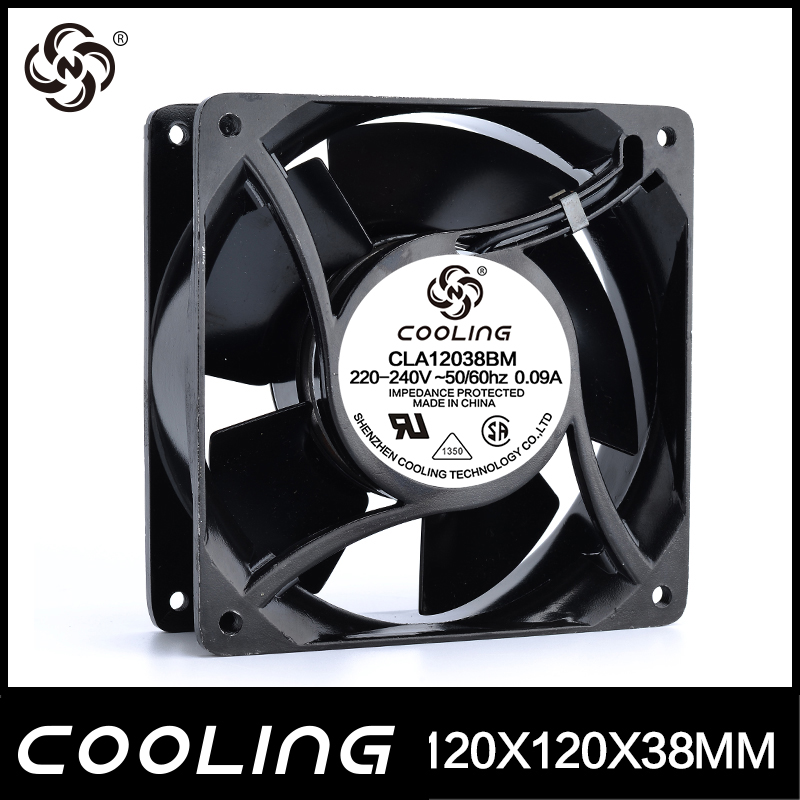

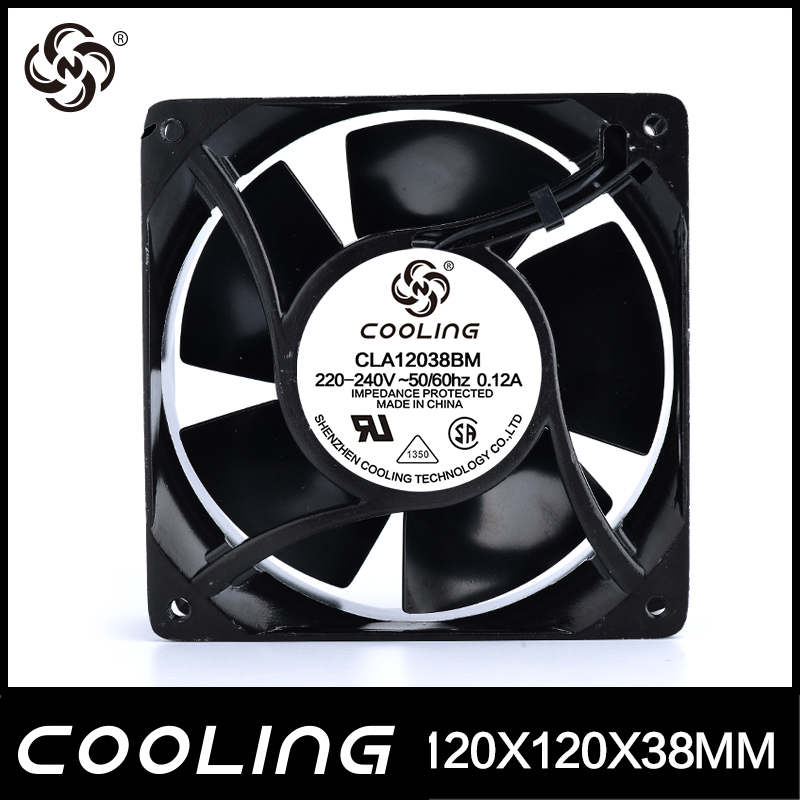

220V AC Cooling Fan, 120x120x38mm, Copper Wire
This AC fan features a die-cast aluminum housing and a glass fiber reinforced plastic impeller. It is designed with high-temperature copper wiring and is available with a leader wire or terminal.
Technical Specifications
Overview
High-Efficiency 220V AC Cooling Fan
This 120x120x38mm AC cooling fan is engineered for reliable heat dissipation in industrial and electronic equipment. Featuring a robust die-cast aluminum housing and a UL 94V-0 rated glass fiber reinforced impeller, it is built for durability and safety. The unit utilizes high-temperature copper windings and is available with either ball or sleeve bearings to suit specific operational requirements and environmental conditions.
Physical_Properties
Physical Dimensions & Weight
120 mm
Length
120 mm
Width
38 mm
Depth
0.53 kg
Weight
- Construction Materials
- Die-cast aluminum housingGlass fiber reinforced plastic impellerHigh-temperature copper wire
Electrical_Specs
Electrical Safety Ratings
- Insulation Impedance: 500MΩ
- Resist Strength: 2200V/S
- UL 94V-0 Flammability Rating
Operational_Environment
Operating Temperature Range
| Bearing Type | Temperature Range |
|---|---|
| Ball Bearing | -30°C to +75°C |
| Sleeve Bearing | -10°C to +70°C |
Performance_Data
Model Performance Specifications
| Model | Voltage (V) | Speed (RPM) | Noise (dB-A) |
|---|---|---|---|
| CLA12038HA1 | 110/120 | 2650/2950 | 40/45 |
| CLA12038HA2 | 220/240 | 2700/3100 | 42/47 |
| CLA12038HA3 | 380 | 2600 | 40 |
Logistics
- Packaging Details
- 40pcs per carton
