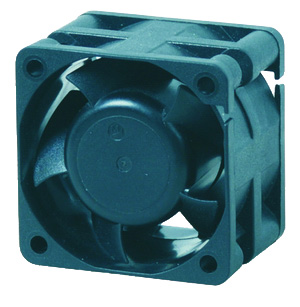

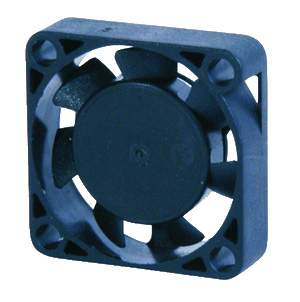

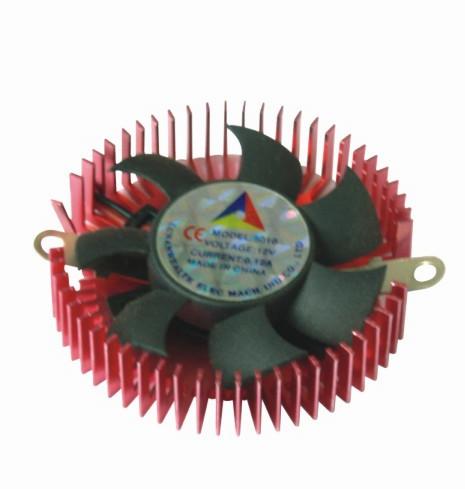

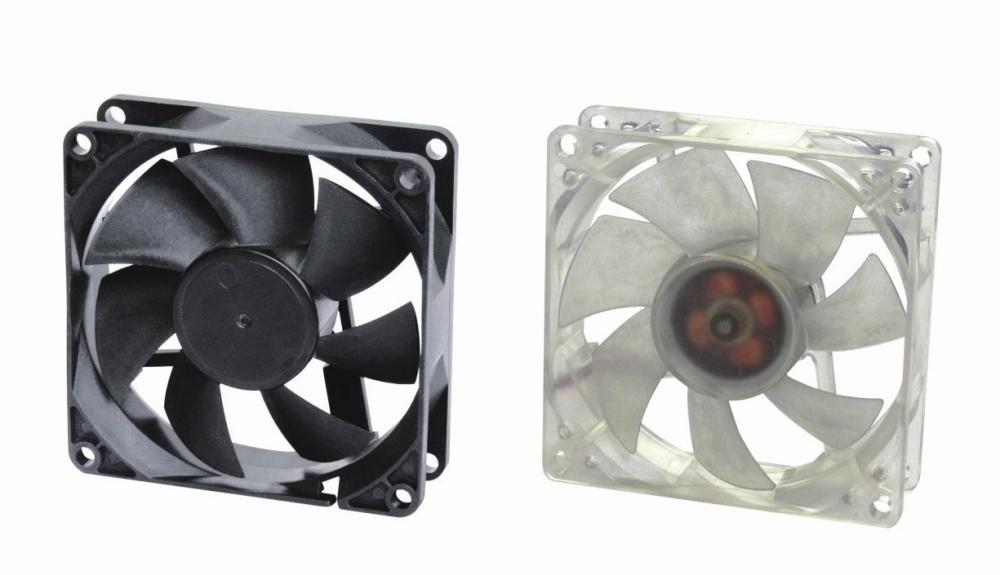

DC Brushless Fans (BLDC)

DC brushless fans (BLDC) are the backbone of modern thermal management, relied upon in everything from consumer electronics and telecom equipment to industrial automation and automotive cooling. Sourcing these components in volume is rarely as simple as matching dimensions and voltage. Securing reliable bulk DC fans requires strict attention to bearing lifespan, motor efficiency, stator winding precision, and acoustic consistency across production runs. A misstep in supplier selection can lead to premature motor failure, excessive vibration, or inconsistent RPMs that trigger system thermal alarms.

Critical Specifications for Bulk Buyers

When negotiating with BLDC fan manufacturers, vague specifications invite cost-cutting. Factories optimize for price by default unless you define the exact performance and longevity requirements for your application.

• Airflow vs. Static Pressure: High CFM (Cubic Feet per Minute) is ideal for open-case cooling, but restricted spaces (like telecom chassis or server racks) require high static pressure (measured in mmH2O) to push air through dense components.
• PWM Control and Tachometer Output: Standard 2-pin fans only offer basic power and ground. For modern applications, specify 3-pin (tachometer for RPM monitoring) or 4-pin (PWM for precise speed control) configurations.
• Ingress Protection (IP Rating): If the end product operates outdoors or in harsh industrial environments, specify IP55 to IP68 ratings. This requires the factory to use conformal coating or fully pot the motor hub and PCB in epoxy.

Manufacturing Process and Quality Control

The reliability of a DC brushless fan is determined on the factory floor. While the plastic injection molding of the frame and impeller is straightforward, the assembly of the motor and PCB dictates the fan's true quality.

If you are evaluating new suppliers, conducting rigorous factory audits is essential to verify their motor winding and balancing capabilities.

Where Quality is Won or Lost

1. Stator Winding: Automated winding machines ensure consistent copper wire tension. Hand-wound stators (common in lower-tier factories trying to save on tooling) lead to uneven magnetic fields, causing motor jitter and excess heat.
2. Impeller Balancing: High-speed fans (over 3,000 RPM) must be dynamically balanced. Factories should use automated balancing machines to add precise counterweights (often small dabs of epoxy) to the inner hub. Unbalanced impellers destroy bearings rapidly.
3. PCB Assembly and Soldering: The integrated circuit (IC) controls the commutation of the brushless motor. Cold solder joints or cheap ICs lead to fans that fail to start at lower voltages or burn out under load.

Implementing strict quality control measures before the fans leave Asia is the only way to prevent receiving containers of vibrating, out-of-spec components.

Pricing, MOQs, and Sourcing Reality

The wholesale price of a BLDC fan is driven primarily by the bearing type, the copper content in the motor, the IC controller, and the quality of the plastic resin (PBT plastic with fiberglass reinforcement is standard; regrind plastic is a major red flag).

If you require custom housing designs, specific impeller blade geometries, or proprietary fan control logic, you will need a factory capable of robust OEM/ODM services. Custom tooling for a new fan frame typically costs between $2,000 and $5,000, depending on the size and complexity of the mold.

Frequently Asked Questions

Sourcing reliable DC brushless fans in bulk requires looking past the spec sheet and understanding the factory's production controls. By validating bearing authenticity, enforcing dynamic balancing standards, and maintaining strict pre-shipment testing, buyers can secure high-performance thermal solutions that protect their end products and their brand reputation.
