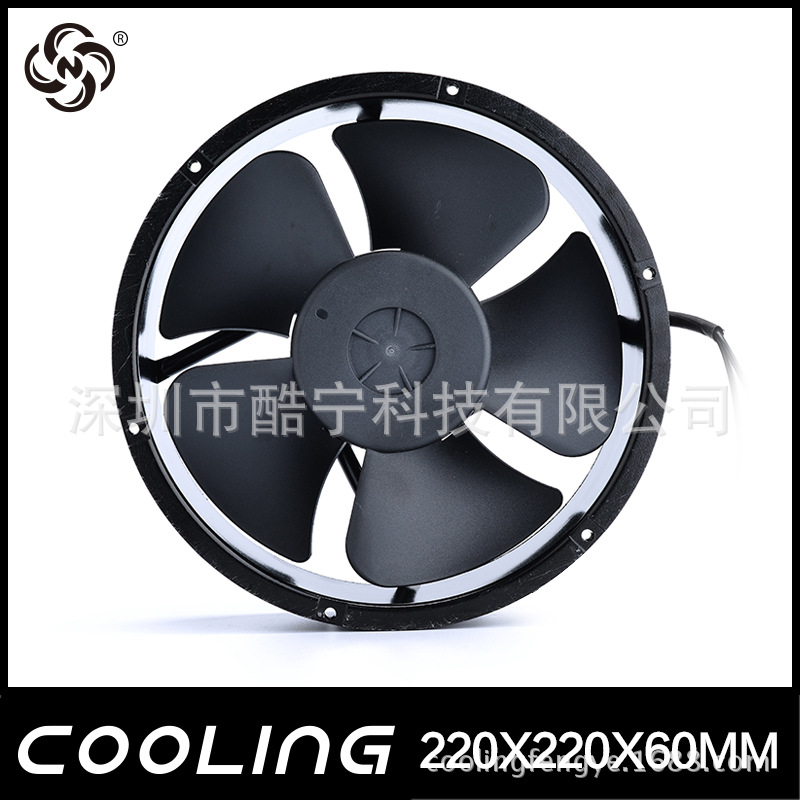

220V AC Cooling Fan 220x220x60mm
This AC cooling fan operates at 220V and measures 220x220x60mm. It is designed with a die-cast aluminum housing and a glass fiber reinforced plastic impeller.
Technical Specifications
Overview
High-Performance Industrial Cooling
This 220V AC cooling fan is specifically engineered for high-demand industrial applications such as welding machines, induction cookers, and compressors. Measuring 220x220x60mm, it features a robust die-cast aluminum housing and glass fiber reinforced plastic impellers for maximum durability and heat resistance. Designed for professional-grade thermal management, it offers a high-efficiency solution to maintain optimal operating temperatures and extend the lifespan of your critical machinery.
Performance Metrics
Key Performance Metrics
3,200 RPM
Max Speed
400 CFM
Max Air Flow
66 dB-A
Max Noise
60 W
Input Power
Technical Specifications
Operating Parameters
| Parameter | Value (220V Models) |
|---|---|
| Rated Voltage | 220VAC |
| Operating Voltage Range | 220~240VAC |
| Rated Current | 0.26~0.29 Amp |
| Max Air Pressure | 25.4~36 mmH2O |
| Insulation Impedance | 500MΩ |
| Resist Strength | 2200V/S |

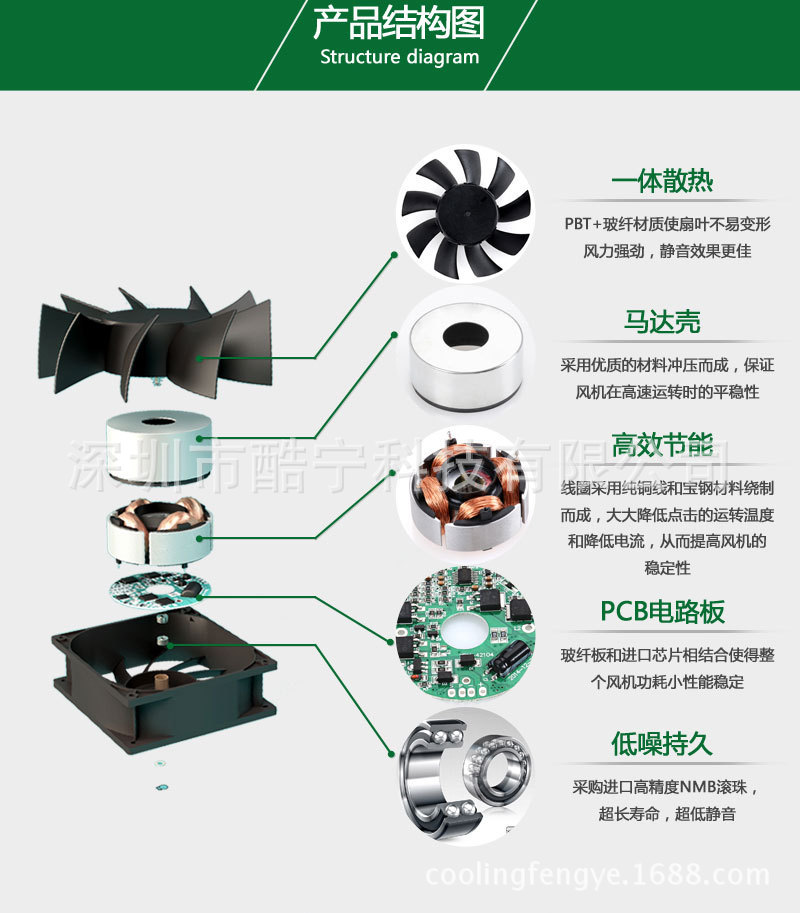

Construction & Materials
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rating)
- Motor Components
- Pure Copper WireBaosteel Material WindingsFiberglass PCBHigh-Temperature Copper Line
Options & Customization

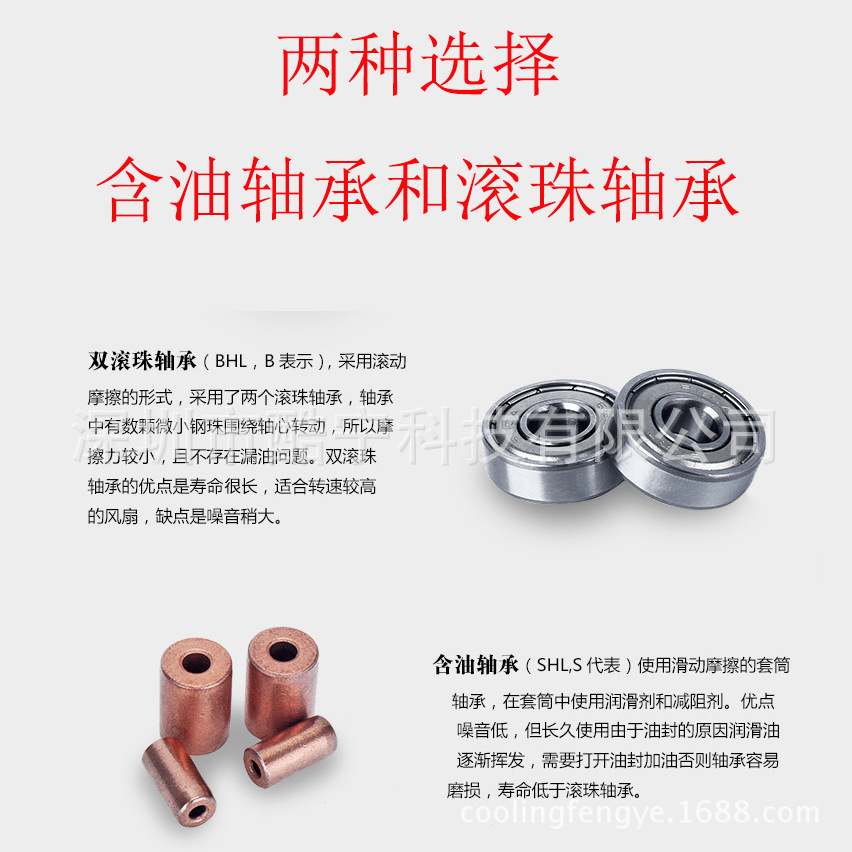

Available Bearing Systems
- Ball Bearing (Long lifespan, high speed, 2-year warranty)
- Oil-Impregnated Bearing (Low noise, cost-effective, 1-year warranty)

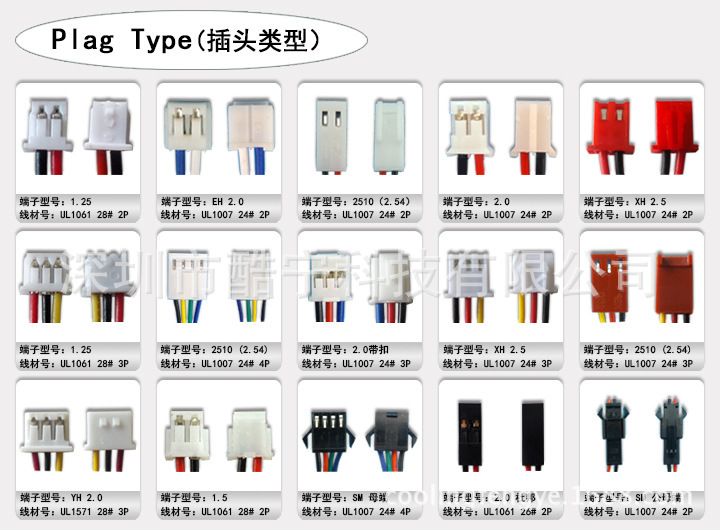

Connection Options
- Leader Wire
- Terminal Interface
- Custom Plugs (XH2.5, EH2.0, 2510, etc.)
Safety & Usage
Operating Guidelines
- Do not use in environments exceeding 80°C
- Avoid dust, water droplets, and insect entry
- Do not use in flammable or harmful gas environments
- Ensure screws are locked with torque not exceeding 4Kgf
- Avoid dropping from heights over 60cm to maintain balance
Dimensions
- Dimensions
- 220 x 220 x 60 mm
