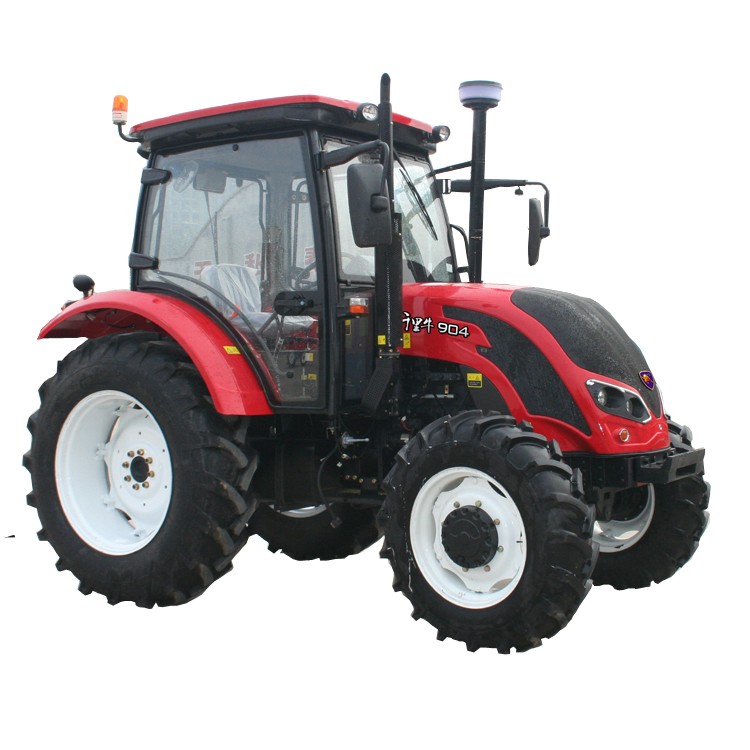

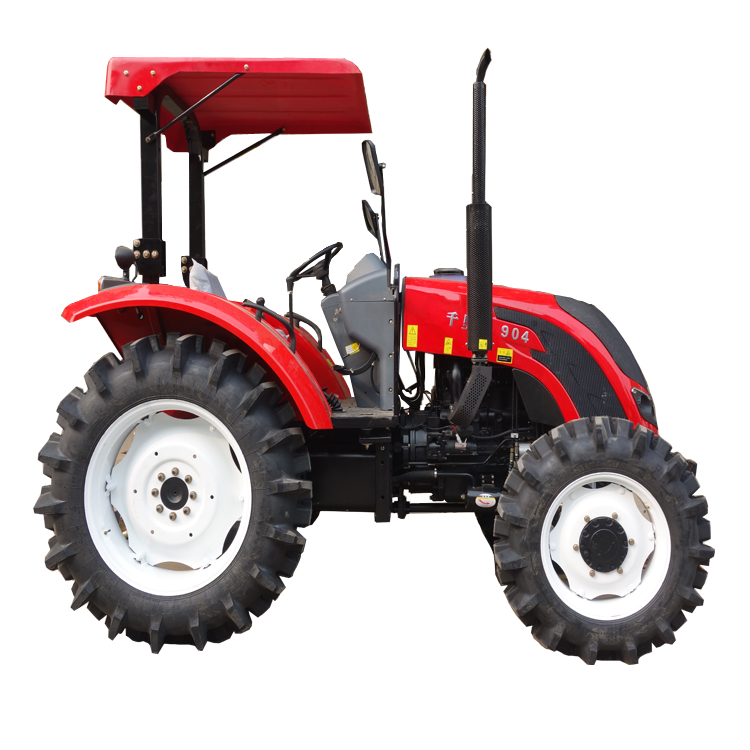

90HP Farm Tractor
This farm tractor features a robust engine and a double-acting clutch. It is also equipped with a large fuel tank and a linkage system.
Technical Specifications
Overview
Versatile Agricultural Power
This 90HP farm tractor is a robust and versatile agricultural machine designed for a wide range of farming tasks, from plowing and tilling to harvesting. It features a powerful, water-cooled 4-cylinder diesel engine that provides high economic efficiency and low fuel consumption. Built with a durable transmission and a comfortable operator station, this tractor ensures reliable performance and productivity even in challenging field conditions.
Engine Performance
Engine Performance
66.2 kW
Rated Power
2,200 r/min
Rated Speed
4
Cylinders
- Cooling System
- Water Cooled
- Fuel Tank Capacity
- 150 L
Technical Specifications
- Clutch Type
- Double-acting, Dry, Dual Stage
- PTO Speed
- 540 rpm1000 rpm
- Rear Linkage
- II Rear Mount 3-point
Dimensions & Weight
Physical Dimensions
| Metric | Value |
|---|---|
| Length | 4280 mm |
| Width | 2085 mm |
| Height | 2925 mm |
| Ground Clearance | 450 mm |
| Dry Mass (with Cab) | 3915 kg |
Wheel Tread
- Front: 1520 mm
- Rear: 1620 mm
