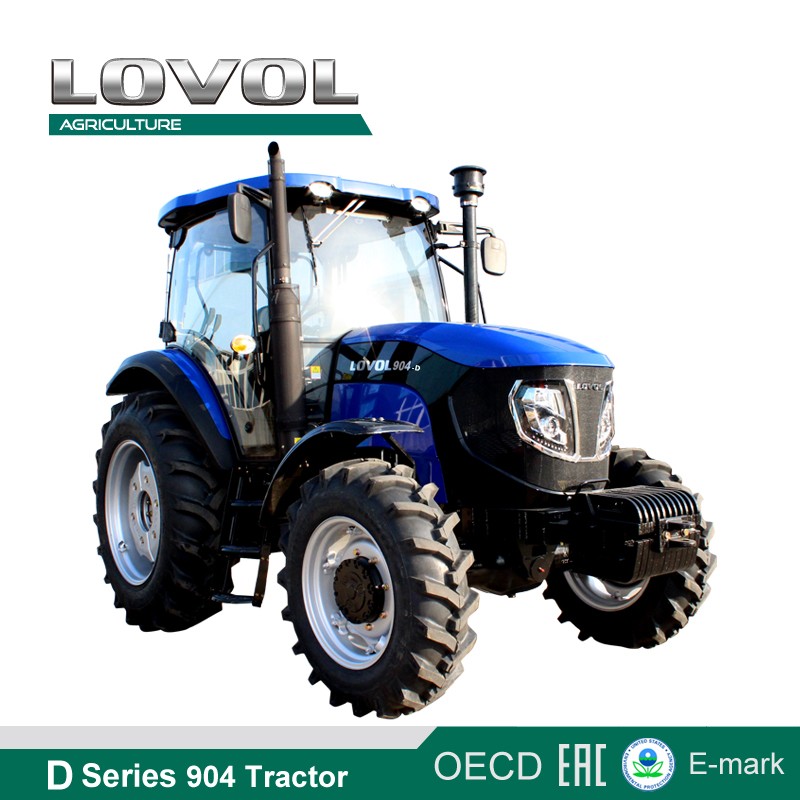

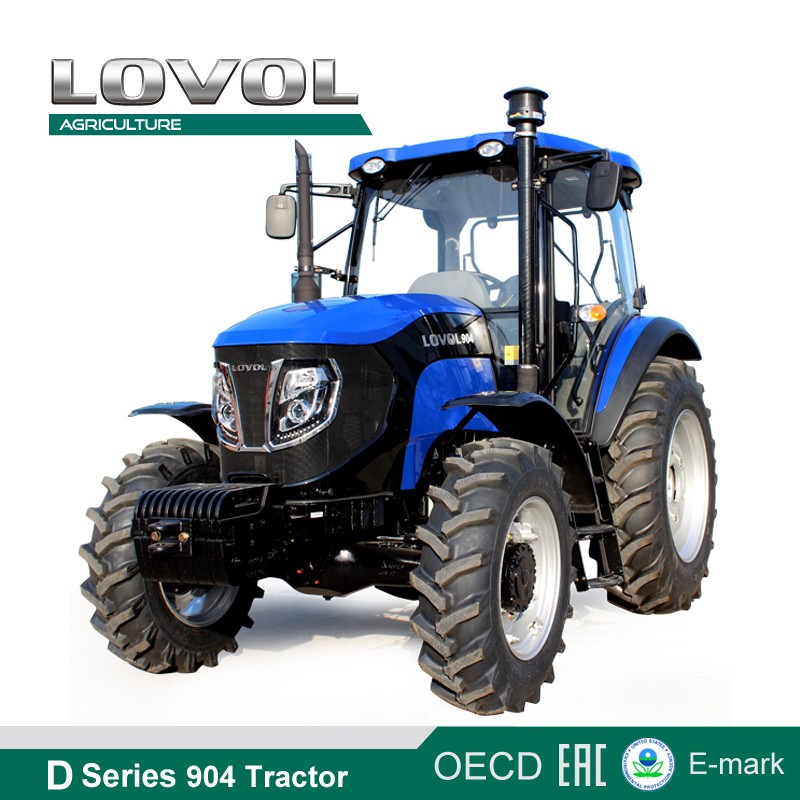

90 HP Wheel Tractor
This 90 HP wheel tractor is designed for dry land and multifunctional applications. It features multiple tire options, optional air filters, and a two-way hydraulic output.
Technical Specifications
Overview
Versatile 90 HP Wheel Tractor
This 90 HP wheel tractor is engineered for dry land and multifunctional agricultural applications. Utilizing advanced European technology, it features a high-torque engine and a synchronized 16F+8R transmission for smooth operation. With a robust chassis, strengthened front axle, and multiple configuration options, it is designed to meet the diverse needs of modern farming operations.
Performance
Key Performance Metrics
90 HP
Power Output
35 %
Torque Reserve
21.3 kN
Traction Force
- Maximum Lifting Force
- 20 kN
Technical Specifications
PTO Specifications
- 6/8/21 splines switchable
- Rotation speed: 540/1000 RPM
- Transmission
- Synchronizer 16F+8R
- Fuel Tank Capacity
- 145L (Optional 90L iron tank)
- Hydraulic System
- Two-way output (three-way available)
Features & Compliance
International Certifications
OECDEACE-mark
- Optional Features
- Internal air filterExternal air filterSingle pipeline air brakeDouble pipeline air brakeDouble cylinders high pressure lifter
