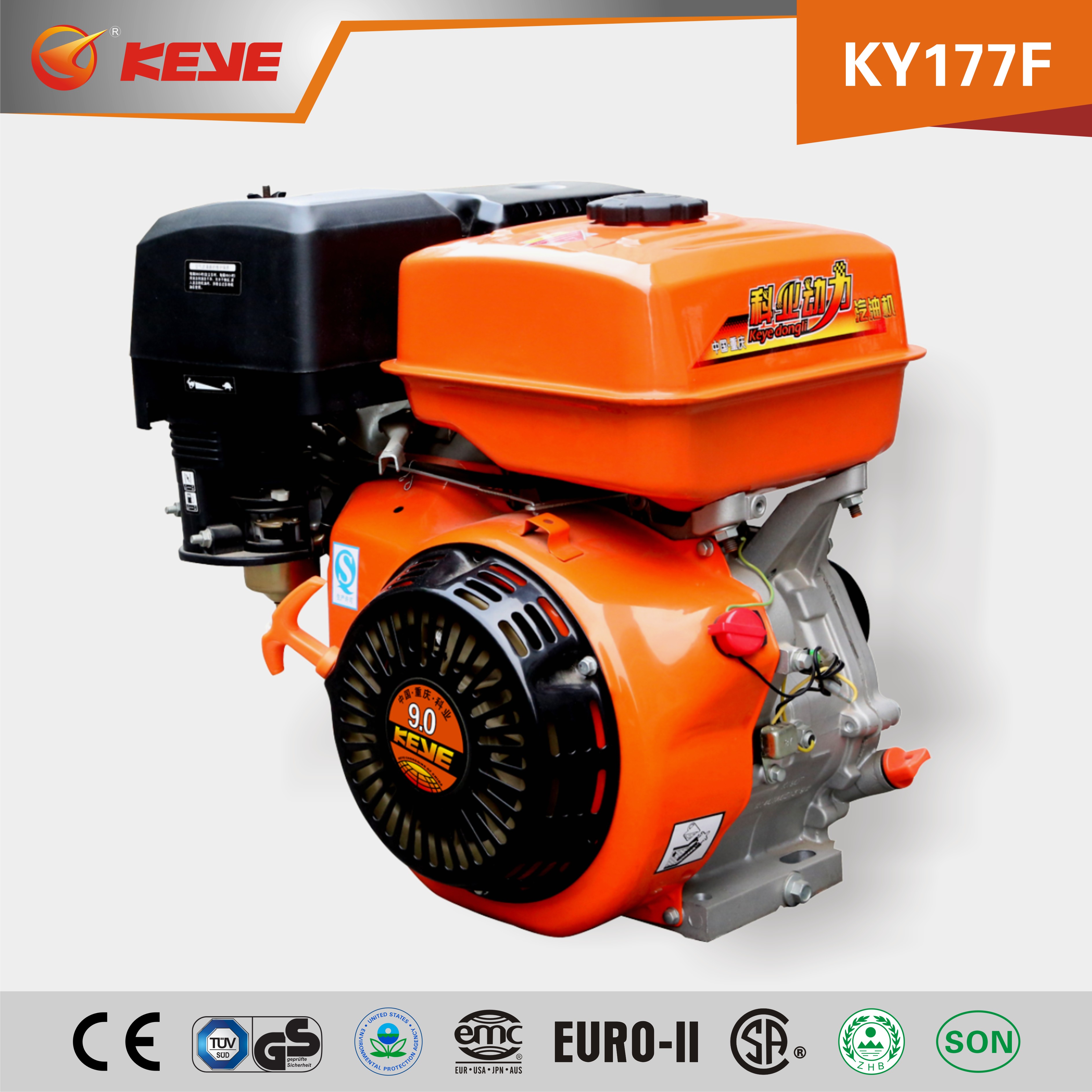

9.0 Horsepower Gasoline Engine
This gasoline engine is a robust and reliable power source suitable for various applications. Featuring a durable construction and efficient design, this engine delivers consistent performance.
Technical Specifications
Overview
High-Efficiency 9.0HP Gasoline Engine
This 9.0 horsepower gasoline engine is engineered for demanding agricultural and industrial applications, offering a robust power source with enhanced efficiency. The unit features an advanced combustion system designed to reduce fuel consumption by 10% compared to standard models while effectively mitigating cylinder head carbon deposition. With its versatile output shaft and dual-start capabilities, it provides a reliable and flexible solution for various machinery requirements.
Performance Metrics
Rated Output
8 kW
Rated Output
3,600 rpm
Rated Speed
- Max Torque
- 25 N.m
Technical Specifications
Engine Configuration
| Parameter | Specification |
|---|---|
| Engine Type | Single-cylinder OHV 25° inclined, four-stroke, forced, air-cooled |
| Displacement | 420 ml |
| Bore x Stroke | 90 x 66 mm |
| Ignition System | Transistor magneto |
Fuel & Oil Capacity
- Fuel tank capacity: 6.5 L
- Oil capacity: 1.1 L
- Fuel consumption: ≤374 g/kW.h
Features & Compatibility
- Key Features
- 10% Fuel SavingsImproved Air IntakeReduced HeatRecoil/Electric StartPulley-Compatible Shaft
Logistics
Physical Dimensions & Weight
- Net Weight: 31 kg
- Gross Weight: 32 kg
- Dimensions: 520 x 465 x 485 mm
Container Loading Capacity
192 sets
20' GP
500 sets
40' GP
