9 HP Diesel Rotary Tiller
This rotary tiller is equipped with a 9 HP diesel engine for powerful soil cultivation. It offers adjustable tilling width and depth for customized soil management.

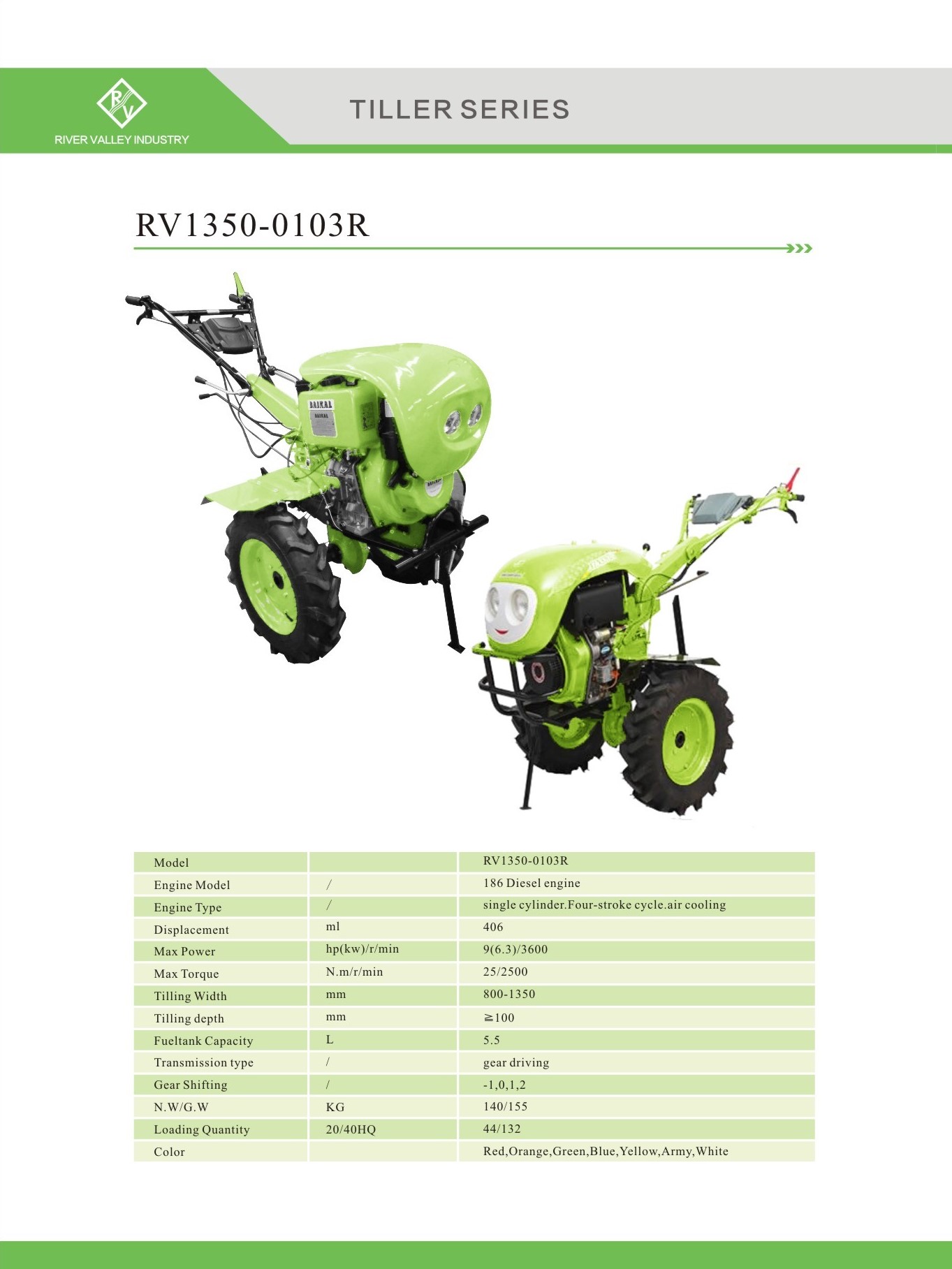

Technical Specifications
Overview
Robust Soil Preparation Solution
The RV1350-0103R is a heavy-duty diesel rotary tiller designed for professional soil cultivation and agricultural preparation. Equipped with a 9 HP engine and a gear-driven transmission, it offers reliable power for efficient field management. Its adjustable tilling width and depth capabilities, combined with an ergonomic, user-friendly design, ensure precision and comfort during extended operation.
Engine Specifications
Engine Performance Metrics
9 hp
Max Power
25 N.m
Max Torque
406 ml
Displacement
Engine Technical Details
- Model: 186 Diesel engine
- Type: Single cylinder, four-stroke cycle, air-cooled
Operation & Capability
Tilling Capacity
| Metric | Range |
|---|---|
| Tilling Width | 800-1350 mm |
| Tilling Depth | ≥100 mm |
- Transmission System
- Gear-driven with shifting options: -1, 0, 1, 2
Logistics & Physical
Weight Specifications
140 KG
Net Weight
155 KG
Gross Weight
- Available Colors
- RedOrangeGreenBlueYellowArmyWhite
