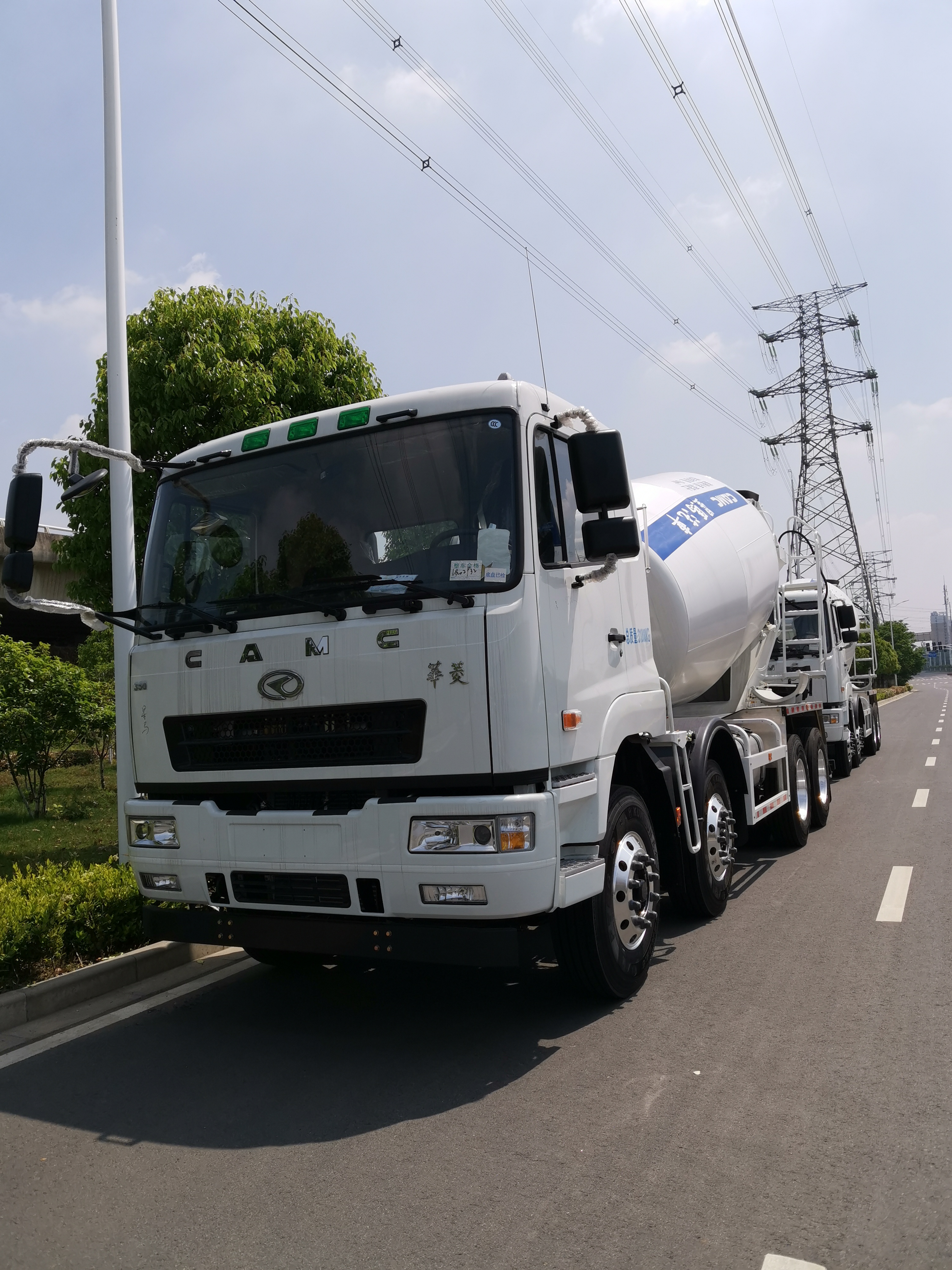

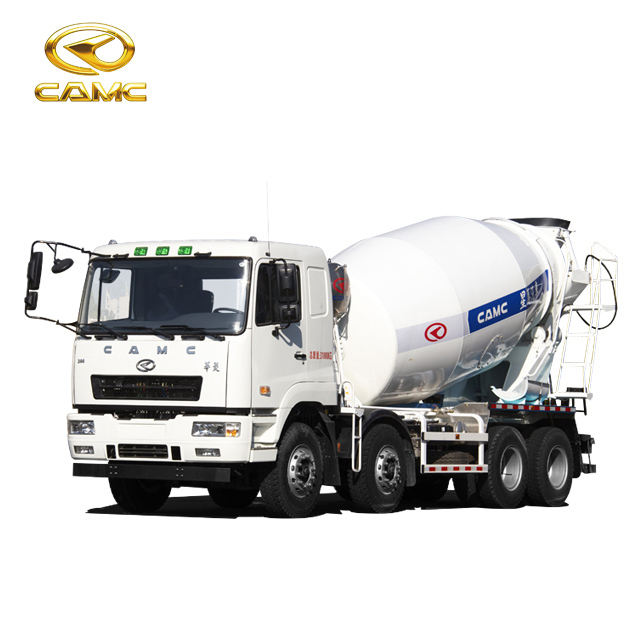

8x4 Concrete Mixer Truck
This 8x4 concrete mixer truck is a heavy-duty vehicle for transporting and mixing concrete. It features a high-capacity mixing drum and a robust chassis for demanding construction environments.
Technical Specifications
Overview
Heavy-Duty Concrete Mixer
This robust 8x4 concrete mixer truck is engineered for high-efficiency concrete transportation and mixing in demanding construction environments. Featuring a high-capacity 14 cubic meter mixing drum and a powerful 385 horsepower engine, it offers reliable performance and excellent load-bearing capabilities. The vehicle is designed with operator comfort and safety in mind, including a fully floating suspension cab and advanced braking systems.
Key Performance Metrics
Performance Highlights
14 m3
Mixing Volume
385 hp
Engine Power
31,000 kg
Gross Vehicle Weight
Technical Specifications
Dimensions & Weight
| Parameter | Value |
|---|---|
| Overall Dimension | 9490x2495x3100 mm |
| Wheel Base | 1850+3370+1350 mm |
| Kerb Weight | 11350 kg |
Engine & Drivetrain
Engine Details
- Type: Four-stroke, water-cooled, in-line, wet-liner, direct-injection
- Displacement: 9.84 L
- Max Torque: 1750 N.m @ 1100-1450 rpm
- Emission Standard: Euro II
- Transmission
- 9-speed mechanical manual with servo and synchronizer
Chassis & Suspension
Axle System
| Axle Type | Rated Capacity |
|---|---|
| Front Steering Axle | 7.5 T |
| Rear Casting Axle | 16 T |
Cab & Comfort
- Cab Interior Features
- Air ConditioningMP3 PlayerSingle BerthHydraulically Damped SeatPower WindowsAdjustable Steering Wheel
Safety & Braking
Braking System
- Dual circuit compressed air brake
- Spring energy parking brake
- Engine exhaust auxiliary brake
- Anti-lock Braking System (ABS)
