80x80x25 mm Axial Fan

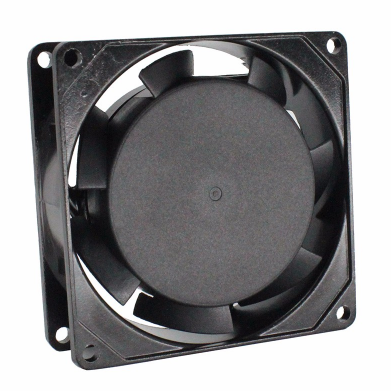

This 80x80x25 mm axial fan is designed for cooling electronic components. It features a square frame with mounting holes at each corner for easy installation.
Technical Specifications
Product Overview
High-Performance Axial Cooling Fan
This 80x80x25 mm axial fan is engineered for reliable thermal management in electronic enclosures and equipment. Constructed from durable plastic, it offers versatile performance with a wide operating voltage range of 100-240V. Designed to withstand demanding environments, it features an operating temperature range of -20°C to +70°C and a long service life of up to 50,000 hours.
Technical Specifications
Bearing Type
Ball BearingSleeve Bearing
- Rated Voltage
- 100~240V
- Rated Power
- 14 W
Performance Metrics
Operational Performance
3,000 RPM
Max Speed
16.96 CFM
Max Airflow
35.2 dB-A
Max Noise
- Operating Temperature
- -20°C to +70°C
Mechanical Dimensions
Dimensions
| Attribute | Value |
|---|---|
| Frame Size | 80 x 80 mm |
| Thickness | 25 mm |
| Mounting Hole Spacing | 71.5 ± 0.3 mm |
| Wire Length | 280 ± 10 mm |
Reliability
- Service Life
- 30,000 ~ 50,000 Hours
