Technical Specifications
Product Overview
High-Efficiency Solar Water Pumping Solution

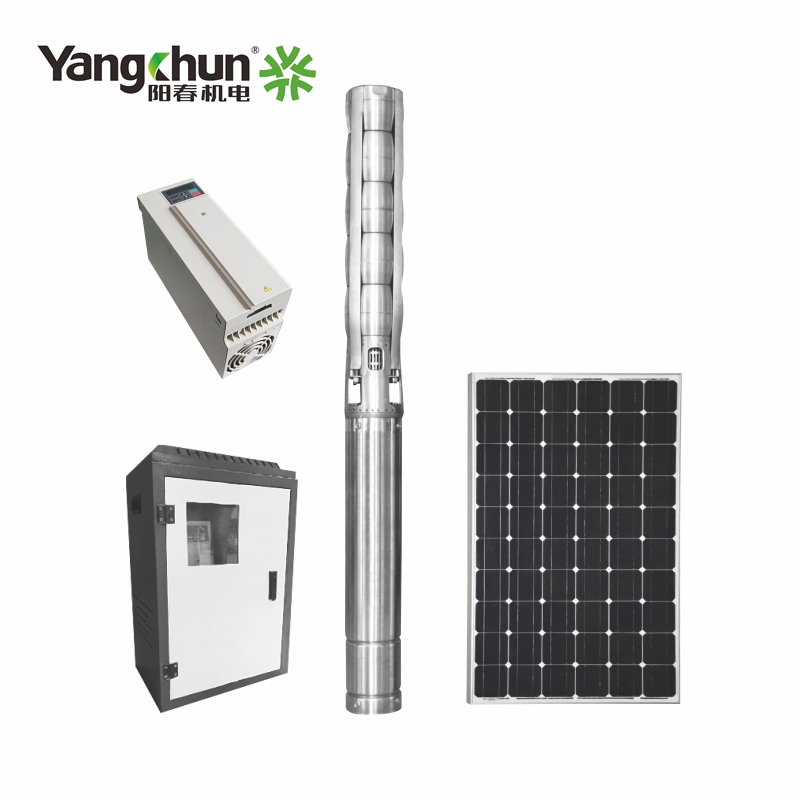

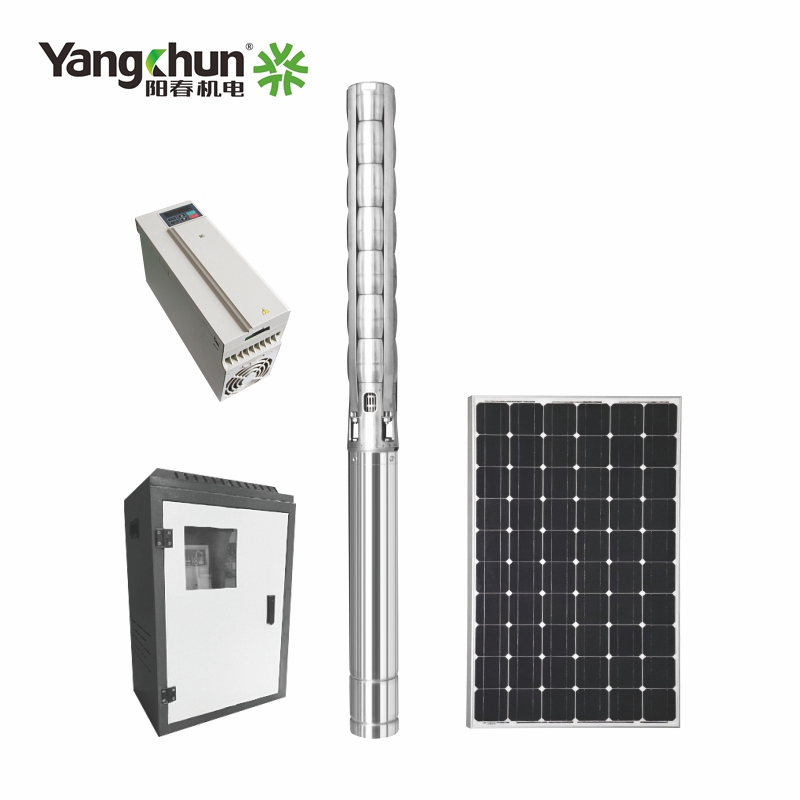

This 5" intelligent high-rotation speed solar pump is designed for high-demand B2B applications such as agricultural irrigation and livestock watering. Featuring a permanent magnet synchronous motor and all-stainless steel multistage impellers, it achieves speeds up to 5200 RPM for superior water delivery. The system is engineered for durability and environmental safety, containing no industrial oils while offering 4-8% higher efficiency than conventional well pumps.
Performance Metrics
Key Performance Indicators
80 m³/h
Max Flow Rate
5,200 RPM
Max Rotation Speed
520 VDC
Rated Voltage

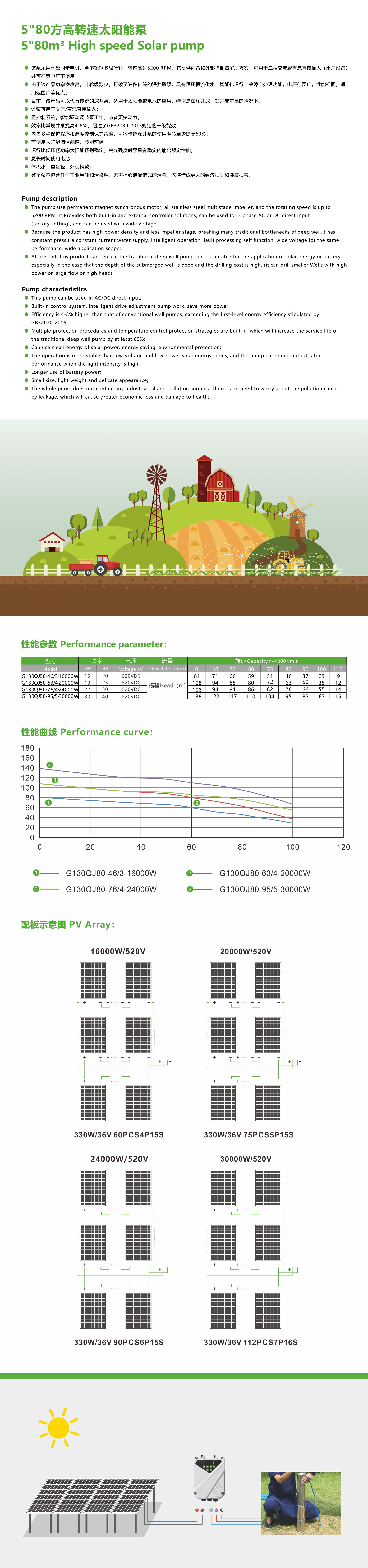

Technical Specifications
Model Comparison Table
| Model | Power (kW) | Max Flow (m³/h) | Max Head (m) |
|---|---|---|---|
| G130QJ80-46/3-16000W | 15 | 81 | 46 |
| G130QJ80-63/4-20000W | 19 | 81 | 63 |
| G130QJ80-76/4-24000W | 22 | 108 | 76 |
| G130QJ80-95/5-30000W | 30 | 138 | 95 |
Core Features
Advanced Features
- Permanent magnet synchronous motor
- All stainless steel multistage impeller
- Built-in and external controller solutions
- Constant pressure and constant current water supply
- Intelligent operation with fault self-processing
- AC/DC direct input compatibility
- Wide voltage application range
Protection & Reliability
- Protection Systems
- Temperature ControlLow-Voltage StabilityIntelligent Drive AdjustmentZero Oil PollutionEnvironmental Protection
Physical Attributes
Design Characteristics
Small SizeLight WeightDelicate AppearanceHigh Power Density
- Pump Diameter
- 5 inch
Solar Configuration
Recommended PV Array (330W/36V Panels)
| System Power | Total Panels | Configuration |
|---|---|---|
| 16000W | 60 PCS | 4P15S |
| 20000W | 75 PCS | 5P15S |
| 24000W | 90 PCS | 6P15S |
| 30000W | 112 PCS | 7P16S |
