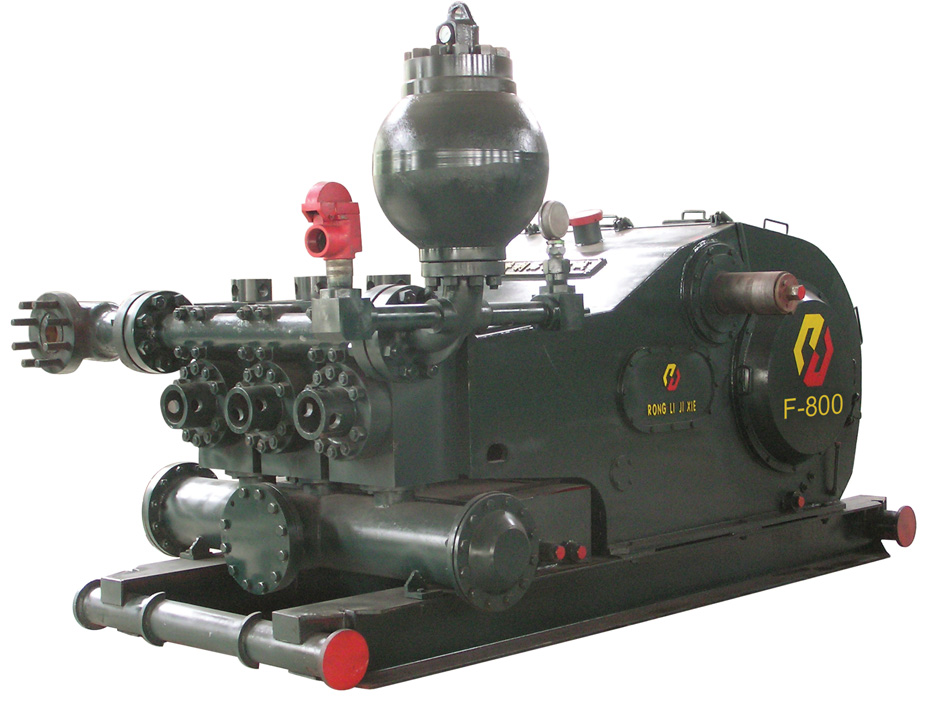

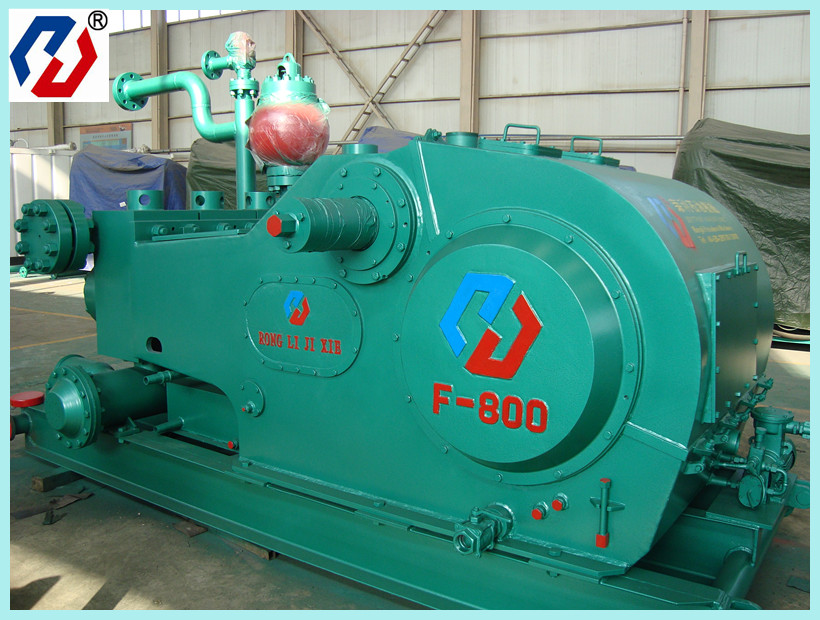

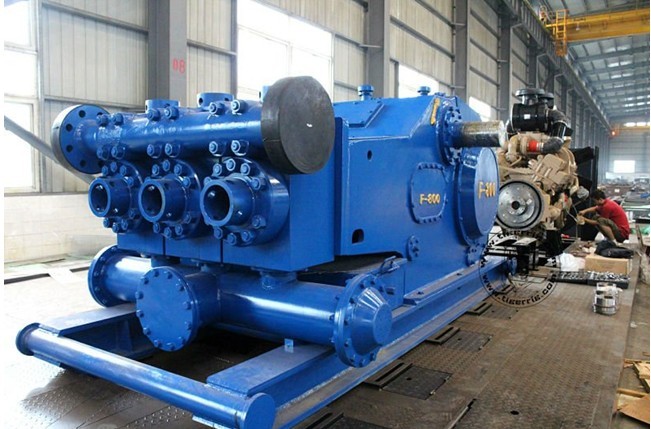

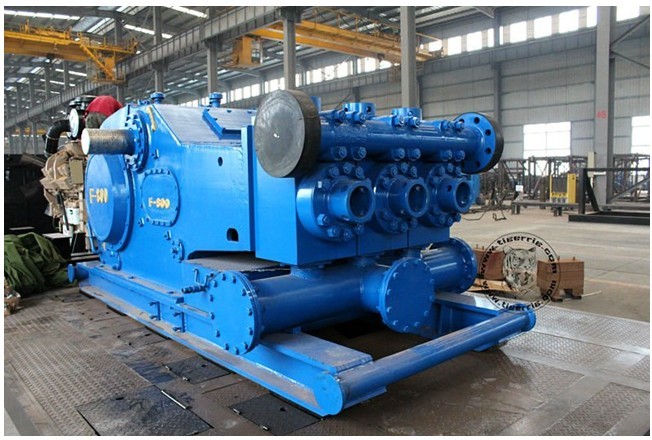

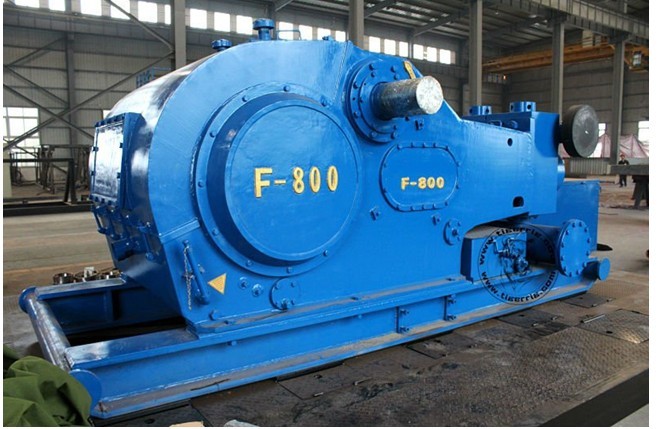

800HP Triplex Mud Pump with Cummins Diesel Engine
This 800HP triplex mud pump is designed for high-pressure operation in demanding environments. The unitized design features a durable frame and a reliable Cummins diesel engine for consistent fluid delivery.
Technical Specifications
Overview
High-Performance Triplex Mud Pump
This 800HP triplex mud pump is a single-acting reciprocating unit engineered for heavy-duty drilling and industrial fluid circulation applications. Designed to conform to API Spec 7K standards, the system offers robust performance with a maximum working pressure of 7500 psi. Its unitized construction ensures a compact footprint and reliable power transmission, making it an efficient solution for demanding field environments.
Performance Metrics
Rated Input Power
800 HP
Rated Input Power
- Max Working Pressure
- 7500 psi
- Stroke Per Minute
- 150 spm
Technical Specifications
Connection Sizes
| Connection Type | Size |
|---|---|
| Inlet Diameter | 8 in |
| Outlet Diameter | 5 in flange |
- Pump Configuration
- Single acting reciprocating triplex piston pump
- Max Diameter of Liner
- 6.75 in
- Valve Size
- API 7#
Compliance & Availability
Available Models
- F-500
- F-800
- F-1000
- F-1300/1300L
- F-1600/1600L
- Industry Standards
- API Spec 7K
