Technical Specifications
Overview
High-Performance Energy Storage

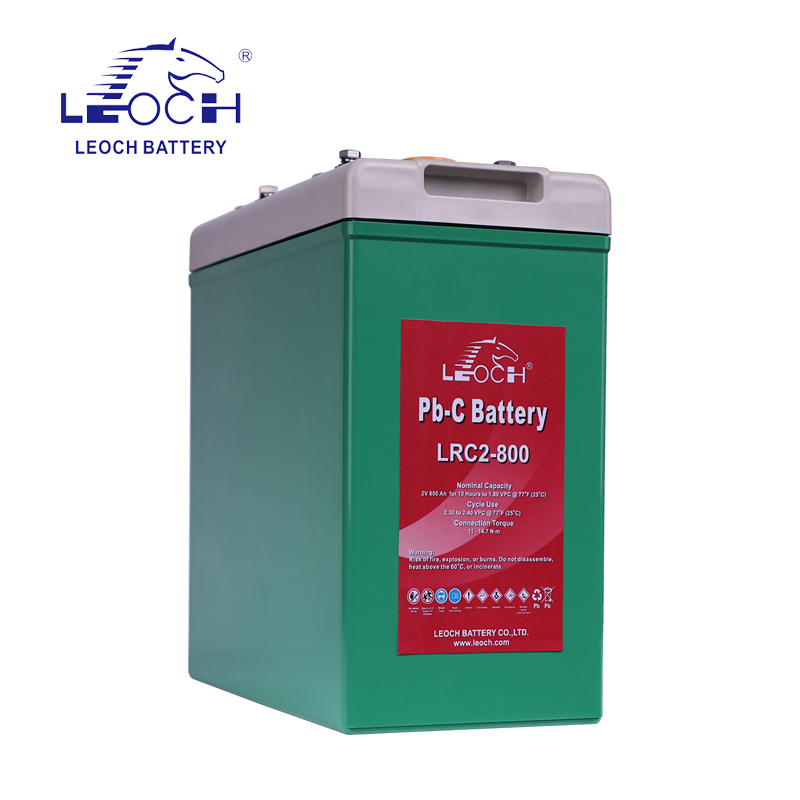

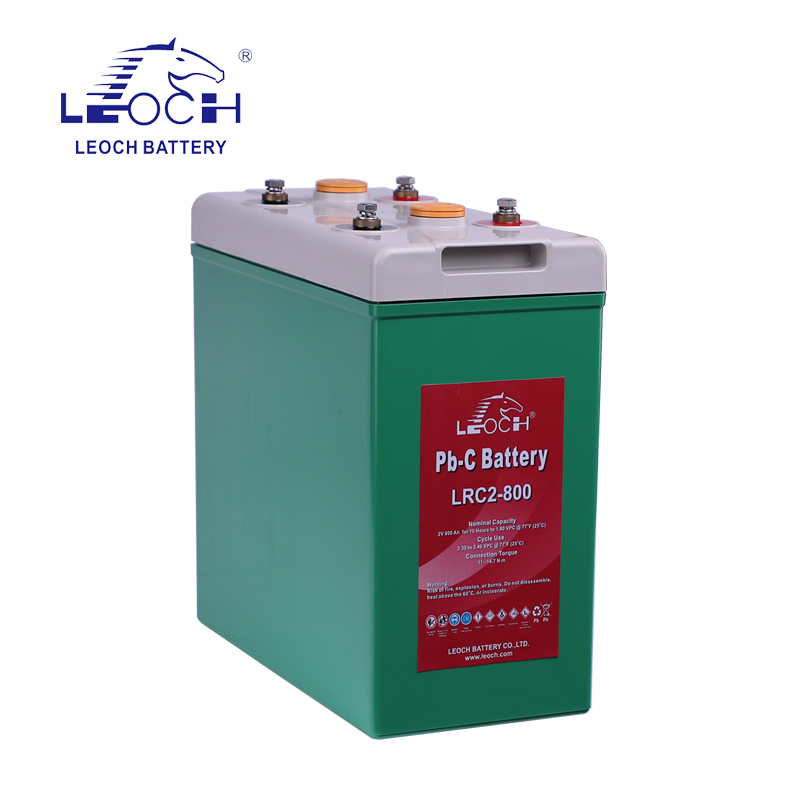

This 2V lead-carbon battery is engineered for demanding energy storage applications, combining advanced carbon and deep cycle technologies. With a design life of 15 years and a cycle life exceeding 4000 cycles at 60% depth of discharge, it offers exceptional longevity and reliability. Its optimized design ensures superior charge acceptance and rapid discharge performance, making it an ideal choice for renewable energy systems and smart grid infrastructure.
Technical Specifications
Nominal Capacity
800 Ah
Capacity
- Nominal Voltage
- 2 V
- Design Life
- 15 years
- Cycle Life
- ≥4000 cycles @ 60% DOD (25°C)
- Connection Torque
- 11 - 14.7 Nm
Operational Parameters
- Cycle Use Voltage
- 2.30 - 2.45 VPC @ 25°C
- Discharge Conditions
- 10-hour rate to 1.80 VPC @ 25°C
Applications
- Primary Applications
- Solar Energy StorageWind Energy StoragePeak Load ShiftingSmart GridMicro-grid SystemsMobile Container Storage
Safety
Handling Precautions
- Risk of fire, explosion, or burns
- Do not disassemble
- Do not heat above 60°C
- Do not incinerate
