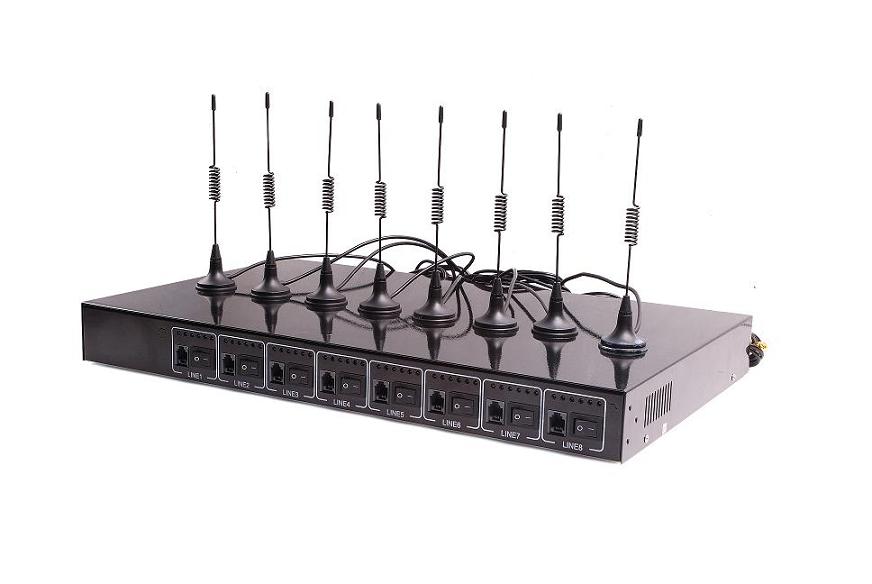

8-Port GSM Fixed Wireless Terminal
This 8-port GSM fixed wireless terminal operates on quad-band frequencies. It enables connection of standard analog phones or PBX systems to the GSM network.
Technical Specifications
Product Overview
Fixed Wireless Terminal Overview
This 8-Port GSM Fixed Wireless Terminal is designed to bridge the gap between mobile frequency networks and traditional telephony infrastructure. By accepting a standard SIM card, it allows you to connect analog telephones, fax machines, or PABX systems directly to the GSM network. It is an ideal solution for locations lacking landline access or for businesses looking to significantly reduce costs when calling mobile phones.
Technical Specifications
- Model Number
- FWT2010-8-4001
- Number of Ports
- 8
- Connection Interface
- RJ-11 FXS
- Compliance Standards
- YD/T884-1996Europe Communication Standards
Key Features
Core Functionality
- DTMF detector in RJ-11
- Precise reverse polarity
- Caller ID (DTMF, ONE RING)
- Second dial tone
- Add prefixed IP number to dial
- Base station rotation
LED Indicators
Hook On/OffTalkingSignal IntensityPower On/Off
Advanced Settings
Advanced Optional Functions
- Bar incoming calls
- Lock SIM card
- Change IMEI number
- Setting 10 groups aliasing
- Setting dial-up delay time
- Set waiting time of dialing out
- Setting 10 group of forbidden dial numbers
