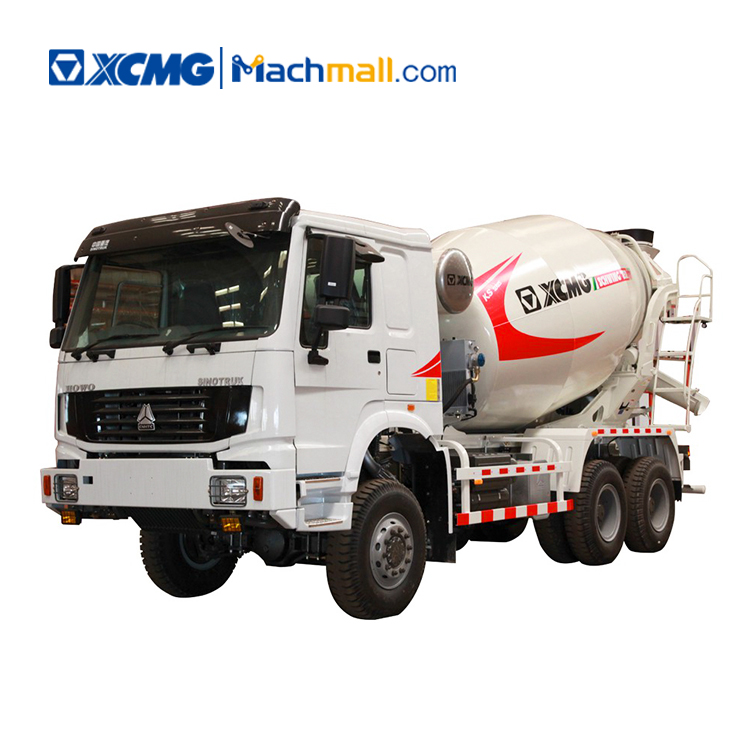

8 m3 Concrete Mixer Truck
This concrete mixer truck has an 8 m3 mixing drum capacity. It utilizes integrated modularization design for optimal system performance.
Technical Specifications
Overview
High-Efficiency Concrete Mixing Solution

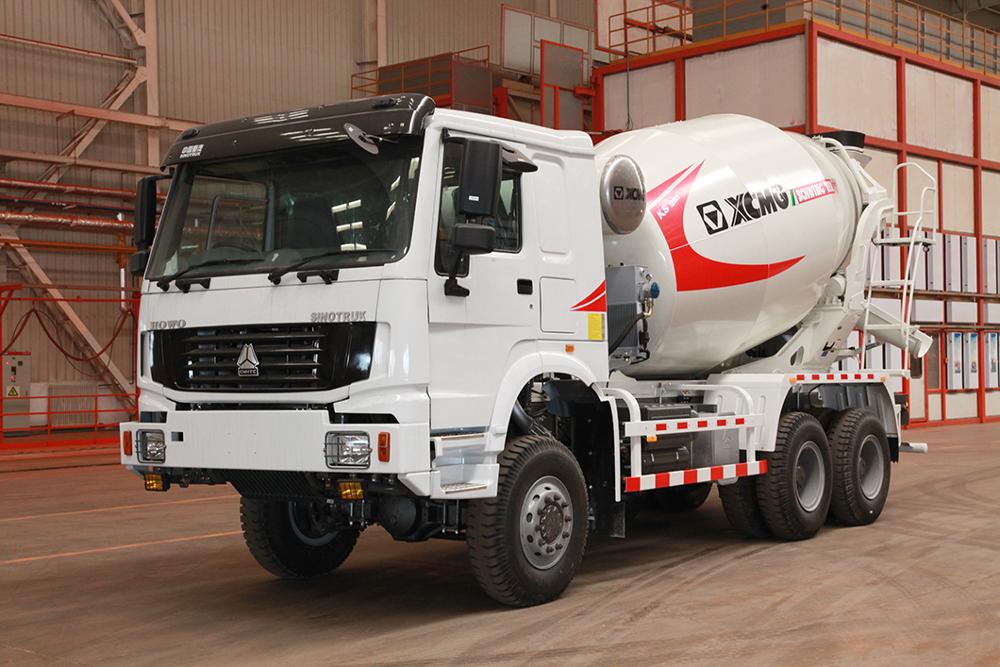

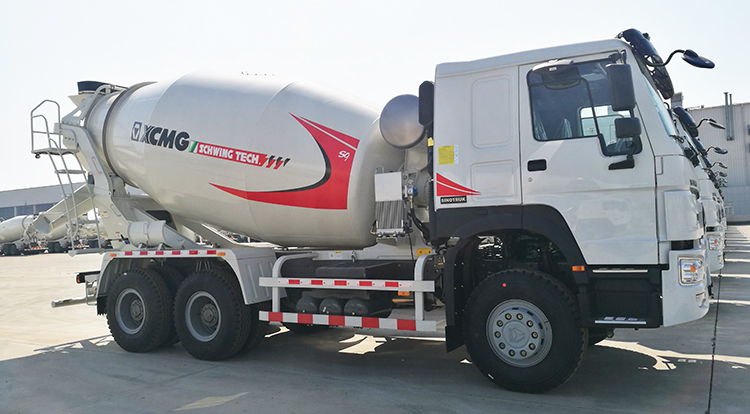

The G08K concrete mixer truck features an optimized integrated modular design for superior mixing performance. Equipped with advanced double-log spiral technology, it ensures uniform concrete consistency and prevents segregation during transport. With a robust 8 cubic meter capacity and a reliable hydraulic system, it is engineered for consistent quality and durability on small to medium-sized construction sites.
Technical Specifications
Mixing Drum Capacity
8 m3
Capacity
Weight Parameters
| Metric | Value | Unit |
|---|---|---|
| Curb weight | 14,000 | kg |
| Maximum total weight | 25,000 | kg |
- Outline Dimensions
- 8935 × 2500 × 3890 mm
Chassis Details
- Chassis Model
- ZZ1257N3641W
- Driving Configuration
- 6×4
- Steering Position
- Left Hand Drive
Key Features
Hydraulic System Compatibility
- ZF
- Rexroth
- Bonfiglioli
- PMP
- TOP
- Advanced Technologies
- Double log spiral technologyContinuous trace mixingVariable lift angleIntegrated modular design
