Technical Specifications
Overview
Robust Mobile Surveillance

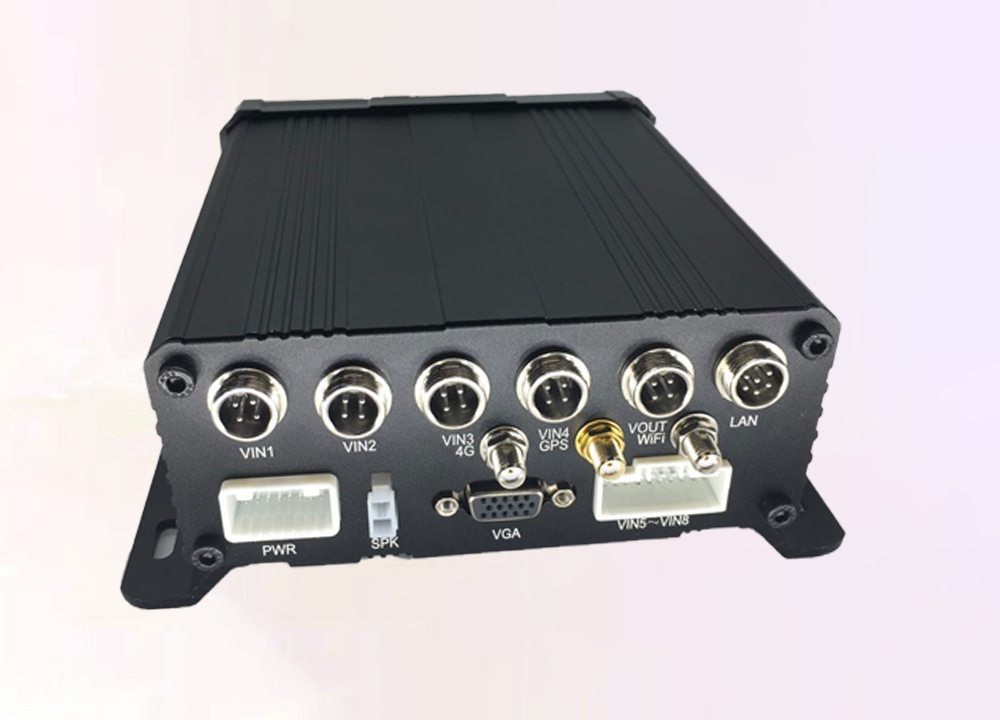

This 8-channel Mobile Digital Video Recorder is engineered for professional fleet management and mobile surveillance applications. It supports high-definition AHD and IP camera inputs, ensuring comprehensive coverage with advanced H.265/H.264 video coding. Designed for reliability in demanding environments, the unit features dual GPS/BDS positioning, wireless 4G/WiFi transmission, and rugged storage options including TF cards and HDD/SSD support.
Technical Specifications
- Video Input Channels
- 8 CH
- Supported Resolutions
- 1080P @ 15fps720P @ 30fps
- Video Coding
- H.265 / H.264 high profile dual stream
- Video Output
- 1 CH D1 + 1 CH VGA
Connectivity & Positioning
Positioning Accuracy
2.5 m
Position Accuracy
0.1 m/s
Speed Accuracy
- Wireless Options
- 4G3GWiFi
Storage & Interfaces
Storage Capacity
- TF Card (up to 256GB)
- HDD/SSD (1TB/2TB)
Peripheral Interfaces
| Interface | Specification |
|---|---|
| LAN | 10/100Mbps 6-pin air connector |
| USB | 1 port |
| RS485 | 1 port |
| I/O | 4 inputs, 1 output |
Power & Environment
- Power Input
- DC 9V - 36V
- Operating Temperature
- -30°C to 70°C
- Storage Temperature
- -40°C to 85°C
- Humidity
- 93 %
Physical Dimensions
- Dimensions
- 167 x 142 x 62mm
