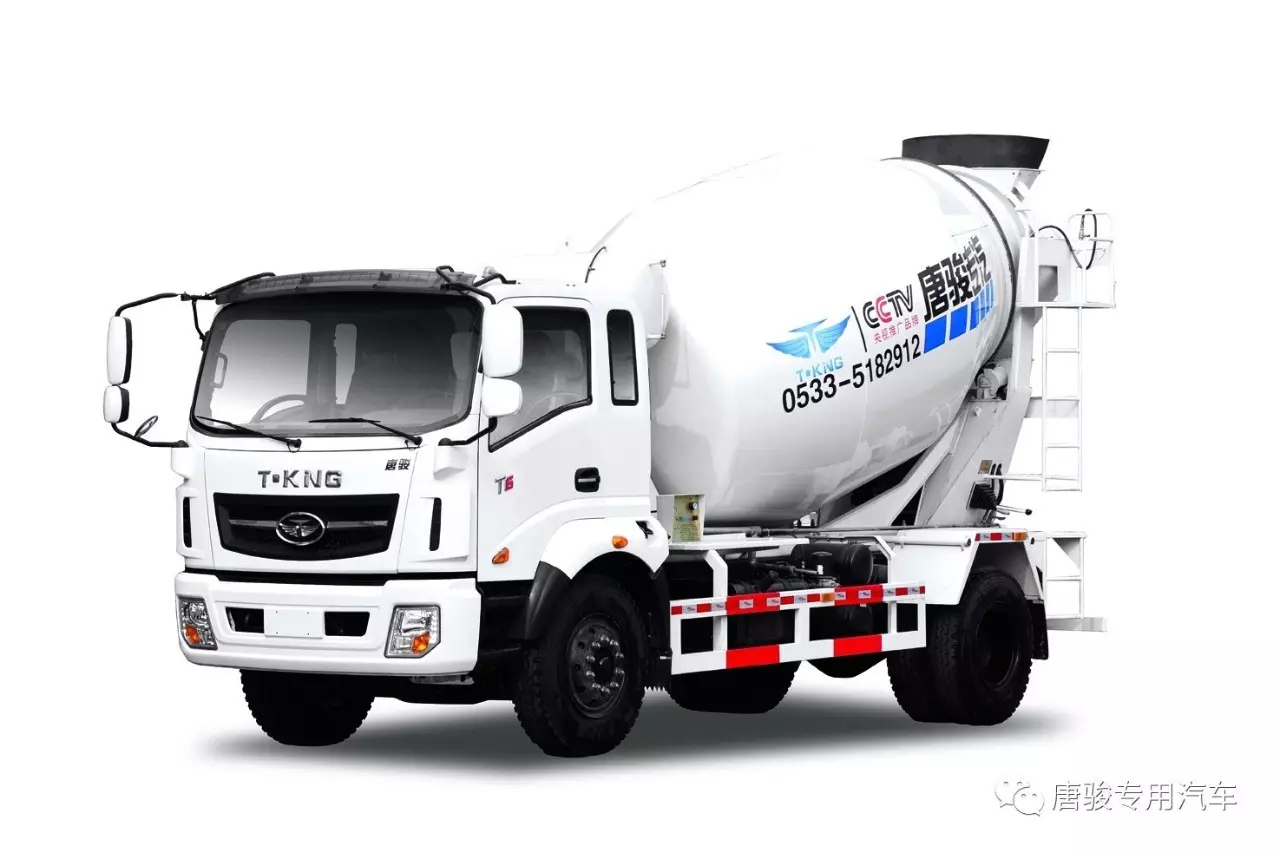

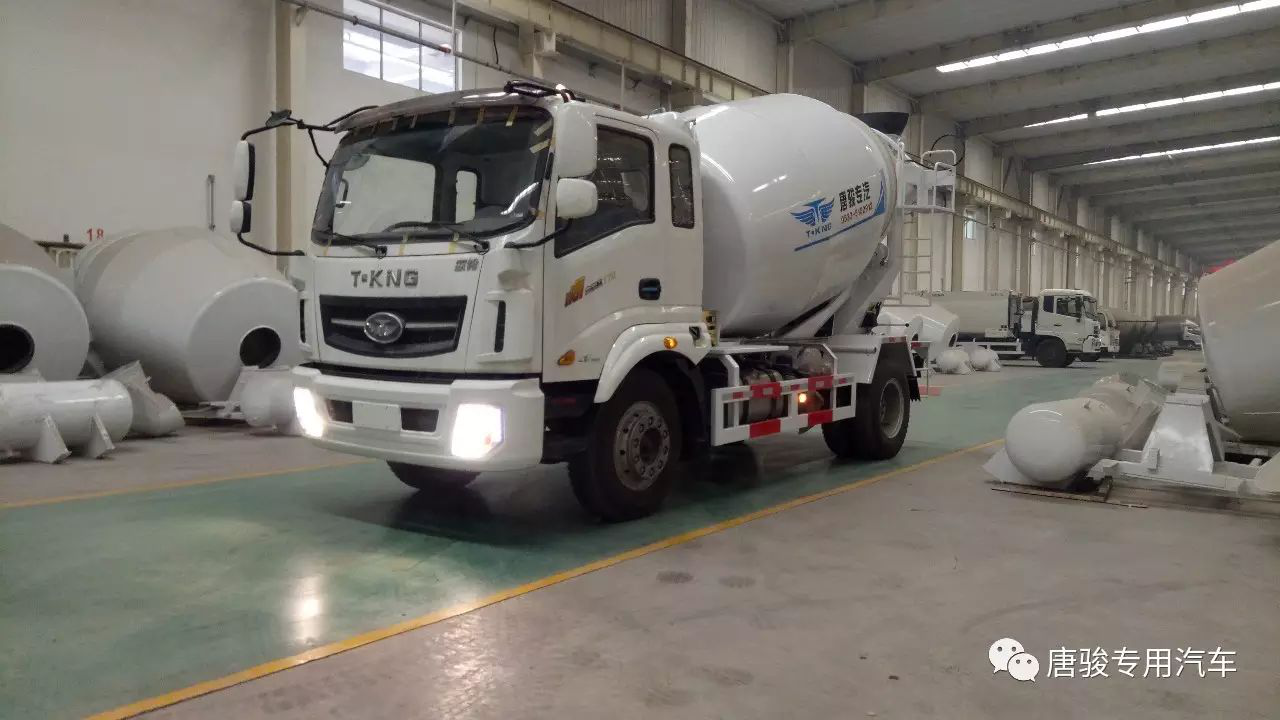

7m3 Concrete Mixer Truck
This 7m3 concrete mixer truck is designed for transporting and mixing concrete. It features a robust chassis and a high-performance mixing drum.
Technical Specifications
Overview
Versatile 7m³ Concrete Mixer Truck
This 7m³ mixer truck is engineered for high efficiency in demanding environments, including underground mines, high-speed rail construction, and rural infrastructure projects. Powered by a robust 4.2L diesel engine, it delivers reliable performance with a grant dynamic volume of 6m³. Its compact design and optional Right-Hand Drive (RHD) configuration make it an ideal solution for diverse international construction needs.
Key Performance Metrics
Performance Highlights
7 m³
Drum Capacity
90 kW
Max Power
2 m³/min
Loading Speed
1.5 m³/min
Unloading Speed
Engine & Powertrain
Emission Standard
Euro IV
- Engine Model
- YC4D120-45
- Displacement
- 4.214 L
- Maximum Torque
- 380 N.m
- Transmission
- WLY high and low speed
Chassis & Dimensions
- Overall Size (L*W*H)
- 7040 x 2300 x 3480 mm
- Wheelbase
- 3700 mm
- Cabin Width
- 2100 mm
- Tire Options
- 9.00-209.00R20
Operational Capabilities
Mixing Specifications
| Parameter | Value |
|---|---|
| Roller Speed | 3.9 r/min |
| Grant Dynamic Volume | 6 m³ |
| Approach Angle | 20° |
| Departure Angle | 25° |
Safety & Systems
Braking System
- Driving Brake: Air brake
- Parking Brake: Automatically air-cut brake
- Anti-lock Braking System (ABS)
- Steering
- Hydraulic power steering
Configurations
- Available Configurations
- RHD OptionalAC OptionalFree Maintenance Battery
