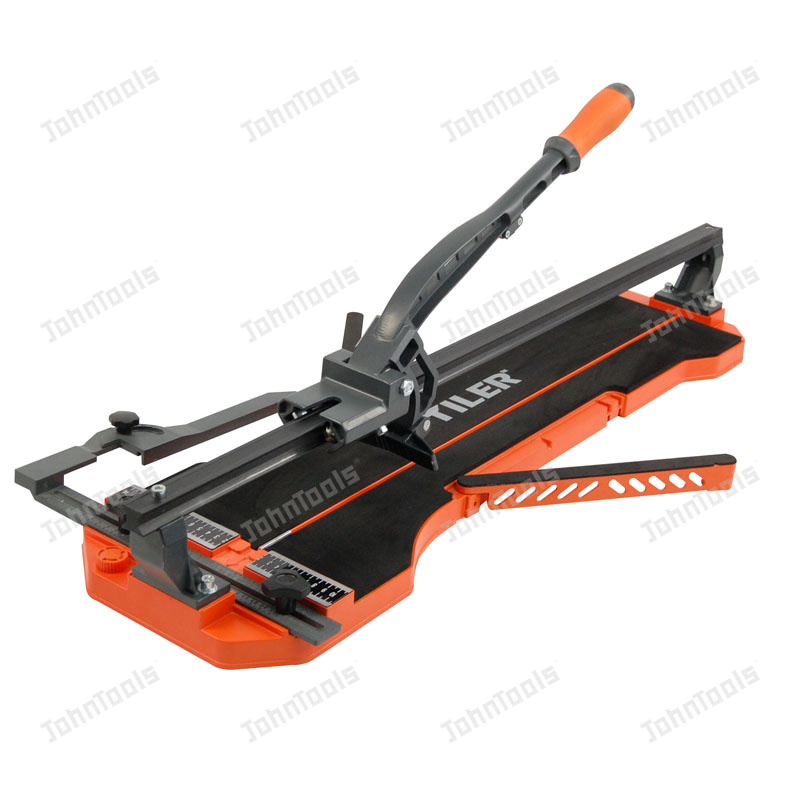

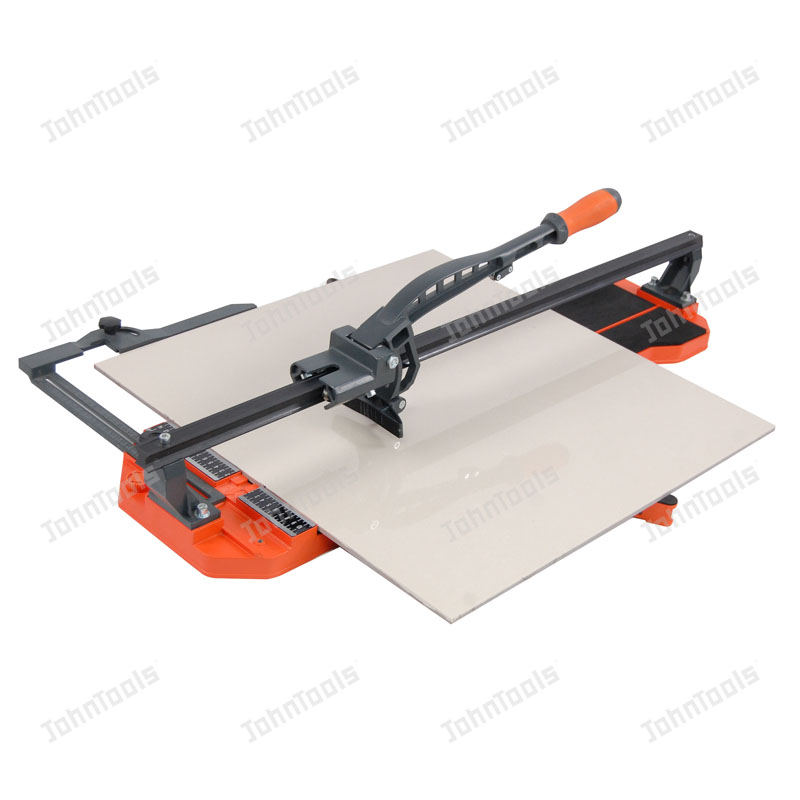

730mm Manual Tile Cutter with Tungsten Carbide Wheel
This manual tile cutter has a maximum cutting length of 730mm and can handle tiles up to 16mm thick. It features a tungsten carbide cutting wheel and a die-cast aluminum base for stability and precise cuts.

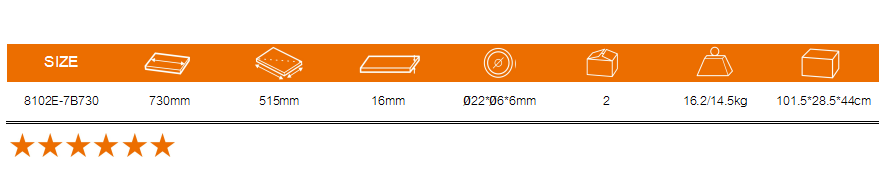

Technical Specifications
Overview
Professional 730mm Manual Tile Cutter
This professional-grade manual tile cutter is engineered for precision and durability, featuring a robust aluminum die-casting base and a high-performance tungsten carbide wheel. Designed to handle tiles up to 730mm in length and 16mm in thickness, it offers smooth scoring thanks to built-in roller bearings and an ergonomic handle. Whether working with ceramic, porcelain, or mosaic tiles, this tool provides the stability and visibility required for high-quality B2B flooring and wall installations.
Performance Metrics
Cutting Capabilities
730 mm
Max Cutting Length
16 mm
Max Tile Thickness
515 mm
Cutting Width
Technical Design
- Base Construction
- Aluminium die-casting for maximum rigidity and precision
- Scoring System
- Sliding bar with built-in roller bearings for smooth operation
- Cutting Wheel Dimensions
- Ø22 * Ø6 * 6mm
Features
Product Features
- Coated tungsten-carbide cutting wheel with bearings
- Human-engineering ergonomic handle
- Adjustable aluminum gauge (0° to 60°)
- Extension arms for large tile support
- Lockable breaking device
- Integrated spare blade storage
Applications
- Compatible Tile Types
- CeramicPorcelainMosaicsLarge Format Tiles
Logistics & Packaging
Shipping Specifications
| Parameter | Value |
|---|---|
| Quantity per Carton | 2 Units |
| Gross/Net Weight | 16.2 / 14.5 kg |
| Package Dimensions | 101.5 * 28.5 * 44 cm |
