70HP 4WD Wheel Tractor
This 70HP 4WD wheel tractor is designed for agricultural applications. It features a robust engine, a 80L fuel tank and a durable transmission system.
Technical Specifications
Overview
Robust Agricultural Performance

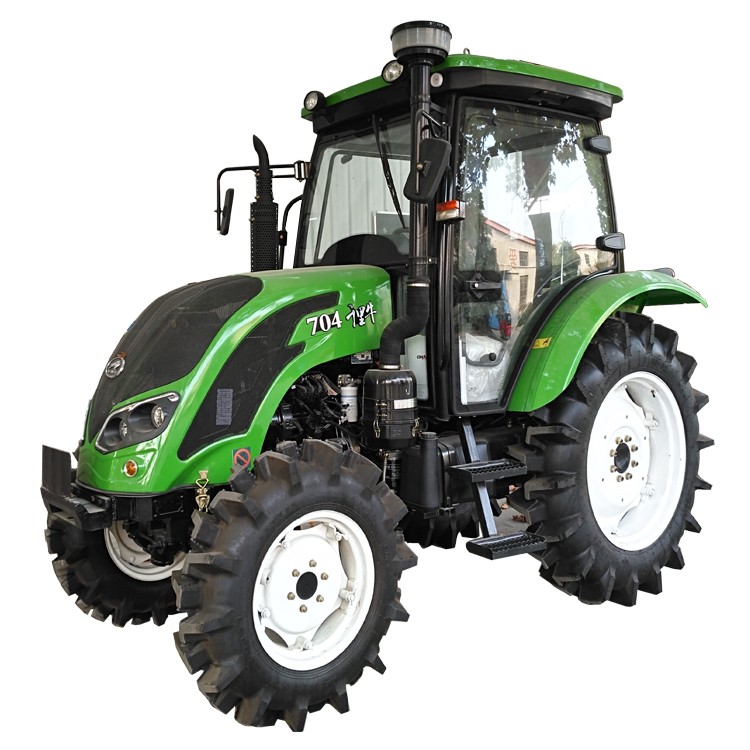

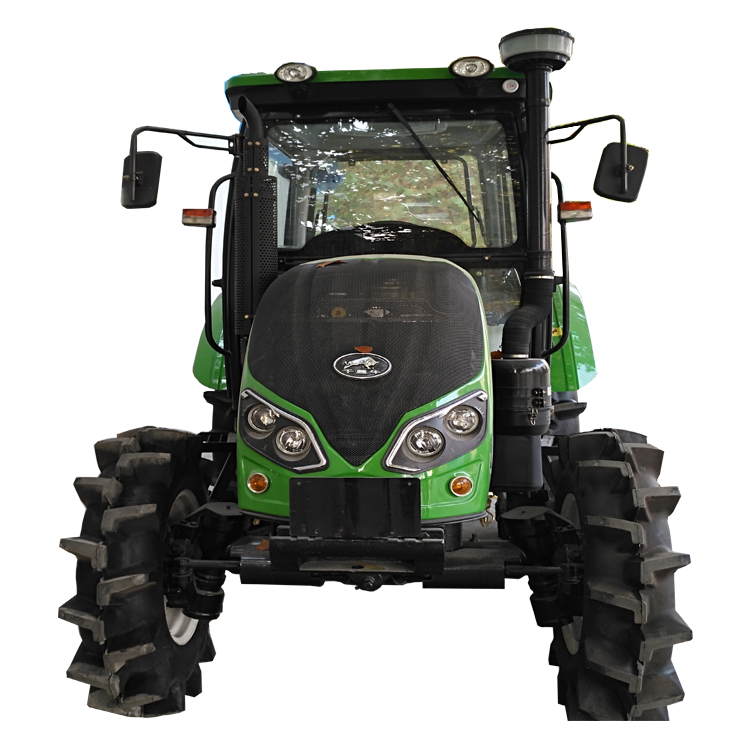

The QLN704 is a powerful 70HP 4WD wheel tractor engineered for diverse farming tasks including plowing, tilling, and heavy hauling. It features a reliable vertical water-cooled engine and a versatile F12+R12 transmission system to ensure optimal efficiency in the field. Designed with operator comfort in mind, it includes a well-equipped cabin and independent dual-function clutch for precise implement control.
Key Metrics
Performance at a Glance
70 HP
Engine Power
80 L
Fuel Capacity
2,540 kg
Dry Mass
540 rpm
PTO Speed
Dimensions
Tractor Dimensions
| Parameter | Value (mm) |
|---|---|
| Length | 3,980 |
| Width | 1,635 |
| Height | 2,400 |
| Front Wheel Tread | 1,400 |
| Rear Wheel Tread | 1,300 |
| Min. Ground Clearance | 325 |
Engine
Engine Configuration
- Type: Vertical, 4-stroke
- Cooling: Water Cooled
- Injection: Direct Injection
- Cylinder Count: 4
Technical Specs
- Drive & Transmission
- 4WDF12+R12 Transmission10-inch Dual-Function ClutchIndependent Clutch
- Linkage
- III Rear Mount 3-point Linkage
