Technical Specifications
Overview

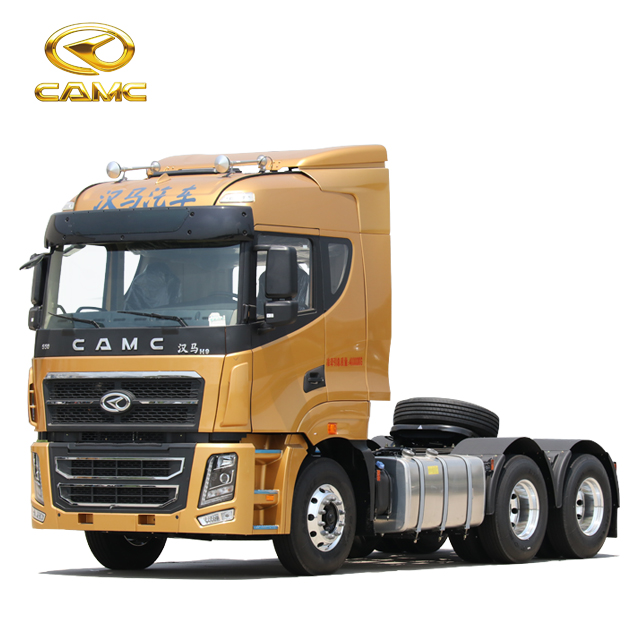

Heavy-Duty 6x4 Prime Mover
This heavy-duty 6x4 tractor unit is engineered for demanding long-haul transportation and heavy-load logistics. Featuring a robust chassis design and a powerful 550hp engine, it delivers consistent performance and reliability under challenging conditions. The high-roof flat floor cabin prioritizes driver ergonomics, offering a spacious interior equipped with modern comfort features to reduce fatigue during extended operations.
Performance Metrics
Key Performance Indicators
550 hp
Maximum Power
2,500 N.m
Maximum Torque
40,000 kg
Quasi-tow Mass
Vehicle Dimensions & Weight
Dimensions and Weight
| Parameter | Value |
|---|---|
| Wheelbase | 3200+1350 mm |
| Kerb Weight | 8805 kg |
| Gross Vehicle Weight (GVW) | 25000 kg |
| Overall Dimensions | 6940x2495x3300 mm |
Powertrain
Engine Specifications
- Type: Four-stroke, water-cooled, in-line, direct-injection
- Displacement: 12.8 L
- Cylinders: 6
- Bore x Stroke: 130x161 mm
- Max Rated Speed: 1800 rpm
- Emission Standard: Euro III
Cab & Comfort
- Cab Comfort Features
- High RoofAir ConditioningMP3 & RadioHydraulically Damped SeatAdjustable Steering WheelPower WindowsSleeper Berth
Chassis & Suspension
Chassis & Suspension
| Component | Specification |
|---|---|
| Front Axle Capacity | 7.5 T |
| Rear Axle Capacity | 16 T |
| Frame Type | U-profile parallel ladder with reinforced subframe |
| Front Suspension | 9 leaf springs with hydraulic shock absorbers |
| Rear Suspension | 12 leaf springs with bogie spring |
Safety & Braking
Safety Systems
ABSEngine Exhaust BrakeDual Circuit Air BrakeSpring Energy Parking Brake
