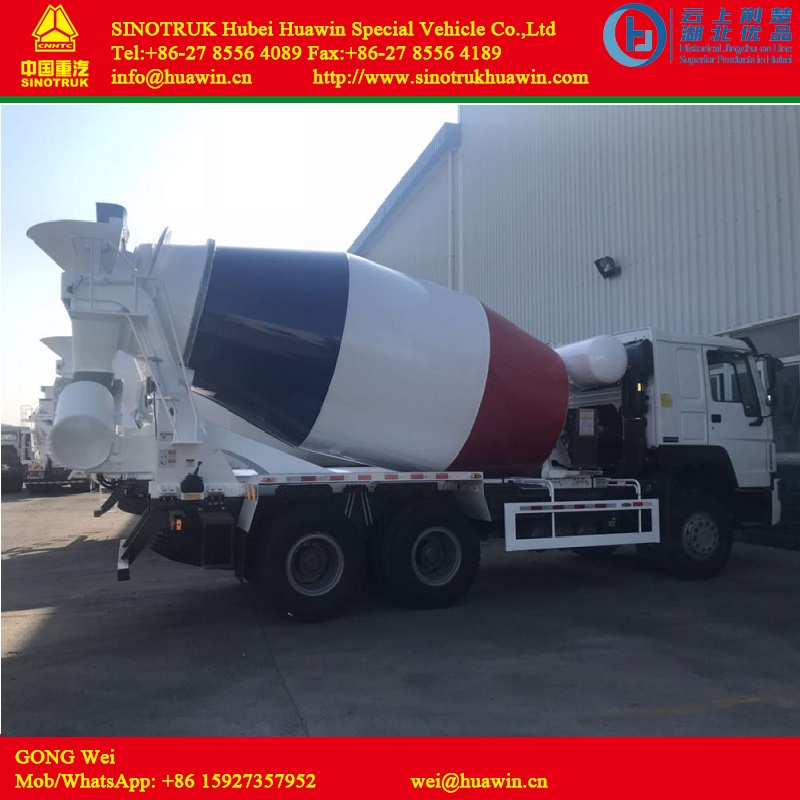

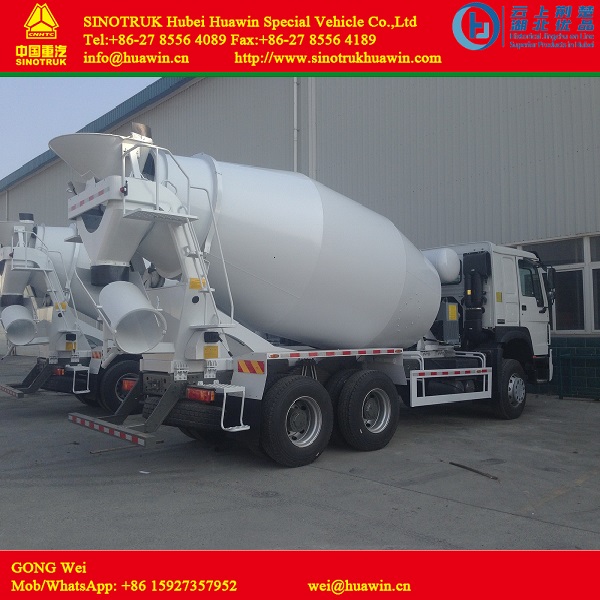

6x4 371 HP Concrete Mixer Truck
This concrete mixer truck is engineered for efficient transportation and mixing of concrete. Its 6x4 drivetrain ensures stability on various terrains, while its high-capacity mixing drum ensures consistent concrete quality.
Technical Specifications
Overview
Heavy-Duty Concrete Mixer Truck
This 6x4 concrete mixer truck is engineered for demanding construction environments, offering a robust chassis and a powerful 371 HP engine. Designed for both high-capacity material transport and consistent mixing, it features a durable drum system with volume options ranging from 8 to 14 cubic meters. With a 30-tonne loading capacity and specialized hydraulic components, this vehicle ensures reliable performance and timely delivery for large-scale infrastructure projects.
Chassis Specifications
Engine Power
371 HP
Engine Power
Axle Load Capacity
| Axle Type | Capacity |
|---|---|
| Front Axle | 9 |
| Rear Axle | 16 |
Emission Standard
Euro II
- Drivetrain Configuration
- 6x4
- Transmission
- 10 Forward & 2 Reverse gears
Mixer Specifications
Drum Volume Options
- 8 m³
- 10 m³
- 12 m³
- 14 m³
Drum Construction
| Component | Thickness |
|---|---|
| Body | 5 |
| Plate | 6 |
Performance & Logistics
- Total Loading Capacity
- 30 tonnes
- Warranty Coverage
- 1 year or 100,000 km (whichever comes first)
- Production Lead Time
- 50 days
