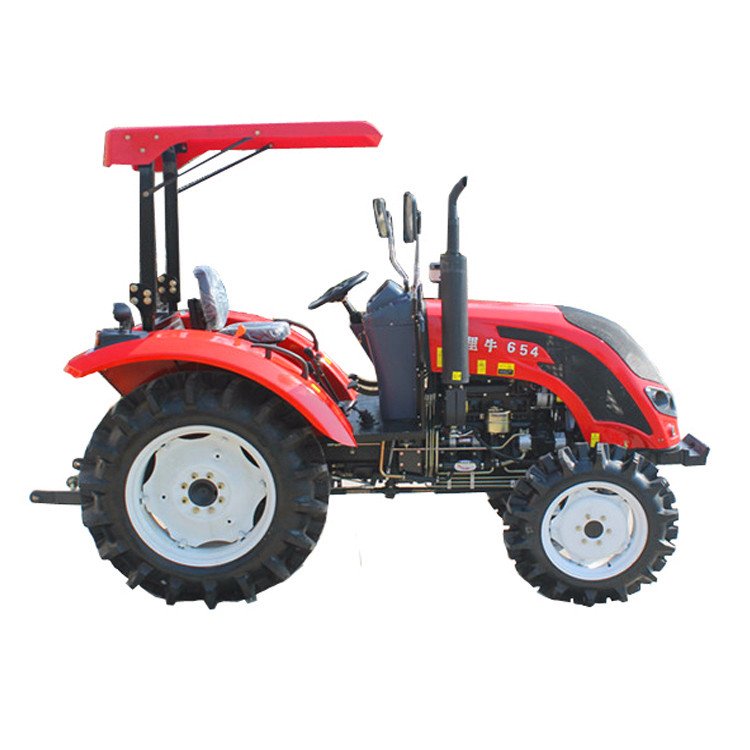

65 HP 4WD Farm Tractor
This 65 HP farm tractor features a YTO diesel engine and a F12+R12 shuttle shift. With a 10-inch double-acting clutch, it offers reliable performance for plowing, tilling, and hauling.
Technical Specifications
Overview
Robust 65 HP Agricultural Tractor
This 65 HP 4WD tractor is engineered for high-performance agricultural tasks including plowing, tilling, and heavy-duty hauling. It features a reliable direct-injection, water-cooled diesel engine and a versatile F12+R12 shuttle shift transmission for smooth operation. With a focus on durability and operator efficiency, this model includes an 80-liter fuel tank and a dual-function 10-inch clutch to handle demanding field conditions with ease.
Performance Metrics
Key Performance Metrics
65 HP
Engine Power
80 L
Fuel Tank Capacity
2,540 kg
Dry Mass (with cab)
Engine Specifications
Engine Technical Data
| Feature | Specification |
|---|---|
| Cylinder Count | 4 |
| Cooling System | Water Cooled |
| Injection Type | Direct Injection |
| Stroke Type | 4-stroke |
Transmission & PTO
Drive & PTO System
- Gearbox: F12 + R12 Shuttle Shift
- Clutch: 10-inch Double Acting Independent Dry Clutch
- PTO Speed: 540/760 RPM
- Linkage: III Rear Mount 3-point Linkage
Dimensions & Tires
Dimensions & Ground Clearance
- Overall Dimensions: 3980 x 1635 x 2400 mm
- Front Wheel Tread: 1400 mm
- Rear Wheel Tread: 1300 mm
- Minimum Ground Clearance: 325 mm
Tire Configuration
Front: 8.3-20Rear: 12.4-38
