60mm 0.4kW AC Servo Motor
This 60mm servo motor delivers 0.4kW of power and operates at 220V. It is designed for precise motion control applications, including CNC machines and robotics.
Technical Specifications
Product Overview

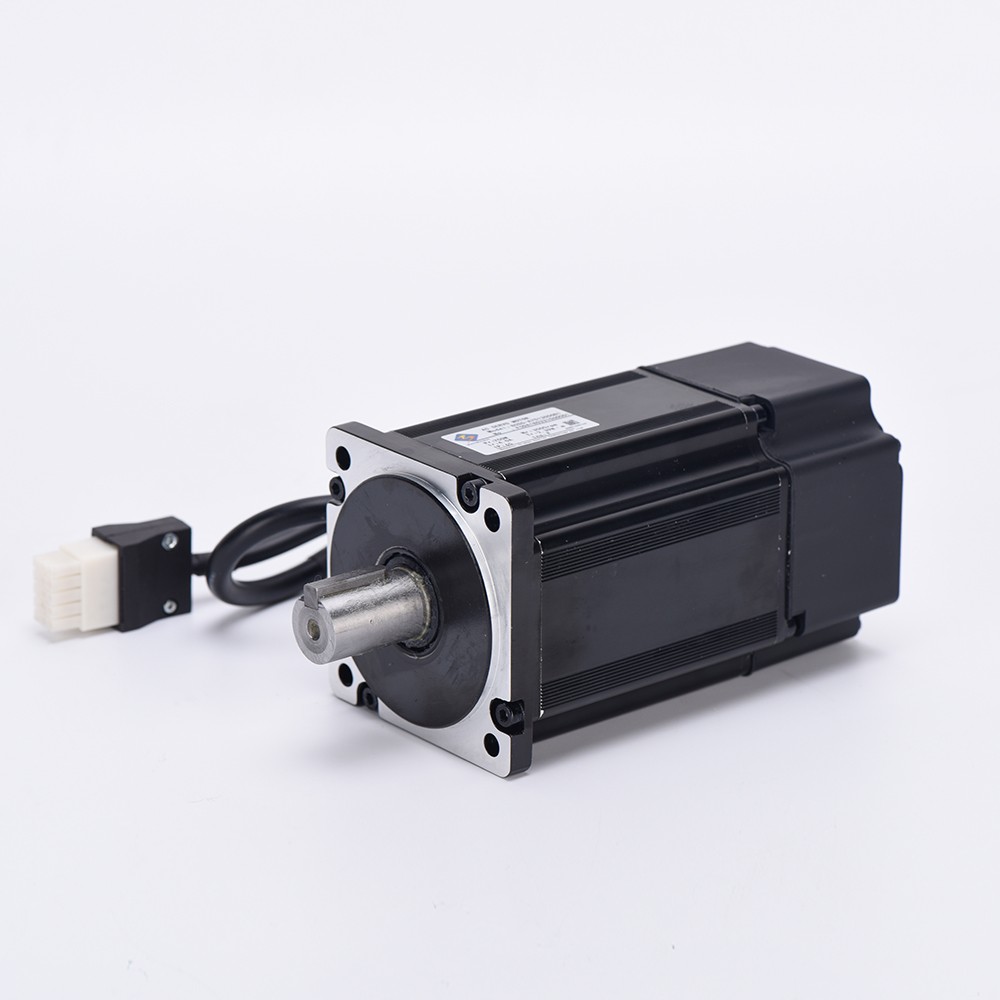

High-Precision 60mm Servo Motor
This 60mm frame servo motor delivers a power output of 0.4kW at 220V, specifically engineered for high-performance motion control environments. It features a compact, short-body design that enables seamless integration into space-constrained applications like robotics and precision CNC machinery. With support for multiple encoder types, this motor provides the reliability and dynamic responsiveness required for demanding industrial automation.
Key Performance Metrics
Core Specifications
0.4 kW
Rated Power
1.27 Nm
Rated Torque
3,000 rpm
Rated Speed
6,000 rpm
Max Speed
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 220V AC |
| Rated Current | 3.2 A |
| Max Current | 9.6 A |
| Torque Constant | 0.396 Nm/A |
| Voltage Constant | 27.0 V/krpm |
Mechanical and Encoder Details
- Frame Size: 60mm
- Pole Pairs: 5
- Rotor Inertia (No Brake): 0.27x10⁻⁴ kg·m²
- Rotor Inertia (With Brake): 0.28x10⁻⁴ kg·m²
- Supported Encoders: Absolute, Incremental, Rotary
Application Areas

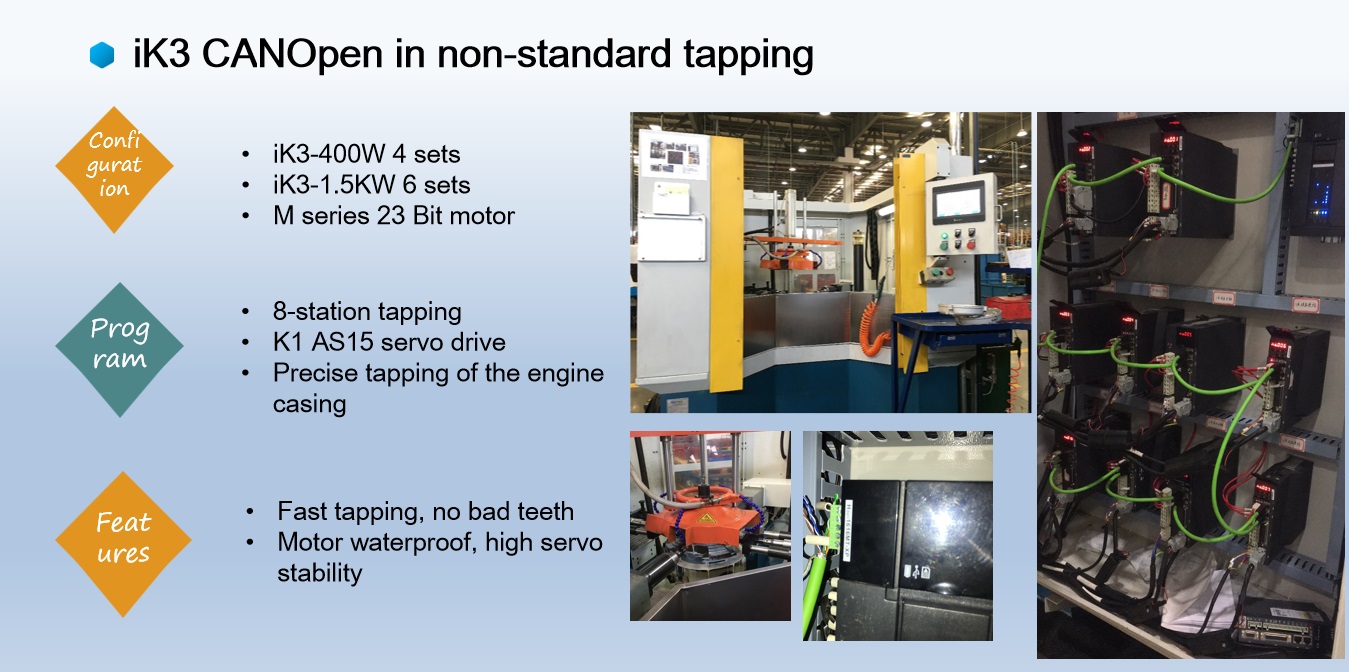

- Industry Applications
- Jointed RobotsPicking RobotsHigh-End Electronic EquipmentCNC MillingEngraving Systems
