Technical Specifications
Overview

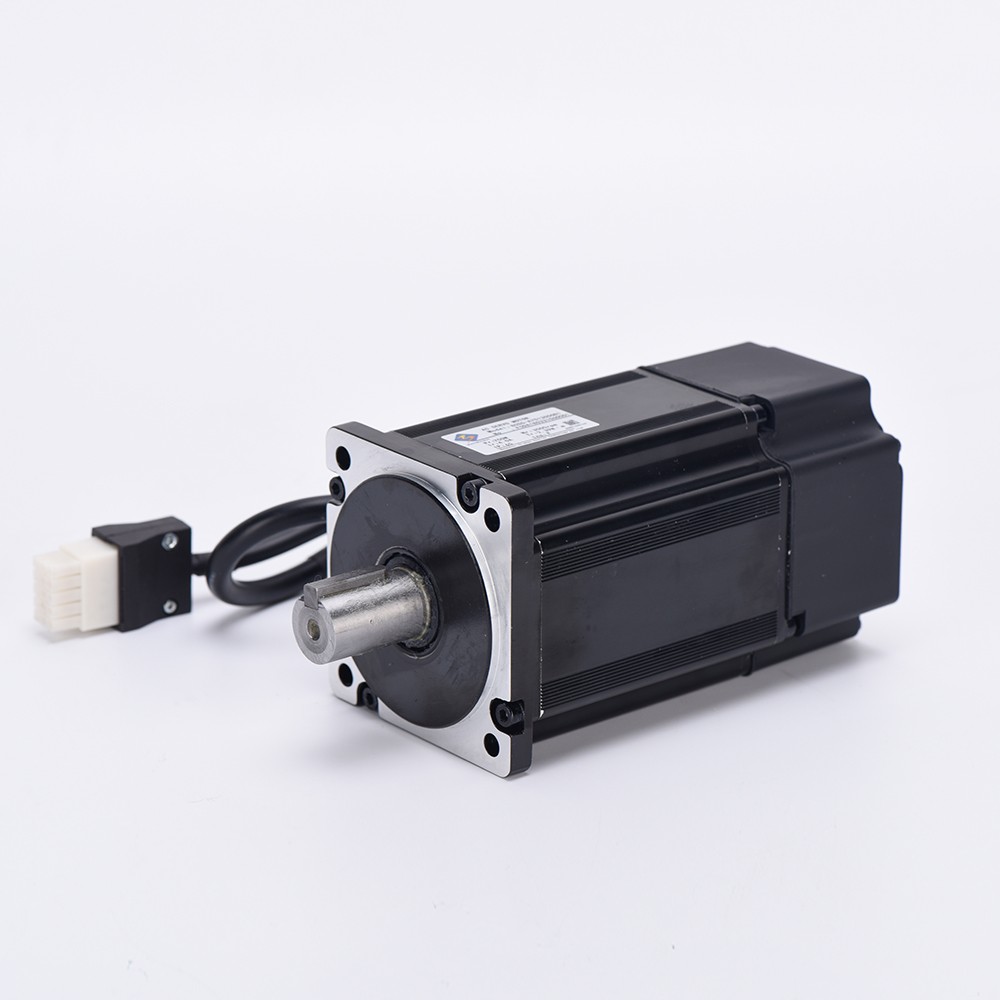

High-Performance Servo Motor
This precision servo motor is engineered for high-demand motion control applications, offering reliable performance with a compact 60mm frame size. Designed for efficiency, it delivers 0.2kW of power and operates at 220V, making it an ideal choice for advanced robotics, CNC machining, and automated electronic assembly. The unit features robust construction and versatile encoder configuration options to ensure smooth, accurate operation in professional industrial environments.
Technical Specifications
Performance Metrics
0.2 kW
Rated Power
220 V
Rated Voltage
3,000 RPM
Rated Speed
0.64 N.m
Rated Torque
Mechanical and Electrical Data
| Feature | Specification |
|---|---|
| Rated Current | 1.5A |
| Insulation Class | B |
| Protection Class | IP65 |
| Encoder Options | Absolute, Incremental, Rotary |
| Frame Size | 60mm |

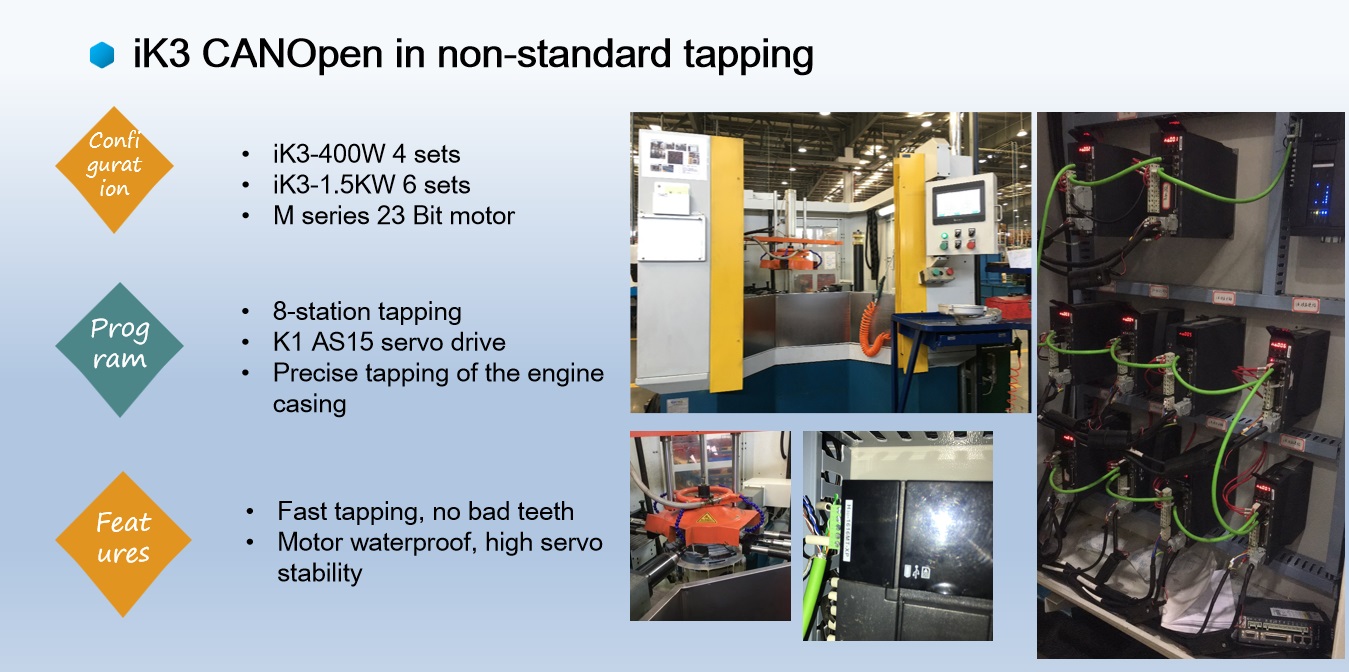

Application Areas
- Typical Applications
- Jointed RobotsPicking RobotsHigh-End Electronic EquipmentMilling CNCEngraving CNC
