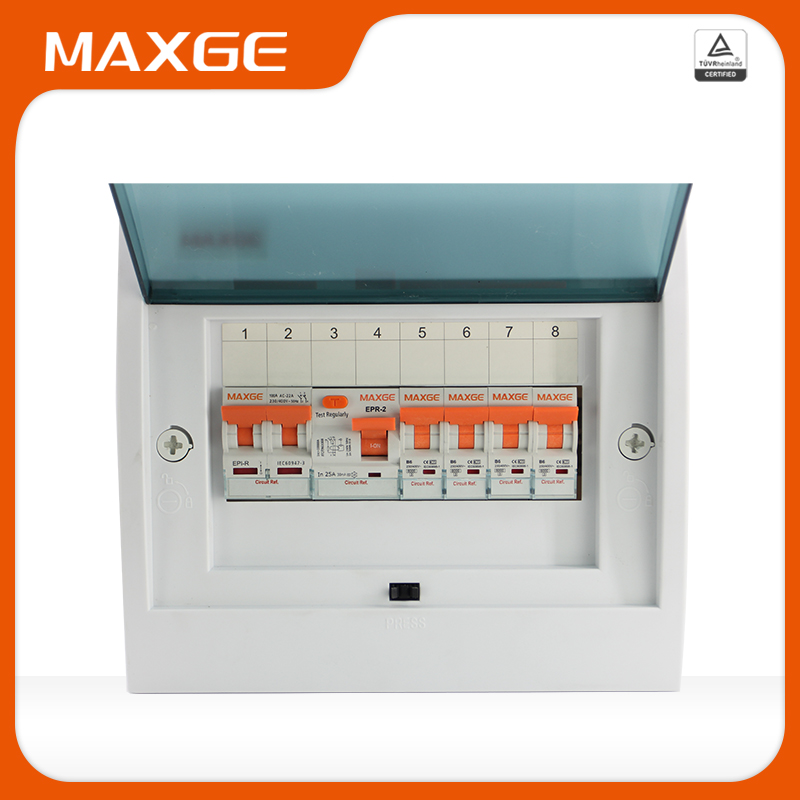

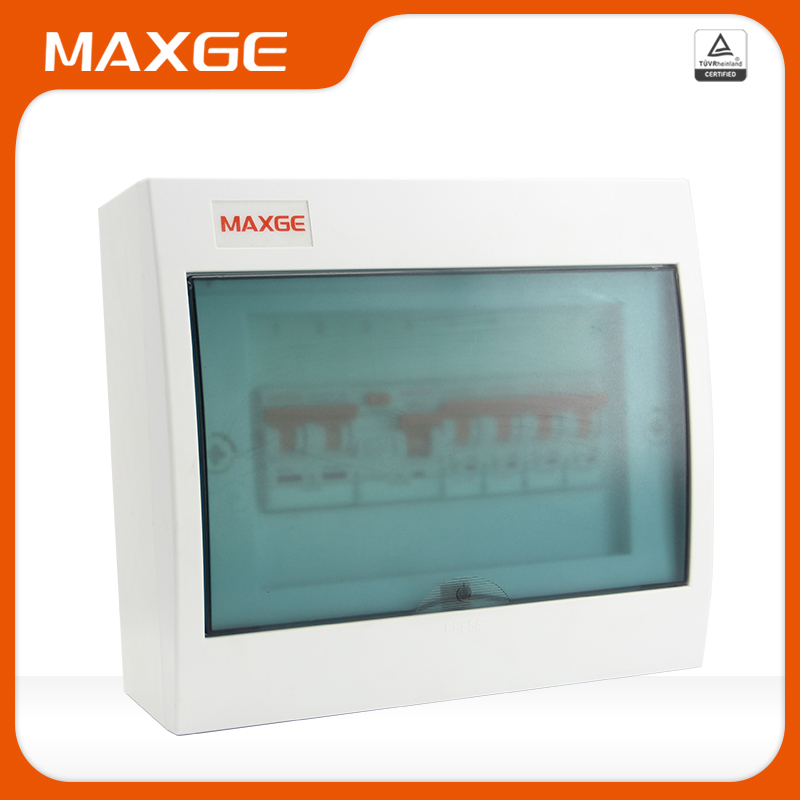

6-36 Module Lighting Distribution Box
This lighting distribution box is a basic power distribution device integrating a residual current action protector and air circuit breaker. It facilitates centralized control of power supply and provides protection against grounding, overload, and short circuits.
Technical Specifications
Overview
Centralized Power Control
This lighting distribution box serves as an essential power distribution device, designed to combine residual current action protectors and air circuit breakers for streamlined home power management. It provides comprehensive protection functions, including grounding, overload, and short circuit prevention, while featuring internal busbars for neutral and protective grounding wires. Suitable for various low-voltage power distribution systems (TT, TN, IT), this unit is ideal for residential, commercial, and industrial terminal electrical applications.
Technical Specifications
Degree of Protection
Rated Current
- 63
- 100
- 125
- Compliance Standard
- IEC 60439-3
- Mounting Type
- SurfaceFlush
- Fire Resistance
- 650°C/30s
Configuration
Module Counts
- 6
- 8
- 12
- 18
- 24
- 36
Row Configuration
| Modules | Rows |
|---|---|
| 6, 8, 12, 18 | Single Row |
| 24, 36 | Double Row |
Construction
Housing Materials
| Component | Material |
|---|---|
| Body | PS or ABS |
| Door | PC |
- Available Colors
- White (RAL 9003)Grey (RAL 7035)
Environmental
Operating Temperature Range
- Storage Temperature
- -40 to +75°C
- Max Humidity
- 95 %
