Technical Specifications
Product Overview

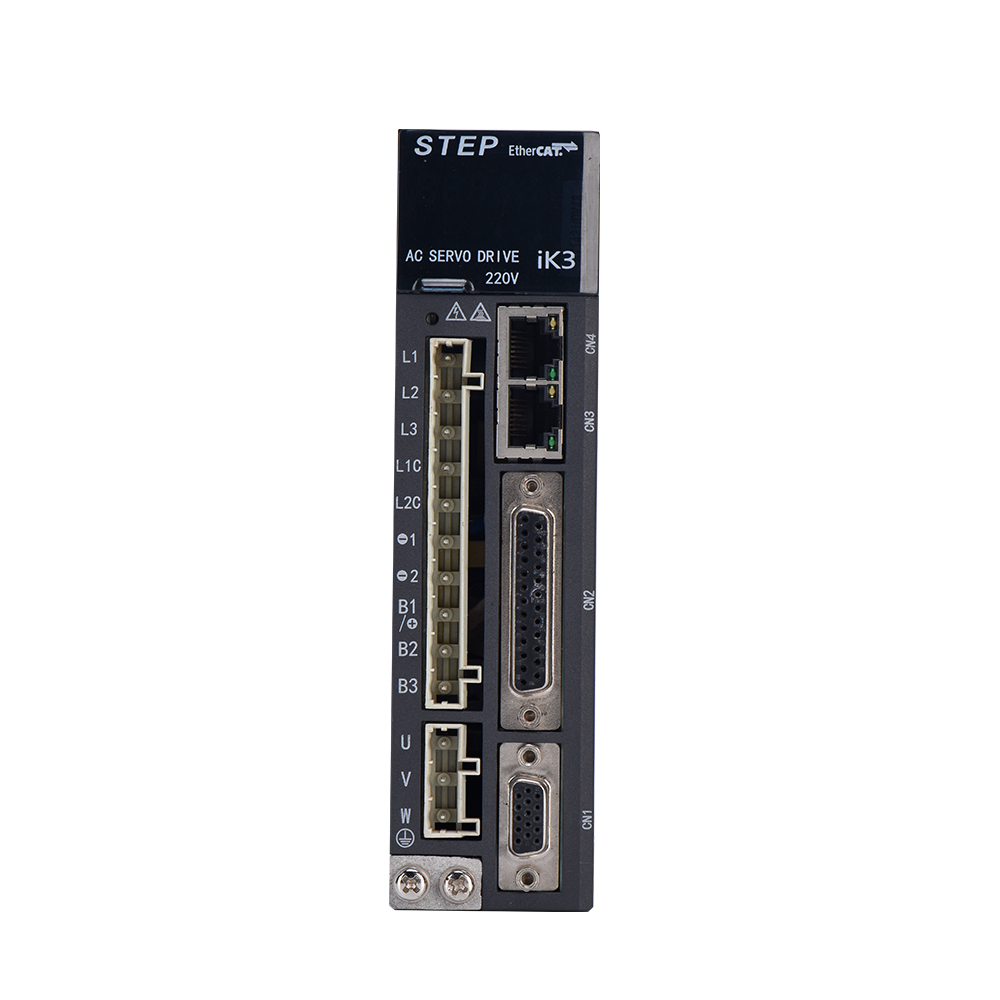

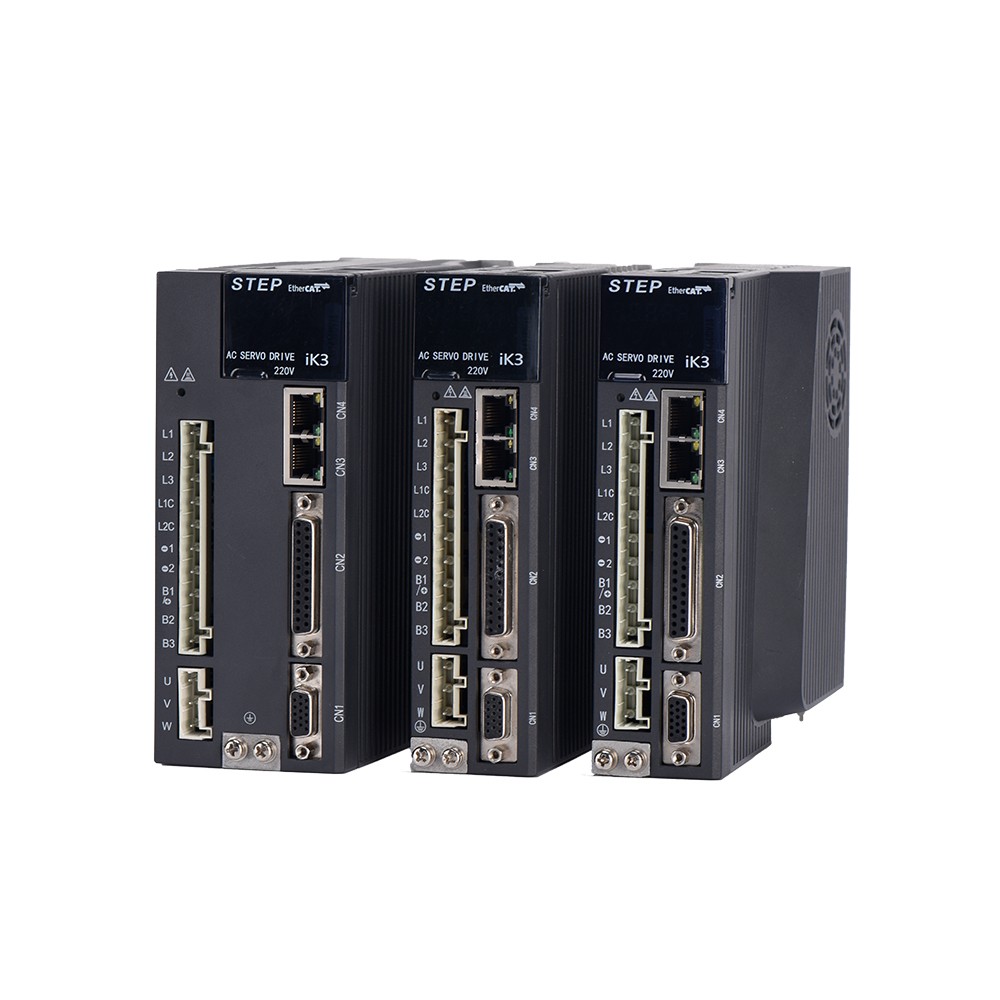

High-Performance Universal Bus Servo Drive
This 5kW universal bus servo drive is engineered for high-precision industrial automation, featuring EtherCAT communication for real-time, multi-axis synchronization with accuracy below 0.1us. It utilizes advanced control algorithms, including active resonance suppression and groove torque compensation, to ensure optimal performance across diverse mechanical structures. Built for reliability, the unit includes three-proof coating for environmental resistance and international safety functions (SS1/SS2/SBC) to meet demanding industrial requirements.
Performance Metrics
Performance Capabilities
2.5 kHz
Current Loop Frequency Response
1.6 kHz
Speed Loop Frequency Response
0.1 us
Bus Synchronization Accuracy
Technical Specifications
Power Ratings
| Parameter | Specification |
|---|---|
| Rated Power | 5kW |
| Main Power Input | 220V (-15~+10%, 50~60Hz) |
| Control Power Input | 220V Single-phase AC |
- Communication Protocols
- EtherCATCANopen
Environmental Requirements
Environmental Limits
- Operating Temperature: 0 to 45°C
- Storage Temperature: -20 to 65°C
- Operating Humidity: 20-85% RH (non-condensing)
- Altitude: Below 1000m
- Vibration Resistance: 5.8 m/s² (0.6G) at 10-60Hz
Safety & Features
Safety Certifications & Functions
SS1SS2SBCThree-proof paintActive resonance suppression
