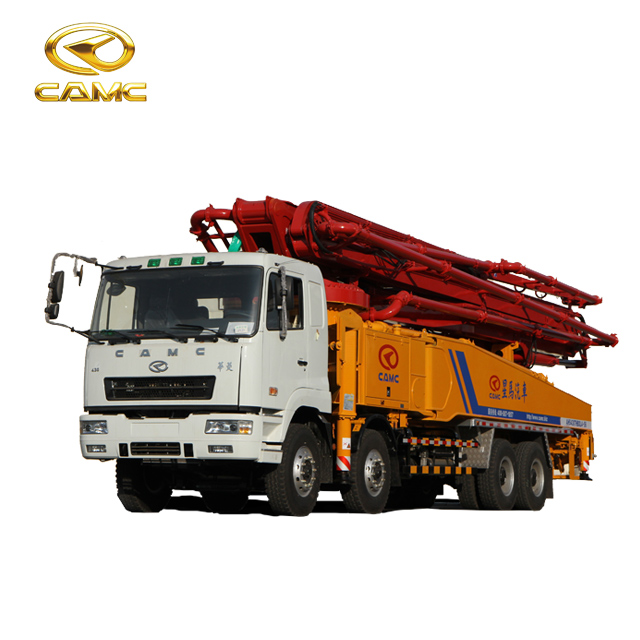

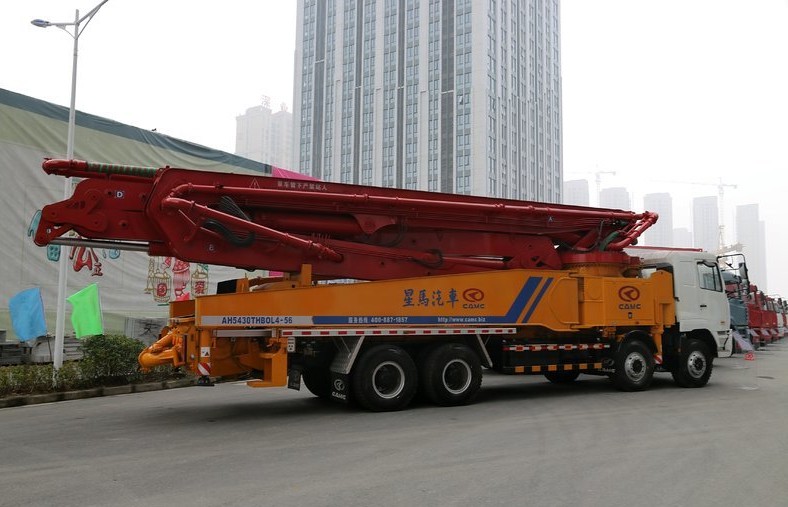

56-Meter Concrete Pump Truck
This 56-meter concrete pump truck is designed for efficient and reliable concrete placement. It features a robust chassis and a versatile boom configuration.
Technical Specifications
Overview
High-Reach Concrete Pumping Solution
This 56-meter concrete pump truck is engineered for large-scale construction projects, offering exceptional vertical and horizontal reach. It features a robust 6-section boom configuration and a high-efficiency pumping system capable of delivering 150 cubic meters per hour. Designed for reliability and precision, the unit includes advanced hydraulic controls, automatic lubrication, and versatile remote operation capabilities to maximize site productivity.
Pumping System
Performance Metrics
150 m³/h
Max Theoretical Throughput
9 MPa
Max Outlet Pressure
22 min⁻¹
Pumping Frequency
Technical Specifications
| Feature | Value |
|---|---|
| Bucket Capacity | 550 L |
| Feeding Height | 1450 mm |
| Distribution Valve | S tube valve |
| Concrete Cylinder | Φ260×2200 mm |
| Hydraulic Cooling | Air cooling |
Boom and Structure
Boom Reach Capabilities
55.6 m
Max Distribution Height
51.1 m
Max Distribution Radius
42.8 m
Max Distribution Depth
Structural Details
- Structure form: 56-RZ
- Arm sections: 6
- Turning Angle: 365°
- Pipe diameter: 125 mm
- End hose length: 3000 mm
Chassis and Vehicle
- Vehicle Dimensions
- 14380 x 2495 x 3990 mm
- Drive Configuration
- 8x4
- Engine Options
- CM6D28.430.40CM6D28.460.40CM6D28.480.406WF1D6WG1G
Components
Core Components
| Component | Manufacturer/Type |
|---|---|
| Main oil pump | German Rexroth (A4VG180+125) |
| Stand pump | German Rexroth (A7VO55) |
| Auxiliary box | German Stiebel (4496.50) |
| Multitandem valve | German HAWE (PSV) |
| Balance valve | German HAWE (LHDV) |
