Technical Specifications
Overview
High-Performance Diesel Engine

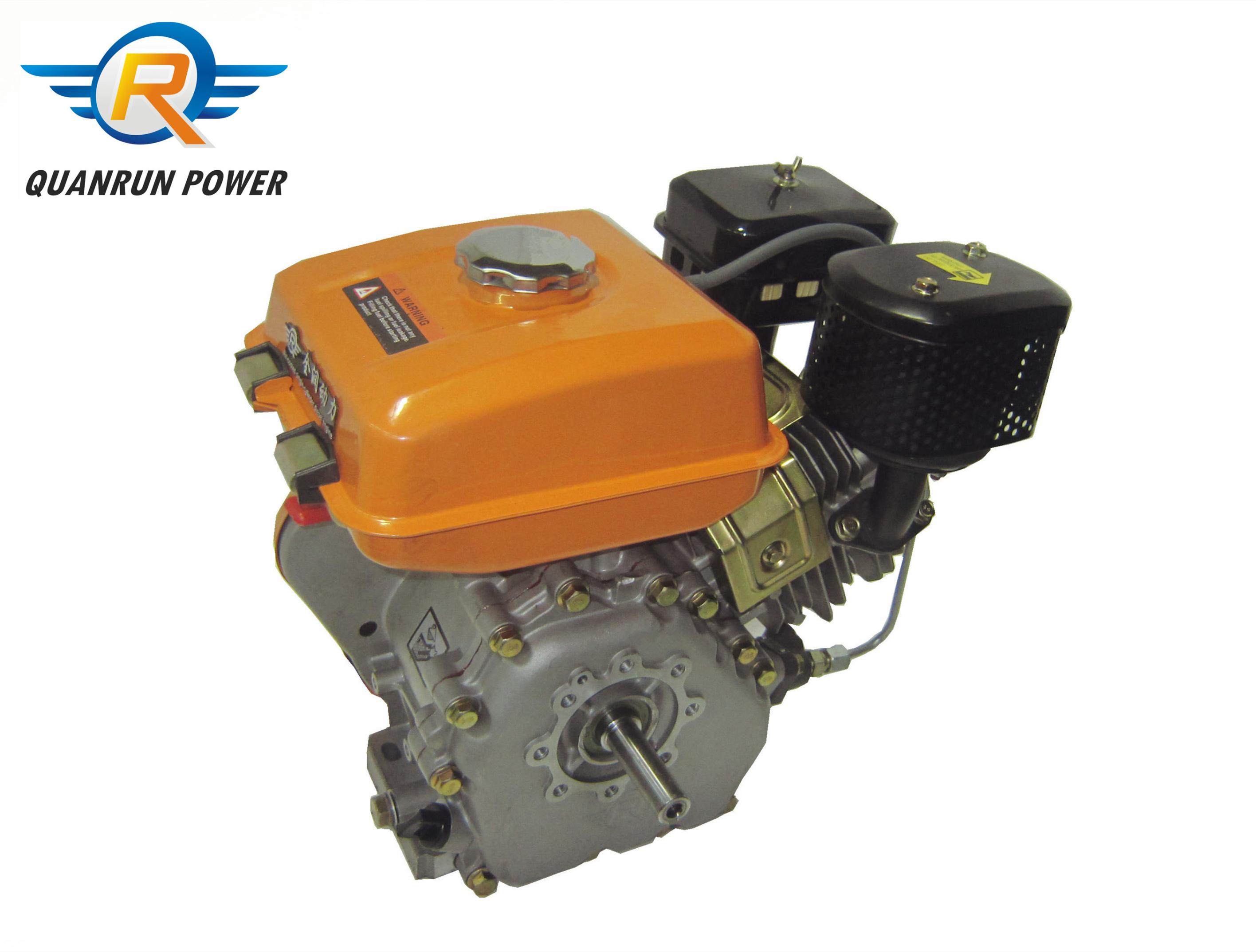

This 5.5 HP air-cooled diesel engine is a robust and reliable power source engineered for demanding agricultural and industrial applications. Featuring a 4-stroke, single-cylinder design with a swirl chamber, it offers efficient combustion and consistent power output. Its compact, durable construction makes it an ideal solution for powering machinery in both stationary and mobile settings, ensuring long-lasting performance with minimal maintenance.
Technical Specifications
- Engine Type
- Single cylinder, 4-stroke, swirl chamber, air-cooled
- Bore × Stroke
- 70 × 60 mm
- Displacement
- 231 cc
Performance Metrics
Engine Performance
3,600 r/min
Rated Speed
5.5 HP
Rated Output Power
280 g/kW·h
Max Fuel Consumption
Operation & Maintenance
Fluid Capacities
| Fluid Type | Capacity |
|---|---|
| Fuel Tank | 3 L |
| Lube Oil | 0.8 L |
- Starting Method
- Recoil StartElectric Start
- Lubrication System
- Splashing lubrication
Physical Dimensions
- Net Weight
- 23 kg
