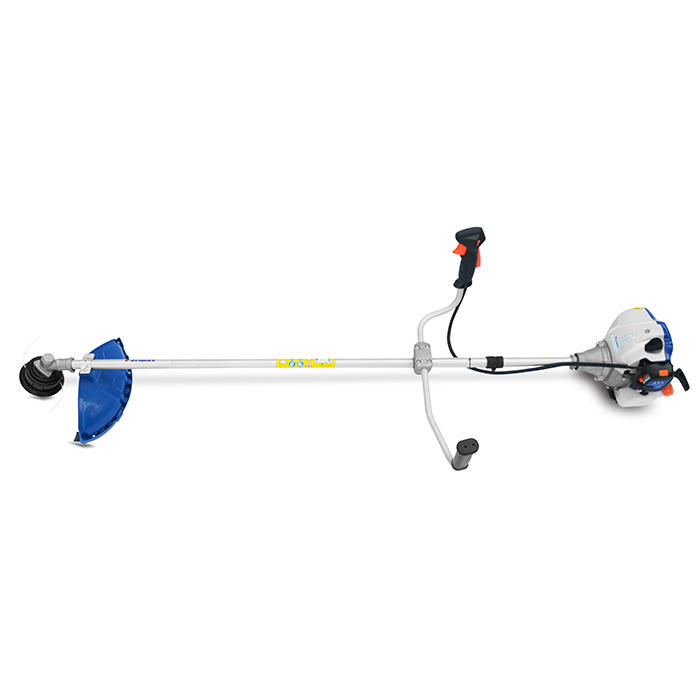

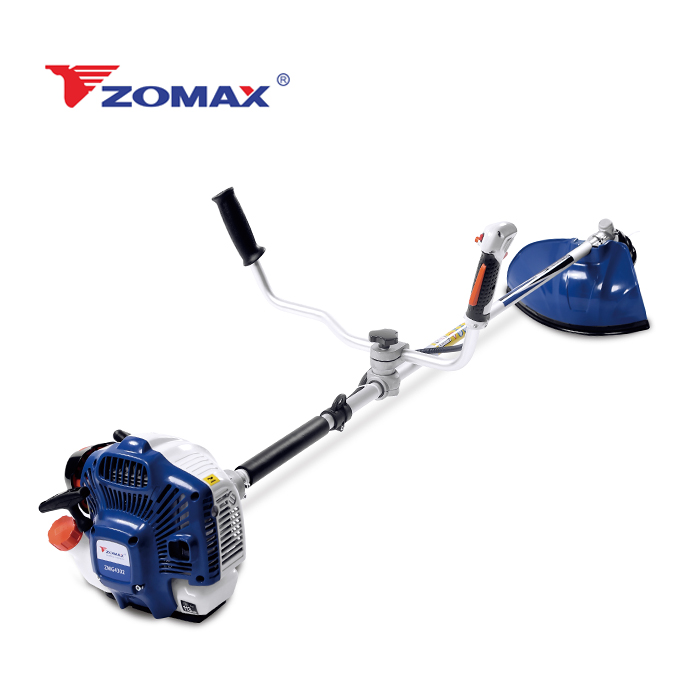

52cc Gas Powered Brush Cutter with U and P Handle
This 52cc brush cutter is gas powered for reliable performance. It features both a U bike handle and a P roop handle for versatile operation.
Technical Specifications
Overview
Professional Performance Brush Cutter
This 52cc gas-powered brush cutter is engineered for professional and residential landscape maintenance. Featuring both U-style and P-style handle options, it offers superior ergonomics for tackling dense weeds, thick brush, and overgrown grass. With a robust transmission system and high-speed engine, it delivers reliable, efficient cutting power for demanding outdoor environments.
Engine Specifications
Engine Performance
51.7 ml
Displacement
1.4 kw
Rated Power
10,000 rpm
Max Speed
Engine Technical Data
| Parameter | Value |
|---|---|
| Bore | 44 mm |
| Stroke | 34 mm |
| Idle Speed | 3,000 rpm |
| Fuel Tank Capacity | 700 ml |
Cutting Capabilities
Cutting Specifications
| Component | Specification |
|---|---|
| Line Head Width | 430 mm |
| Grass Blade Width | 255 mm |
| Blade Thickness | 1.4/2.0 mm |
| Line Diameter | 2.5 mm |
Design and Build
Physical Construction
| Attribute | Measurement |
|---|---|
| Net Weight | 8.3 kg |
| Working Shaft Length | 1500 mm |
| Working Shaft Diameter | 28 mm |
| Drive Shaft Diameter | 8 mm |
| Shaft Teeth Count | 9 |
- Available Handle Styles

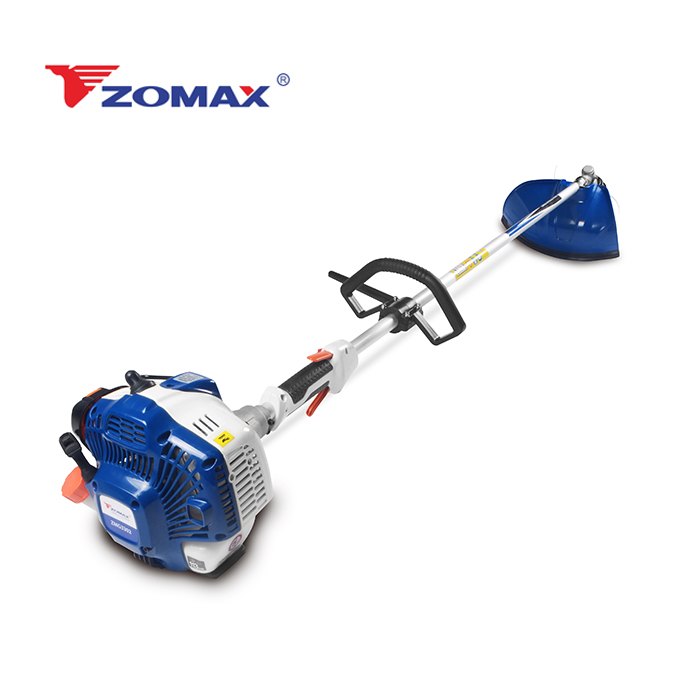

- U-HandleP-Loop Handle
- Transmission Configuration
- Clutch + Hard Shaft + Gearbox
