Technical Specifications
Overview

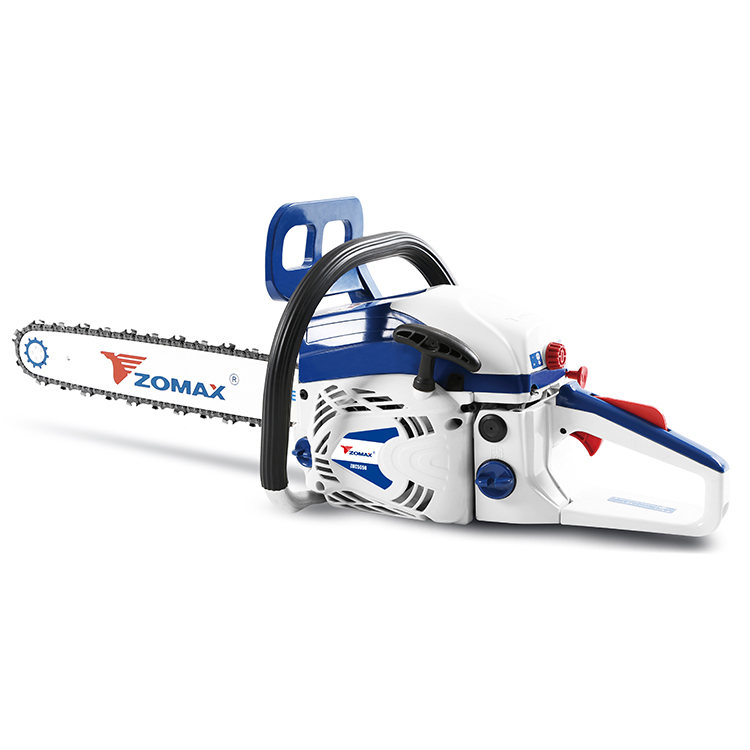

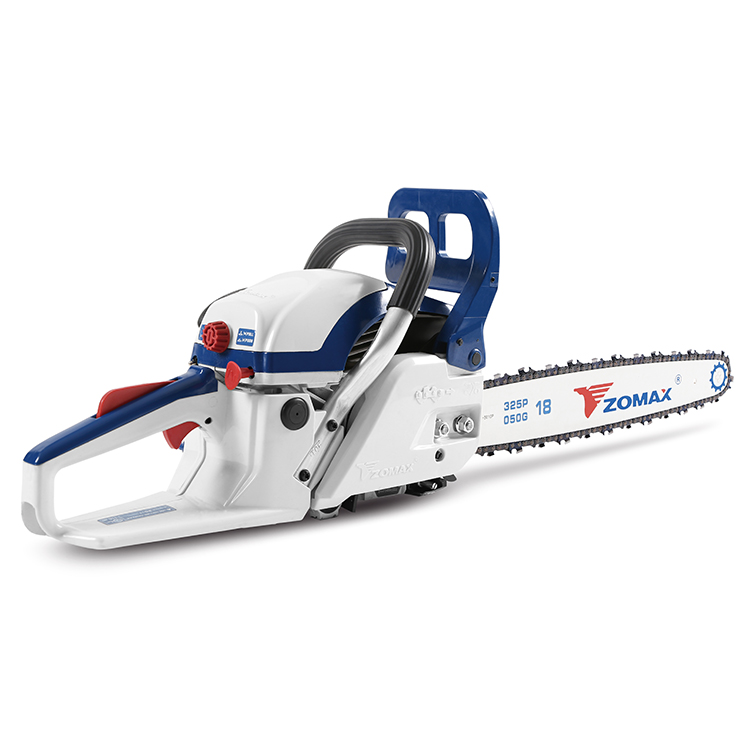

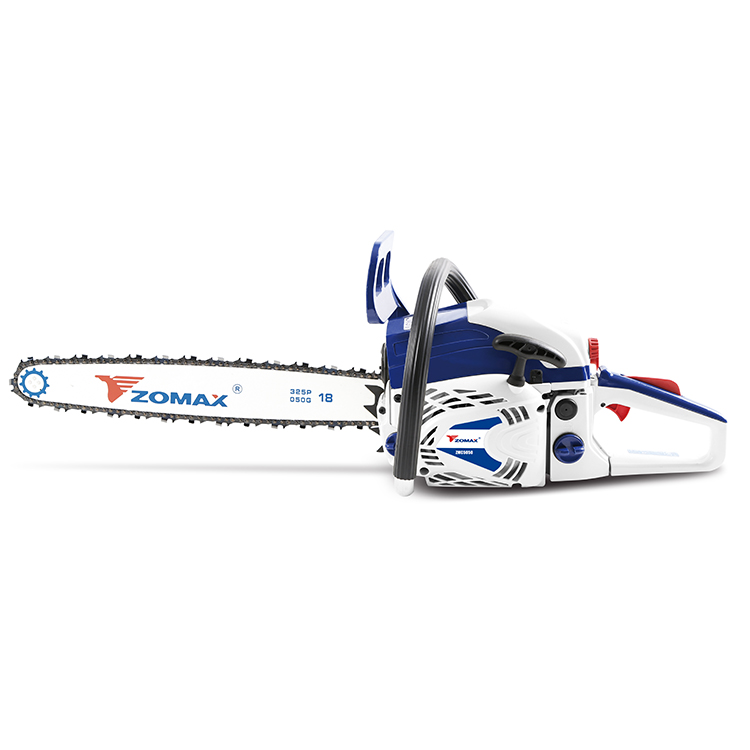

Professional Performance 50CC Gasoline Chainsaw
This 50cc gasoline chainsaw is engineered for high-efficiency wood cutting and garden maintenance. It features a robust 2-stroke air-forced cooled engine designed for long service life, stability, and consistent performance. With integrated safety systems like an automatic anti-kickback brake and advanced digital ignition, it provides a reliable solution for both professional and domestic wood-cutting applications.
Engine & Performance
Engine Performance
49.8 cc
Displacement
2 kW
Rated Power
11,000 rpm
Max Speed

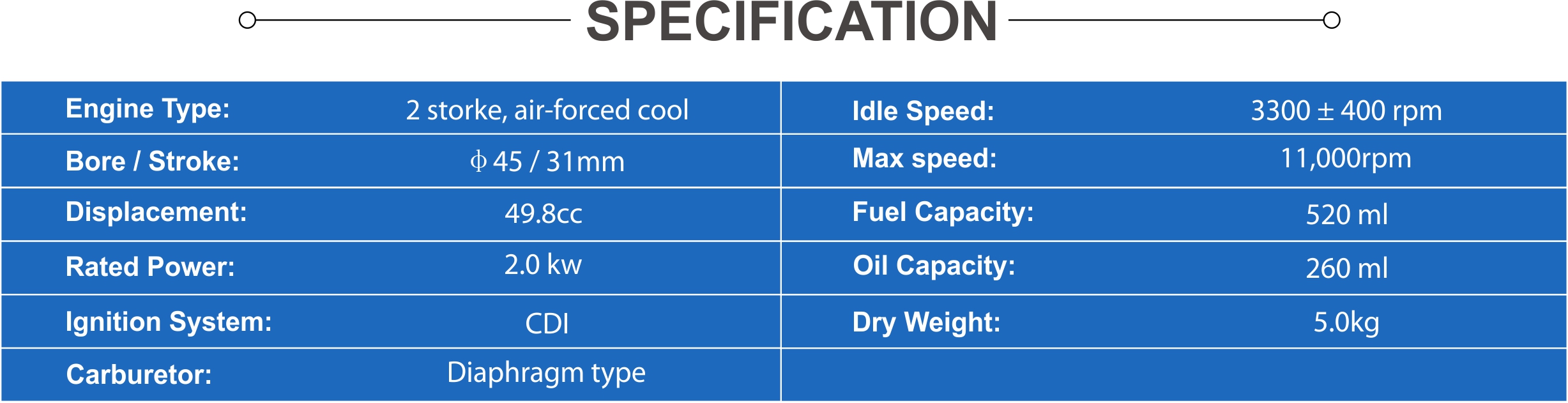

Engine Specifications
| Parameter | Detail |
|---|---|
| Engine Type | 2-stroke, air-forced cooled |
| Bore / Stroke | 45 / 31mm |
| Ignition | Digital/CDI |
| Carburetor | Diaphragm type |
| Idle Speed | 3300 ± 400 rpm |
Cutting Capacity
Cutting Options
- Bar Lengths: 16", 18", 20", 22", 24"
- Chain Pitch: 325" or 3/8"
- Gauge: 0.050G / 0.058G
Technical Details
Capacity & Weight
- Fuel Tank Capacity: 520 ml
- Oil Tank Capacity: 260 ml
- Dry Weight: 5.0 kg
- Key Features
- Automatic Anti-kickback BrakeDigital Ignition SystemLow VibrationExcellent LubricationFuel Primer OptionAnti-freeze Option
Logistics
Container Loading Quantities
| Container | Units |
|---|---|
| 20FT | 704 |
| 40GP | 1,472 |
| 40HQ | 1,656 |
