Technical Specifications
Overview

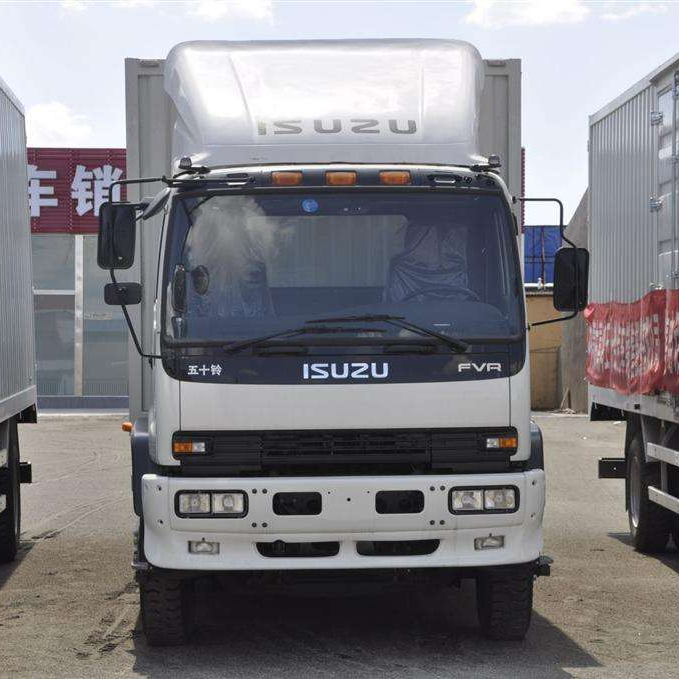

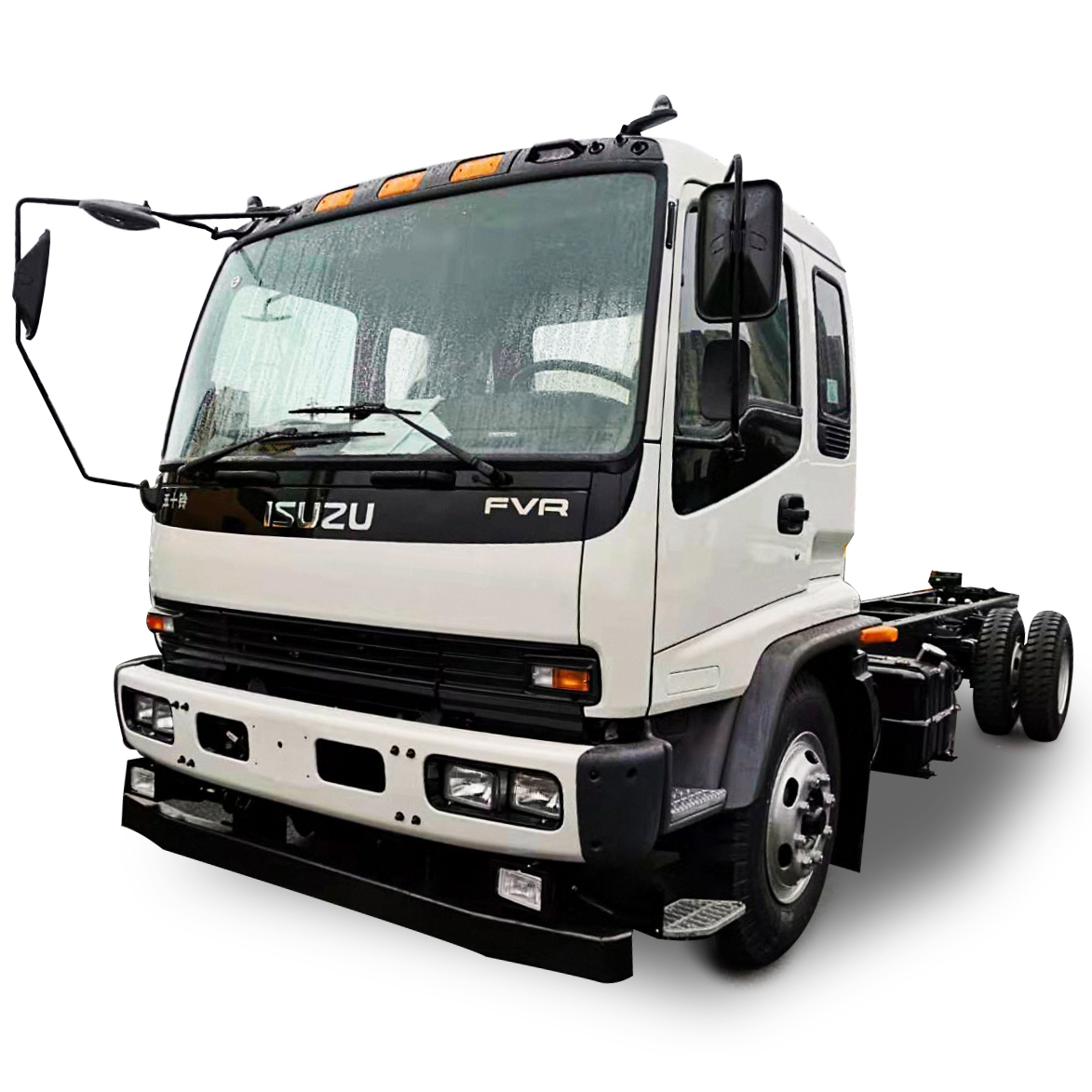

Reliable 4x2 Freight Solution
This 4x2 Freight Van Truck is engineered for versatile and robust transportation needs, suitable for both urban distribution and regional logistics. Built on a durable chassis with a 18,000kg gross vehicle weight capacity, it offers a balance of load-carrying efficiency and maneuverability. The vehicle features a spacious, secure cargo box and a driver-focused cabin equipped with modern comfort and safety features.
Dimensions & Capacity
Weight Specifications
8,090 kg
Curb Weight
18,000 kg
Gross Vehicle Weight
- Overall Dimensions (L x W x H)
- 9750 x 2550 x 3990 mm
- Box Dimensions (L x W x H)
- 7120 x 2450 x 2550 mm
Powertrain
Engine Performance
175 Kw
Power
241 Hp
Horsepower
7,790 ml
Displacement
- Transmission Configuration
- Manual MLD-6Q (6 Forward, 1 Backward)
Chassis & Handling
Chassis Technical Data
| Parameter | Value |
|---|---|
| Wheelbase | 5500 mm |
| Drive Type | 4x2 |
| Front/Rear Wheel Distance | 1960/1855 mm |
| Axle Loads | 6500/11500 kg |
| Rear Axle Ratio | 5.571 |
- Tire Model
- 11.00R20-16PR (Including Spare)
Comfort & Safety
Cabin Amenities
- 3 Front Seats
- Cab Tilting Mechanism
- Large Interior Lights
- Speed Light
- Standard Configuration
- Power SteeringAir ConditioningABSCentral LockElectric WindowsDriving Data Recorder
