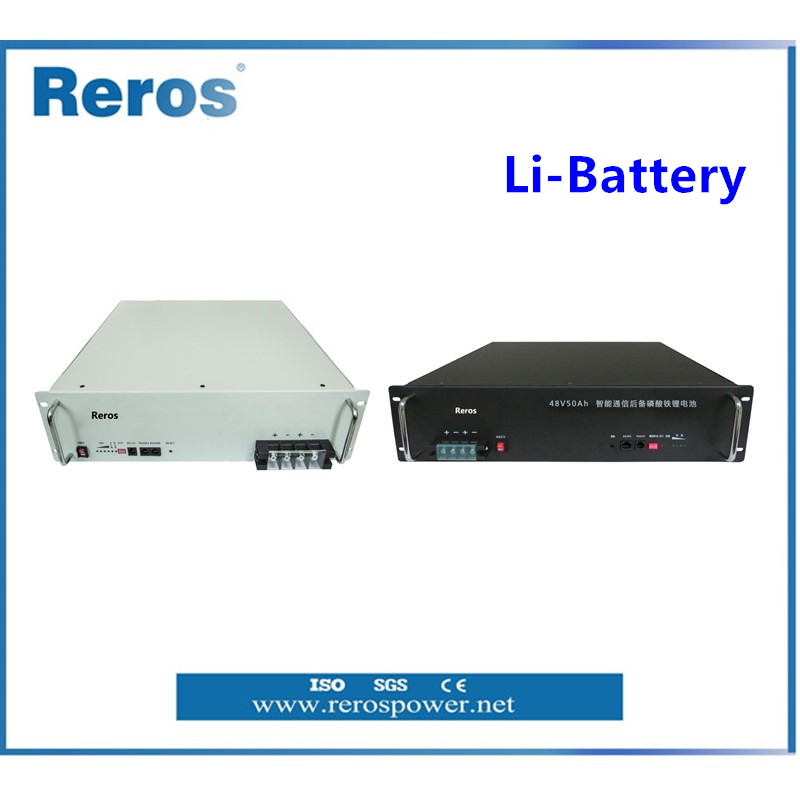

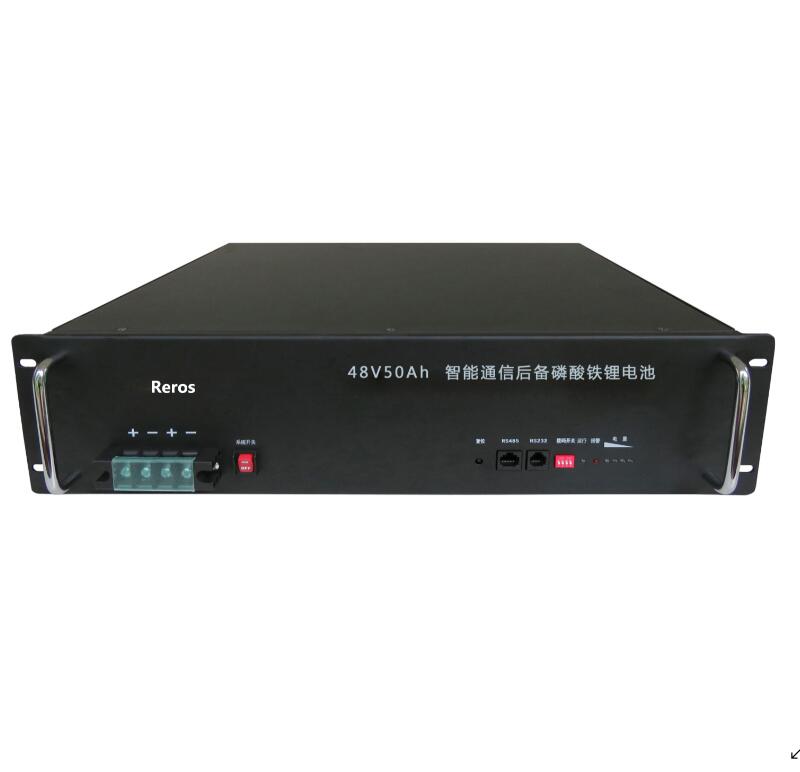

48V Rack Mountable LiFePO4 Battery Module
This rack mountable LiFePO4 battery module provides high safety and power density. It supports parallel configurations and features a BMS battery management system for efficient operation.
Technical Specifications
Overview
High-Performance Energy Storage
This 48V rack-mountable LiFePO4 battery module is designed for reliable power backup and energy storage in demanding environments. Featuring a modular design, it supports parallel expansion to scale capacity as needed. Integrated with a smart Battery Management System (BMS) and multiple communication ports (RS232/RS485/CAN), it ensures safe, efficient, and intelligent operation for critical systems.
Key Features
- Key Features
- Rack-mountableModular DesignBMS IncludedParallel SupportRS232/RS485/CANHigh Power Density
Technical Specifications
Technical Parameters
| Parameter | A4850 | A48100 |
|---|---|---|
| Capacity | 48V 50Ah | 48V 100Ah |
| Charging Voltage Max | 56.8V | 54.75V |
| Discharge End Voltage | 44.0V | 37.5-42.0V |
| Max Continuous Current | 50A | 100A |
| Weight | 22kg | 48kg |
- Cycle Life
- 3000 cycles
Applications
Typical Applications
- UPS Systems
- Communication Systems
- Base Station Power Supply
