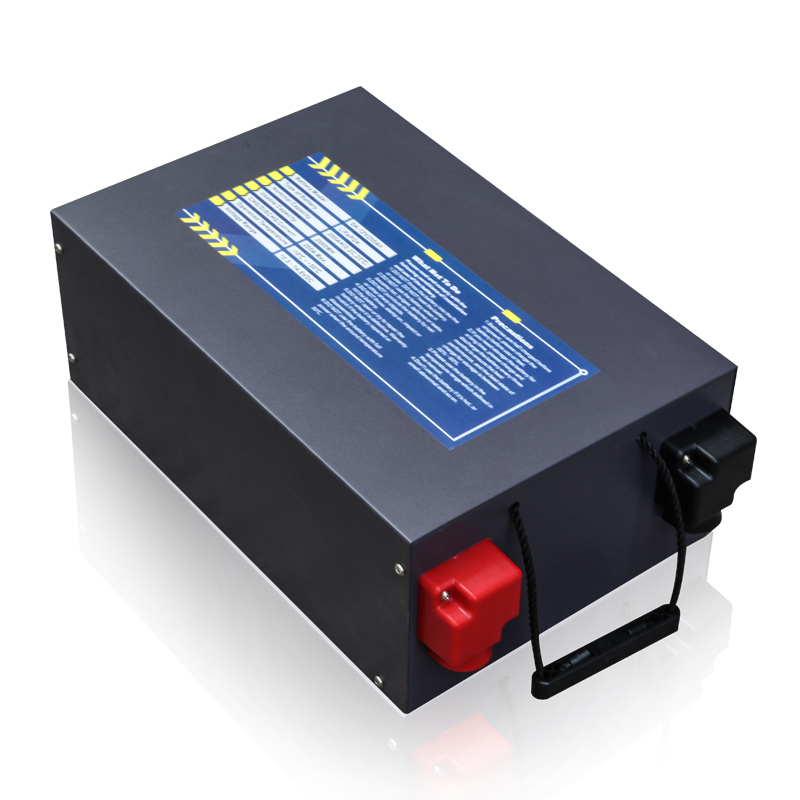

48V 200AH LiFePO4 Rechargeable Battery
This 48V 200AH LiFePO4 lithium battery provides a high-capacity, rechargeable energy storage solution. The battery features enhanced safety features and a long cycle life.
Technical Specifications
Product Overview
High-Performance Energy Storage
This 48V 200AH LiFePO4 rechargeable battery is designed as a robust energy storage solution for off-grid solar power systems and demanding industrial applications. Utilizing advanced lithium iron phosphate chemistry, it provides a high energy density, long cycle life, and enhanced safety features compared to traditional lead-acid alternatives. The unit features built-in protection against overcharging, over-discharging, overcurrent, and short circuits, ensuring reliable and efficient power delivery.
Electrical Specifications
- Nominal Capacity
- 200 AH
- Charge Voltage
- 58.4 VDC
- Max Charge Current
- 50 A
- Max Discharge Current
- 100 A
Performance & Safety
Cycle Life
3,000 Cycles
Charge/Discharge Cycles
IP Grade
IP65
- Safety Protections
- Overcharge ProtectionOver-discharge ProtectionOvercurrent ProtectionShort Circuit ProtectionOvertemperature ProtectionCell Equalizer
Operating Environment
Storage Conditions
| Parameter | Specification |
|---|---|
| Temperature | 25±5°C |
| Humidity | ≤80% RH |
| Max Storage Time | ≤6 months |
- Operating Temperature
- -10°C to 50°C
Installation
Mounting Options
- Horizontal Case
- Wall Hanging Case
