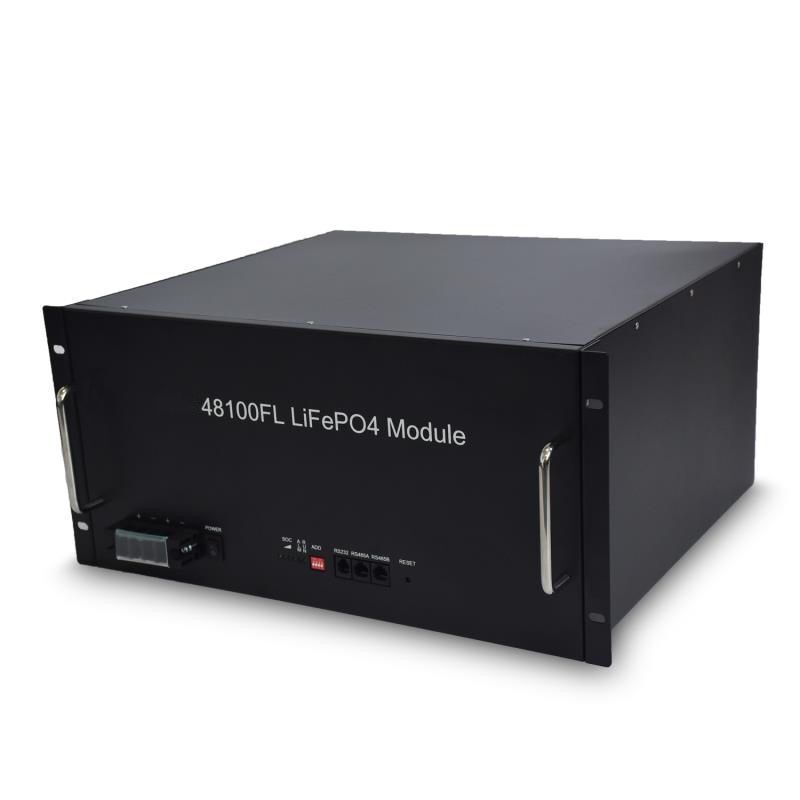

48V 100Ah Lithium Iron Phosphate Battery Pack
This 48V 100Ah lithium iron phosphate battery pack provides green energy with a long cycle life of 2000 cycles at 80% DOD. The maintenance-free battery pack has an internal BMS with full protection and high-temperature performance.
Technical Specifications
Overview
High-Performance Energy Storage Solution
This 48V 100Ah Lithium Iron Phosphate (LiFePO4) battery pack is designed for demanding uninterruptible power supply (UPS) and energy storage applications. It offers a sustainable, non-toxic, and maintenance-free alternative to traditional battery technologies, featuring a long cycle life of 2,000 cycles at 80% DOD. With an integrated Battery Management System (BMS) and robust rack-mount design, it ensures high safety and reliability for critical infrastructure.
Key Performance Metrics
Key Performance Metrics
48 V
Nominal Voltage
100 Ah
Nominal Capacity
2,000 cycles
Cycle Life (80% DOD)
50 A
Standard Charge Current

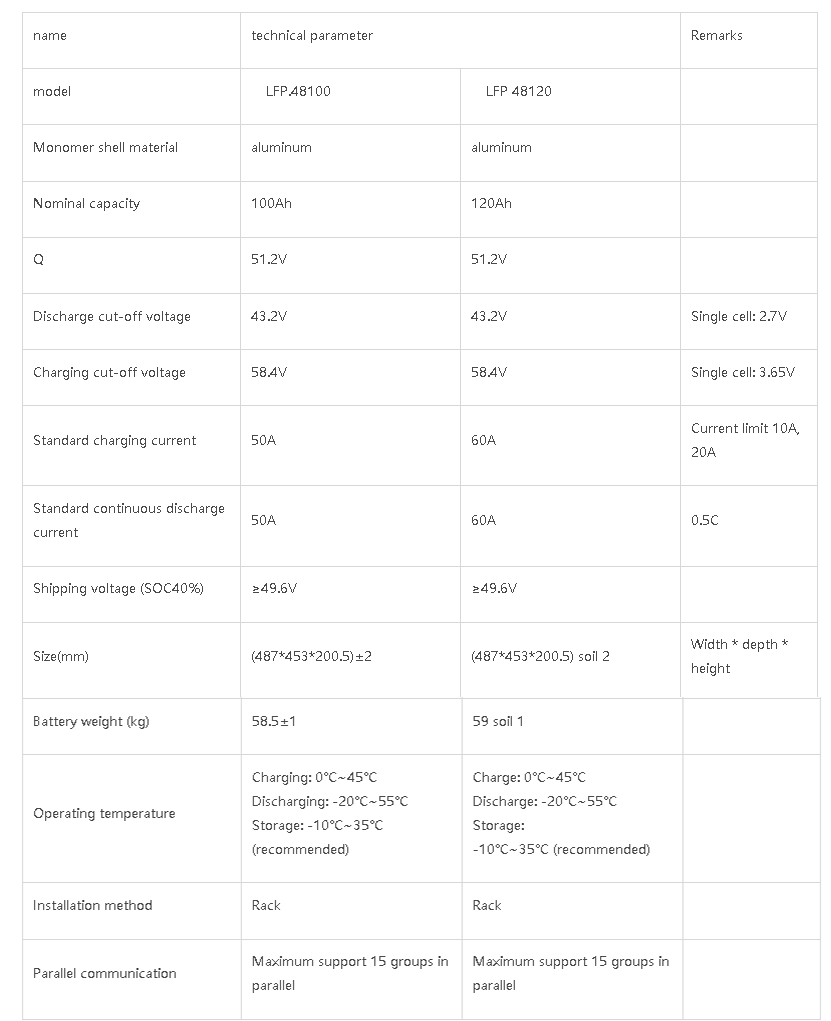

Technical Parameters
Voltage & Current Ratings
| Parameter | Value |
|---|---|
| Nominal Voltage | 51.2V |
| Discharge Cut-off Voltage | 43.2V (Single cell: 2.7V) |
| Charging Cut-off Voltage | 58.4V (Single cell: 3.65V) |
| Standard Continuous Discharge Current | 50A |
| Charging Current Limit | 10A / 20A |
| Shipping Voltage (SOC 40%) | ≥49.6V |
Physical & Environmental
Operating Temperature Range
- Charging: 0°C to 45°C
- Discharging: -20°C to 55°C
- Storage: -10°C to 35°C (Recommended)
- Dimensions
- 487 x 453 x 200.5 mm
- Battery Weight
- 58.5 kg
Safety & Management
- Integrated Protection
- Internal BMSHigh Voltage ProtectionNo Memory EffectLow Self-DischargeNon-ToxicMaintenance Free
Connectivity & Scalability
Communication Interfaces
RS232RS485CAN
- Parallel Support
- Maximum 15 groups in parallel

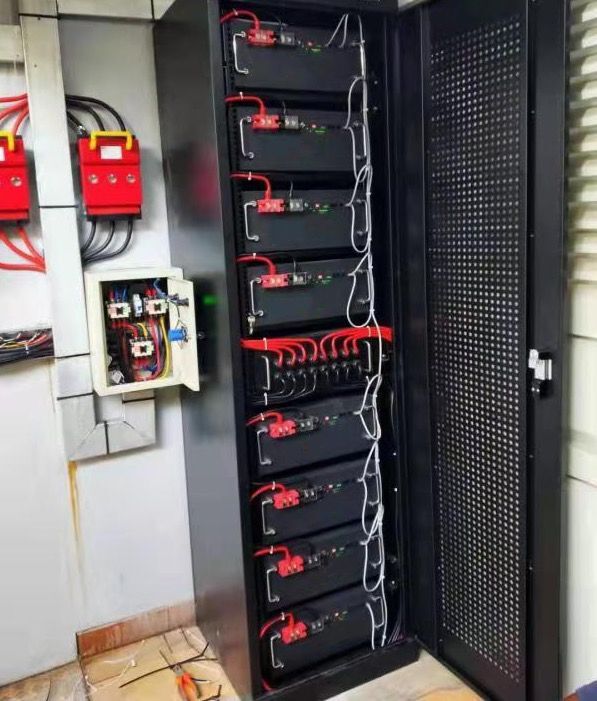

Installation
- Installation Method
- Rack-mounted
- Monomer Shell Material
- Aluminum
