Technical Specifications
Overview
Professional Wood Cutting Performance

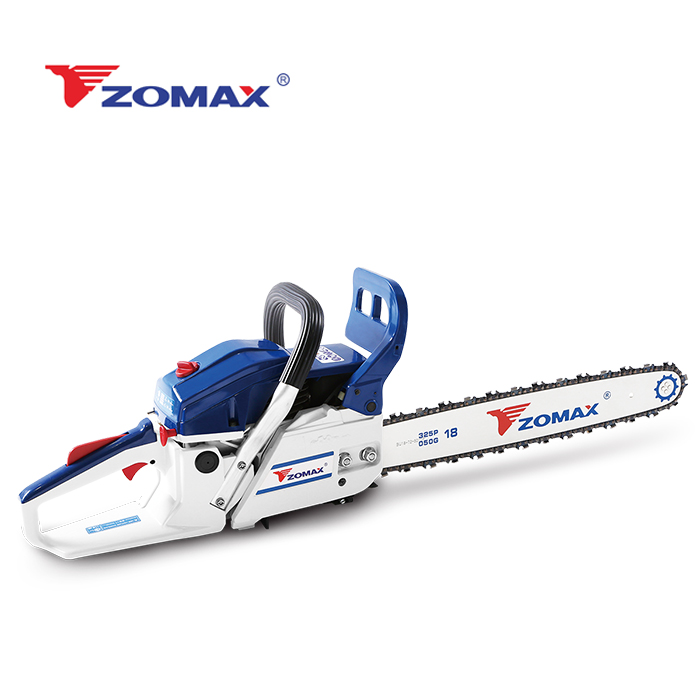

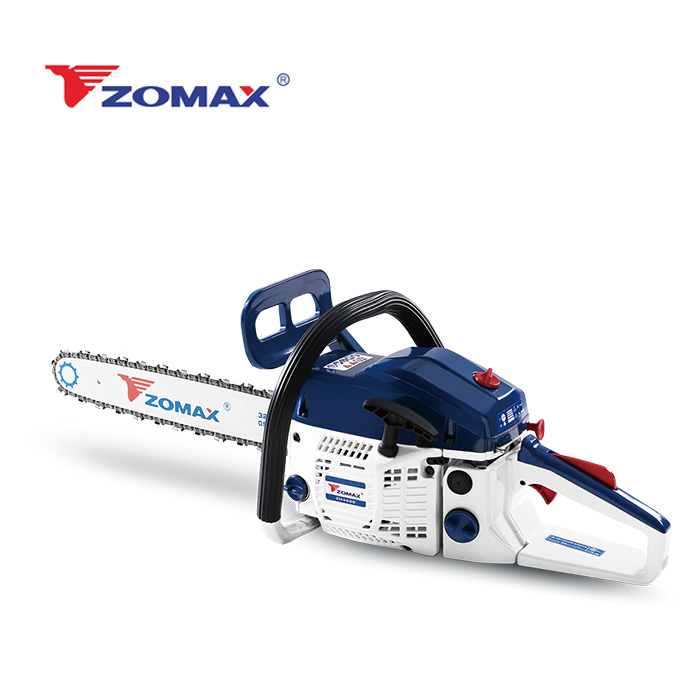

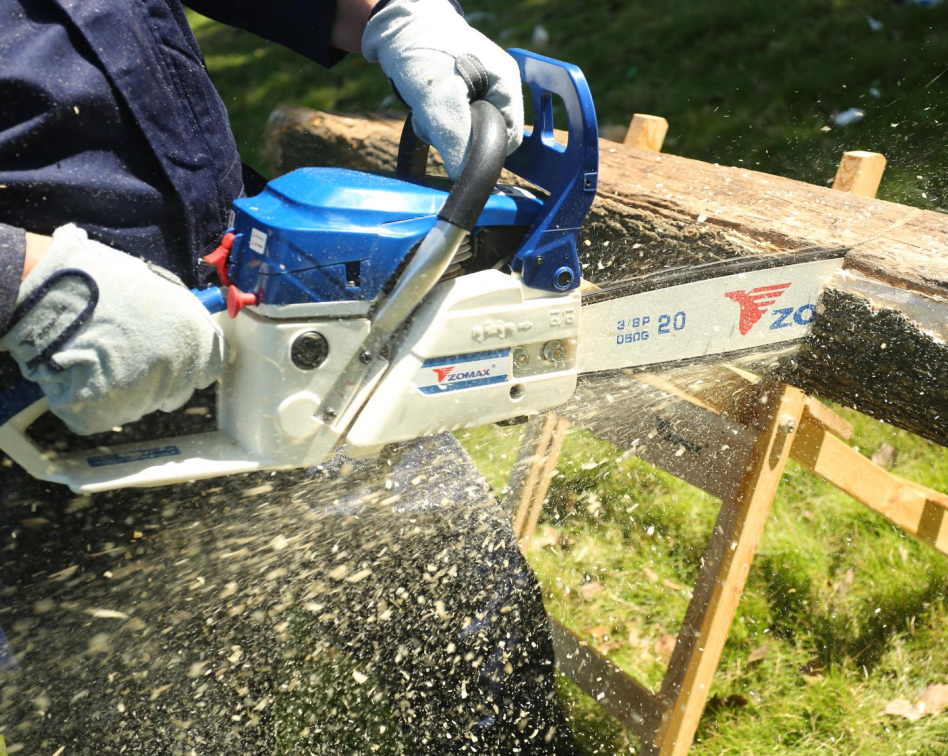

This 46cc gasoline chainsaw is engineered for high-efficiency wood cutting, making it an ideal choice for both professional landscaping and home agricultural maintenance. Featuring a digital-type ignition system and a durable engine design, it offers consistent performance with an extended operational lifespan. The unit incorporates advanced safety features, including an automatic anti-kickback braking system, ensuring reliability during demanding felling and pruning tasks.
Technical Specifications
Engine Performance Metrics
45.6 cc
Displacement
1.8 kW
Rated Power
11,000 rpm
Max Speed
4.9 kg
Dry Weight
Operational Details
| Feature | Specification |
|---|---|
| Ignition System | Digital/CDI |
| Carburetor Type | Diaphragm |
| Idle Speed | 3300 ± 400 rpm |
| Fuel Capacity | 520 ml |
| Oil Capacity | 260 ml |
Cutting Configuration
Available Bar Lengths
- 16 inch
- 18 inch
- 20 inch
- 22 inch
- 24 inch
- Chain Technical Data
- Pitch: .325 or 3/8 inchGauge: 0.050G or 0.058G
Features
Available Options
Easy StarterFuel PrimerAnti-freeze System
