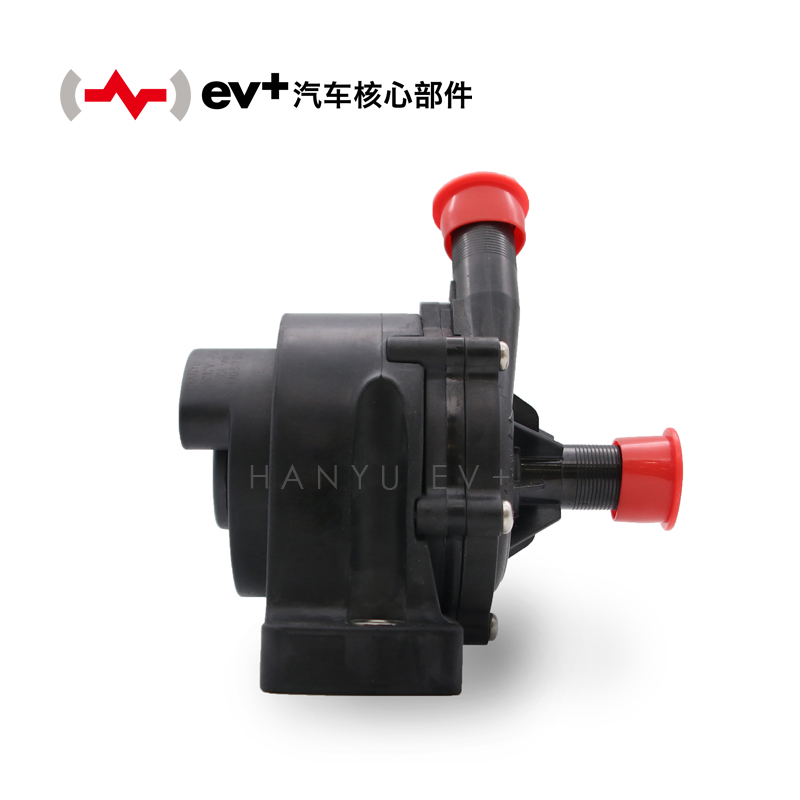

45W Electric Coolant Circulation Pump
This 45W electric coolant pump is designed for efficient and reliable coolant circulation. Its robust construction ensures durability and long-lasting performance in various applications.
Technical Specifications
Product Overview
High-Efficiency Thermal Management
This 45W electric coolant circulation pump is engineered for superior thermal management in demanding environments. Featuring a brushless DC motor and advanced sine wave control algorithms, it delivers consistent, reliable flow with low noise output. Its robust construction utilizes high-strength, flame-retardant engineering plastics, ensuring exceptional durability and environmental adaptability in automotive and industrial cooling systems.
Performance Metrics
Rated Power
45 W
Rated Power
12 V
Rated Voltage
35 L/min
Max Flow Rate
Technical Specifications
Protection Level
IP67
- Inlet/Outlet Diameter
- 17 mm
Operating Environment
- Ambient Temperature Range
- -40°C to 120°C
- Coolant Temperature Range
- -40°C to 100°C
Design & Construction
Motor Technology
- Brushless DC motor
- Rare-earth magnetic steel
- Low iron loss silicon steel sheet
- Sine wave control algorithm
Safety & Reliability
- Water and electricity separation
- Fault detection and feedback
- Self-protection functions
- Integrated PCB cooling system
- Material Features
- Flame-retardantHigh temperature resistantCorrosion-resistantHigh-strength engineering plastics
