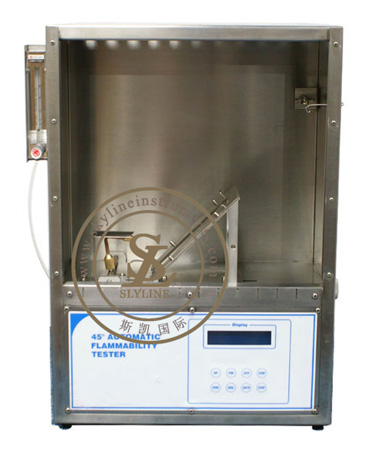

45 Degree Textile Flammability Tester
This 45-degree flammability tester checks the flammable performance of textiles. It features a stainless steel testing room with a glass window and provides automatic timing with 0.01-second precision, supporting both automatic and manual operation.
Technical Specifications
Product Overview
Precision Flammability Testing
This 45-degree flammability tester is designed to accurately evaluate the burning performance of textile materials. Featuring a robust stainless steel testing chamber with a glass viewing window, it offers both automatic and manual timing modes for versatile testing. The system ensures high precision with 0.01-second resolution, making it an essential tool for quality control and compliance testing in the textile industry.
Technical Performance
Key Testing Metrics
99.99 s
Max Spread Time
0.01 s
Time Resolution
1 s
Firing Time
- Power Requirements
- 220V/50Hz, 2A
Physical Attributes
- Dimensions
- 400mm x 300mm x 500mm
- Weight
- 28 kg
Compliance
- Testing Standards
- ASTM D1230FTMS191-5908CFR 16-1610CALIF TB117
Equipment Features
Included Accessories
- Manual firing device
- Sample holder
- Brush
