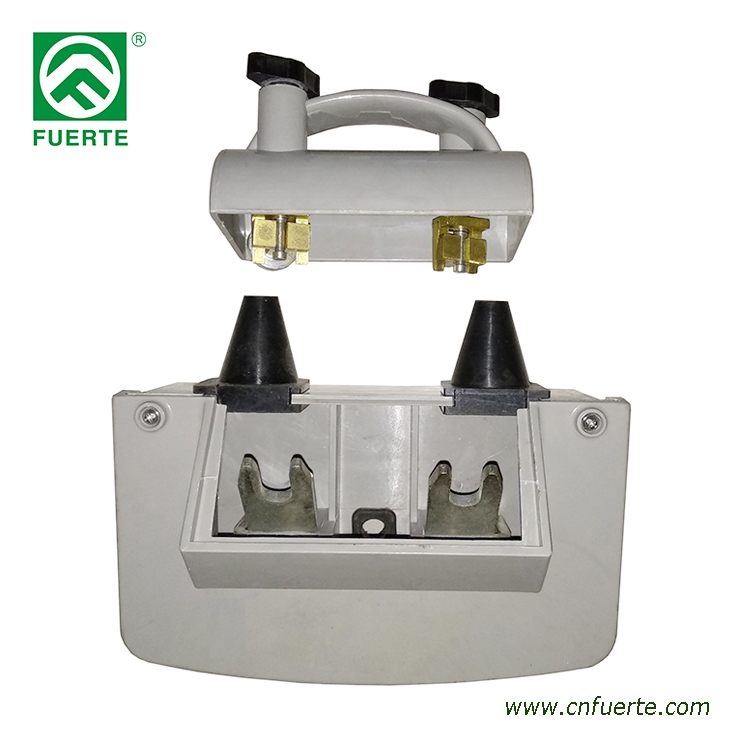

400A Pole Mountable Fused Cutout
This pole mountable fused cutout provides rural dwellings with a safe, protective, and reliable low voltage power supply. It features bronze fuse contacts and cable terminal plates with M12 captive studs for cable sockets up to 300mm2.
Technical Specifications
Product Overview
Reliable Low Voltage Protection
This pole-mountable fused cutout is engineered to provide rural dwellings with a safe and reliable low voltage power supply. Designed for durability, the unit features bronze contacts with tin coating to ensure long-term performance and effective circuit interruption. It supports versatile installation options, including wall, wooden pole, or cross-arm mounting, making it a flexible solution for various electrical distribution network architectures.
Technical Specifications
Rated Current
400 A
Rated Current
- Fuse Link Compatibility
- Standard-wedge type fuse link to BS88 part 5
- Fuse Rating Range
- 20A to 400A
- Fixing Center
- 82 mm
- Category of Duty
- 415AC80
Construction & Materials
- Contact Material
- Bronze with tin coating
- Conductor Compatibility
- CopperAluminium
- Terminal Studs
- M12 captive studs
Installation
Mounting Options
- Wall mounting
- Wooden pole mounting
- Cross-arm mounting
Logistics
- Regular Delivery Time
- 35 days
- Standard Packaging
- 1 or 3 pcs per foam-lined carton, palletized
