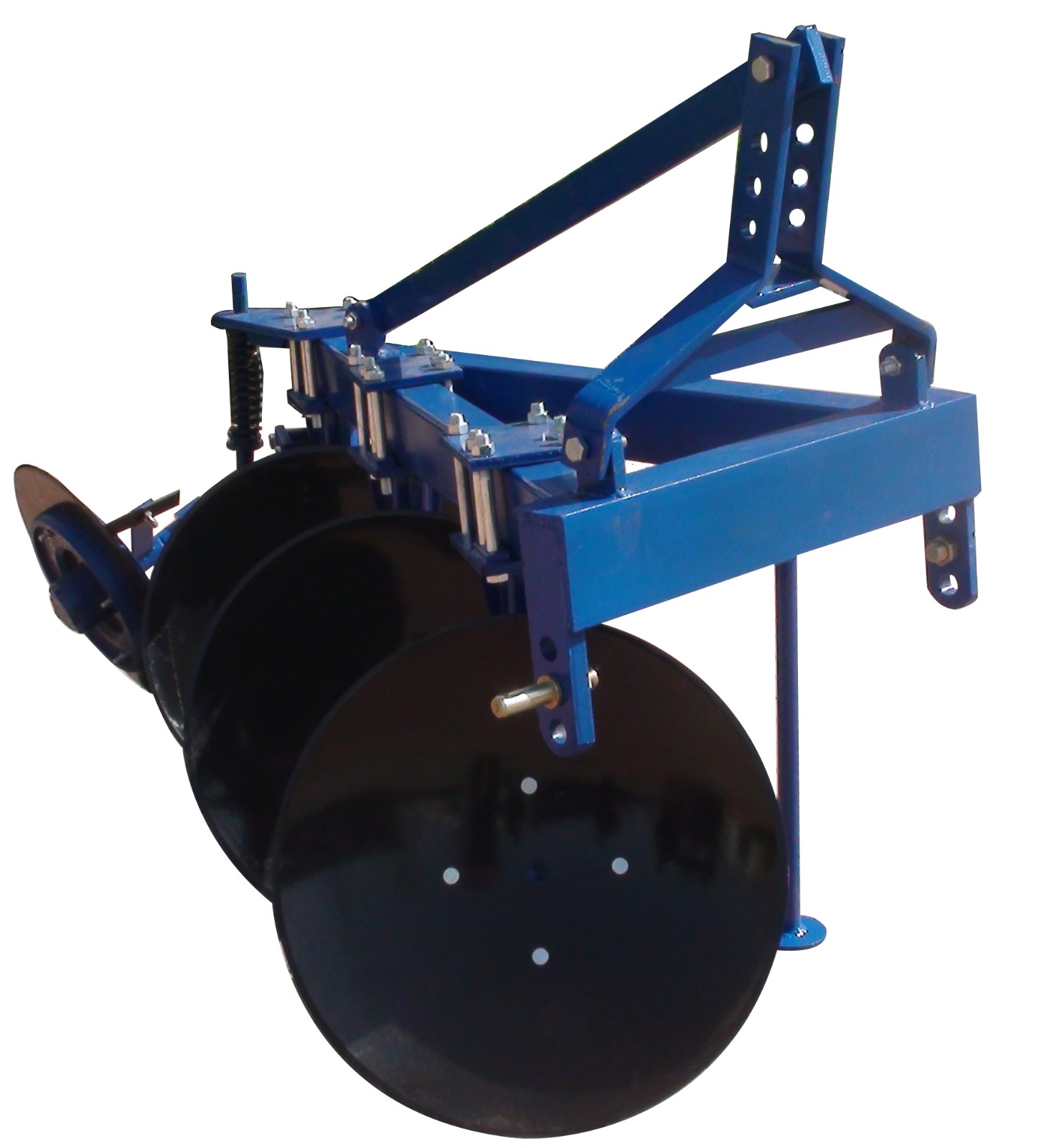

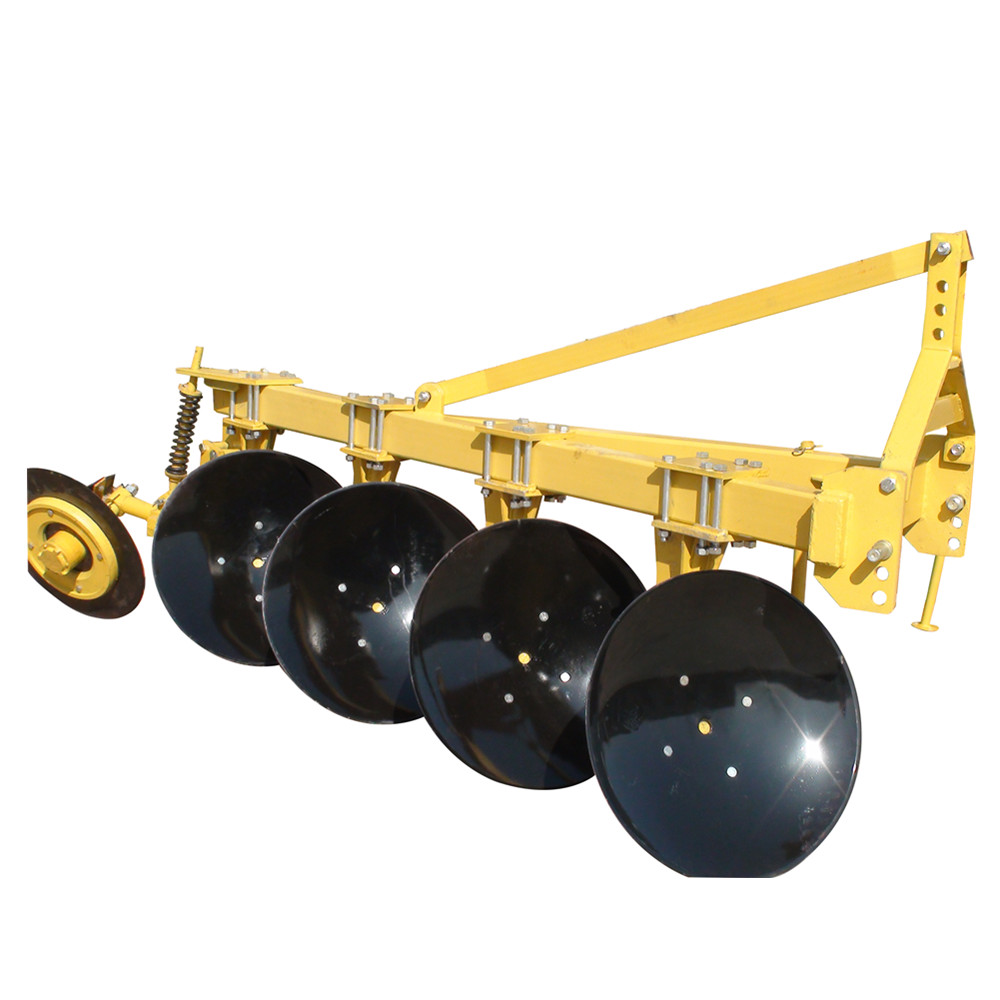

4-Wheel Tractor Disc Plough
This tractor-mounted disc plough is designed to cut off stems and roots efficiently. Its design ensures less working resistance during operation.
Technical Specifications
Product Overview
High-Performance Disc Ploughing
This mounted disc plough is engineered for 4-wheel tractors, specifically designed to navigate challenging terrain including weeds, stems, and frictional soil containing small debris. Its rotating disc mechanism ensures efficient furrowing without grass winding or blockages, promoting a smooth operation. With a robust design, it minimizes working resistance while effectively cutting through roots and soil, making it an essential tool for primary tillage and land preparation.
Technical Specifications
Key Performance Metrics
250 mm
Minimum Working Depth
300 mm
Maximum Working Depth
- Linkage System
- Three-point suspension II type
- Working Depth
- 300 mm
Model Comparison
Specifications by Model
| Model | Width (mm) | Discs (Qty) | Weight (kg) | Power (hp) |
|---|---|---|---|---|
| 1LY(T)-325 | 750 | 3 | 420 | 50 |
| 1LY(T)-425 | 1,000 | 4 | 490 | 90 |
| 1LY(T)-525 | 1,250 | 5 | 565 | 120 |
| 1LY(T)-625 | 1,500 | 6 | 640 | 160 |
Features
Operational Advantages
- Anti-winding mechanism prevents grass buildup
- Non-blocking design for continuous operation
- Reduced working resistance
- Effective stem and root cutting capabilities
- Suitable for soil with small debris
