Technical Specifications
Overview
Reliable Power Distribution

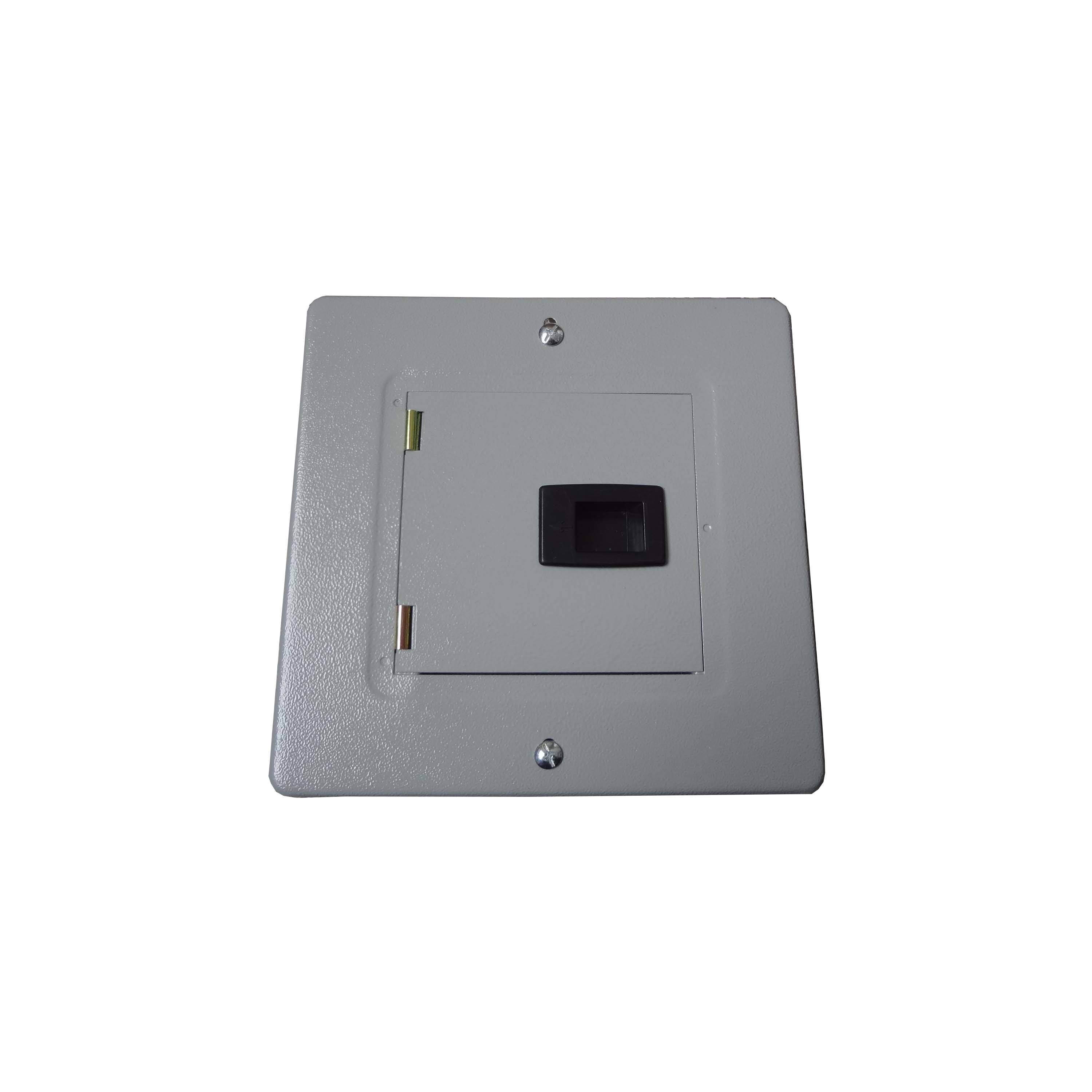

The GTLS Series distribution box is designed for safe and efficient electrical power control in residential, commercial, and light industrial environments. Built with high-quality steel and a durable powder-coated finish, it ensures long-lasting performance and corrosion resistance. Its wider enclosure design simplifies wiring installation and improves heat dissipation, making it a practical choice for service entrance equipment.
Technical Specifications
Rated Current
100 A
Max Rated Current
- Service Voltage
- 120/240 Vac
- Phase Configuration
- Single-phase, three-wire
- Breaker Compatibility
- GE type 1' THQL breakers
Construction & Design
- Steel Sheet Thickness
- 0.5 - 1.2 mm
- Finish
- Matt-finish polyester powder coated
- Mounting Styles
- Flush MountedSurface Mounted
Installation Features
Knockout Locations
- Top
- Bottom
- All sides
