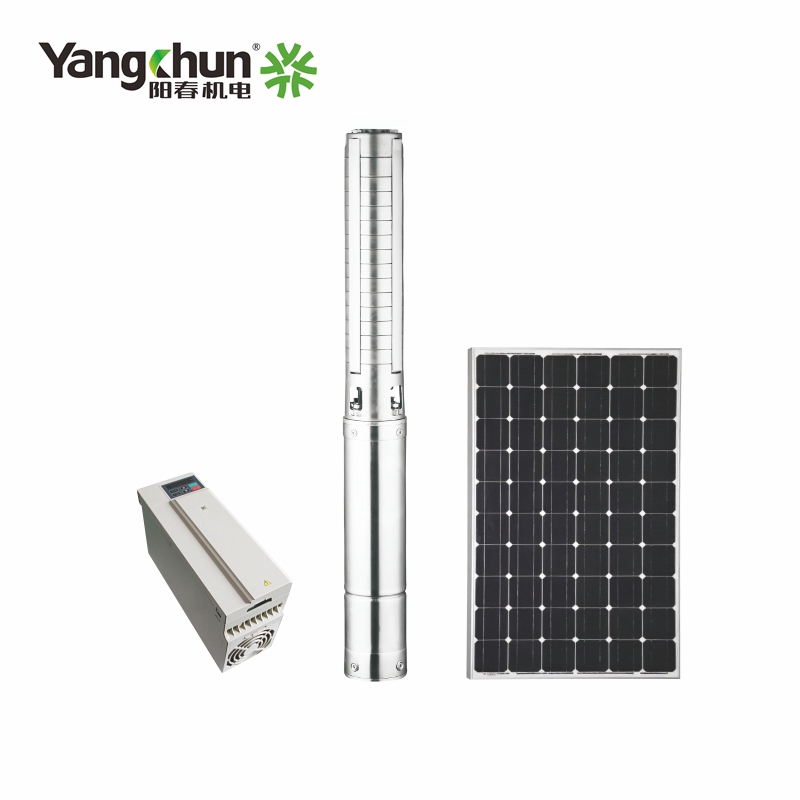

4" 3T/h High Rotation Speed Solar Pump
This 4" solar pump provides a 3T/h flow rate with intelligent, high-speed operation. It is designed for efficient water delivery in agricultural irrigation and remote water supply systems.
Technical Specifications
Product Overview
High-Performance Intelligent Solar Pumping
This 4" high-speed solar pump is engineered for demanding water supply needs, featuring a permanent magnet synchronous motor and all-stainless steel multistage impellers. Capable of reaching speeds up to 5200 RPM, it offers superior power density and efficiency that exceeds GB32030-2015 first-level energy standards. Designed for versatility, it supports AC/DC direct input and is ideal for deep well applications where drilling costs are high, providing a sustainable, oil-free, and cost-effective water solution.
Technical Performance
Key Performance Metrics
5,200 RPM
Max Rotation Speed
3 m³/h
Rated Flow Rate
520 VDC
Operating Voltage
Model Performance Table
| Model | Power (kW) | Max Head (m) | Voltage (VDC) |
|---|---|---|---|
| G100QJ3-168/10-3600W | 3.6 | 200 | 520 |
| G100QJ3-232/14-4800W | 4.8 | 280 | 520 |
| G100QJ3-300/18-6000W | 6 | 360 | 520 |
| G100QJ3-400/24-8000W | 8 | 480 | 520 |
| G100QJ3-500/30-11000W | 11 | 600 | 520 |
Core Features
Intelligent Capabilities
- Constant pressure and constant current water supply
- Intelligent drive adjustment for power saving
- Self-diagnostic fault processing functions
- Built-in temperature control protection strategies
- Automatic operation based on solar irradiance
Construction & Design
Physical Characteristics
- Small size and light weight for easier installation
- Delicate aesthetic appearance
- Pollution-free design (no industrial oil)
- High-speed rotation (up to 5200 RPM)
- Materials & Build
- Stainless Steel ImpellerPermanent Magnet Synchronous MotorMultistage DesignOil-Free ConstructionHigh Power Density
Operational Benefits
Energy Efficiency
Exceeds GB32030-2015 Level 14-8% Higher EfficiencyAC/DC CompatibleEco-Friendly
Ideal Applications
- Deep well water extraction
- Agricultural irrigation
- Livestock watering
- Remote water supply systems
- Solar or battery-powered installations
System Compatibility
Recommended PV Array Configurations
- 3600W System: 18 x 270W/30V panels (Series)
- 4800W System: 20 x 270W/30V panels (Series)
- 6000W System: 16 x 380W/40V panels (Series)
- 11000W System: 45 x 330W/36V panels (3P15S)
