3kW AC Servo Motor 130mm 220V
This 3kW AC servo motor features a 130mm frame size and operates at 220V. It is designed for use in robotics, CNC machines, and other industrial automation systems.
![[copy][copy]S Servo Motor 130mm，3kw，220V - Image 1](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopycopys-servo-motor-130mm3kw220v%2F1.jpg&w=1536&q=75)

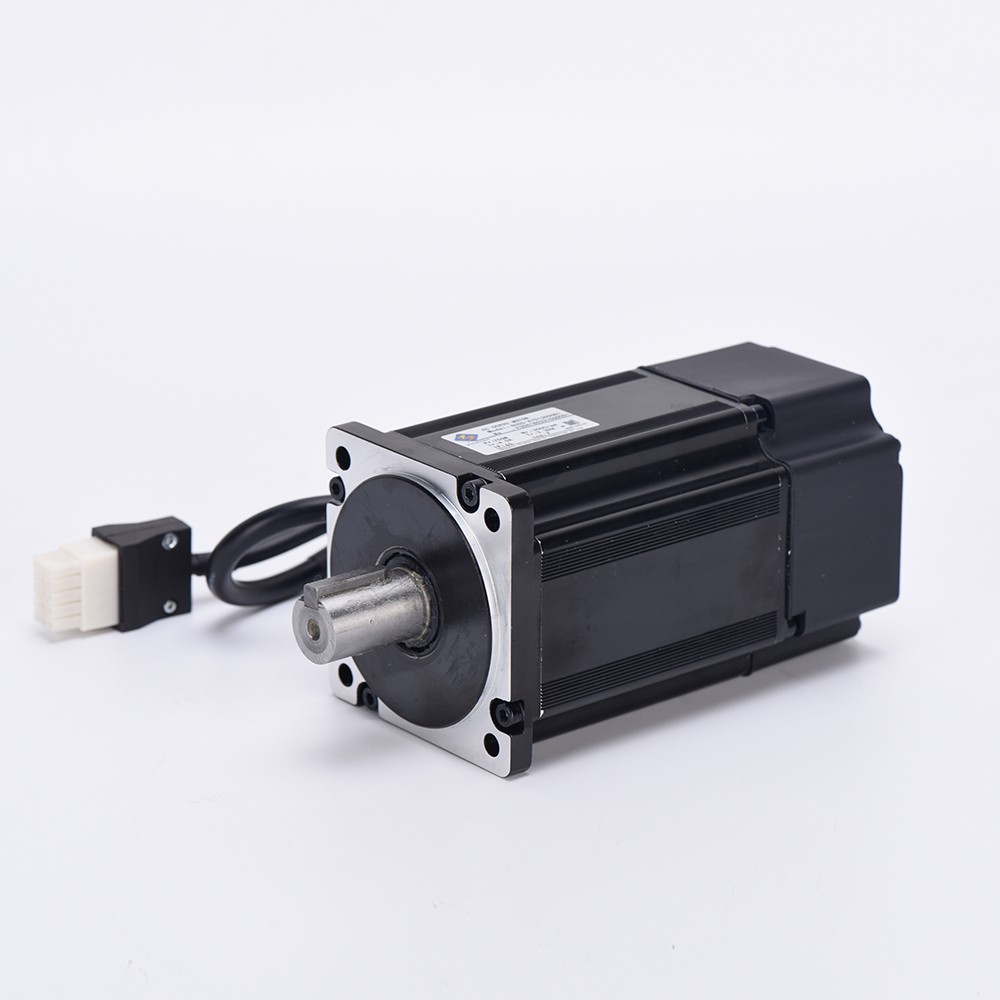

![[copy][copy]S Servo Motor 130mm，3kw，220V - Image 2](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopycopys-servo-motor-130mm3kw220v%2F0.jpg&w=1536&q=75)
Technical Specifications
Product Overview
High-Performance 3kW AC Servo Motor
This 3kW AC Servo Motor is designed for precision motion control in demanding industrial environments. Featuring a compact 130mm frame and a short body design, it utilizes new technology to provide high torque with low inertia for smooth and accurate movement. With an IP65 protection rating and versatile encoder options, it is an ideal solution for high-end CNC milling, engraving, and robotic applications.
Key Performance Metrics
Performance Highlights
3 kW
Rated Power
3,000 RPM
Rated Speed
9.55 N.m
Rated Torque
10 A
Rated Current
Technical Specifications
Electrical & Mechanical Data
| Parameter | Value |
|---|---|
| Model | 130SJZ-M06030 |
| Rated Voltage | 220V AC |
| Max Torque | 28.65 N.m |
| Max Speed | 3000 RPM |
| Insulation Class | F |
| Protection Class | IP65 |
| Pole Pairs | 5 |
| Torque Constant | 0.905 N-m/A |
| Voltage Constant | 61 V/krpm |
Design & Construction
Physical Characteristics
- 130mm Frame Size
- Compact Structure / Short Body
- Waterproof Motor Design
- High Servo Stability
- Low Rotor Inertia
Configuration Options
- Supported Encoders
- Absolute EncoderIncremental EncoderRotary Encoder23-Bit Motor Support
Applications
Primary Applications

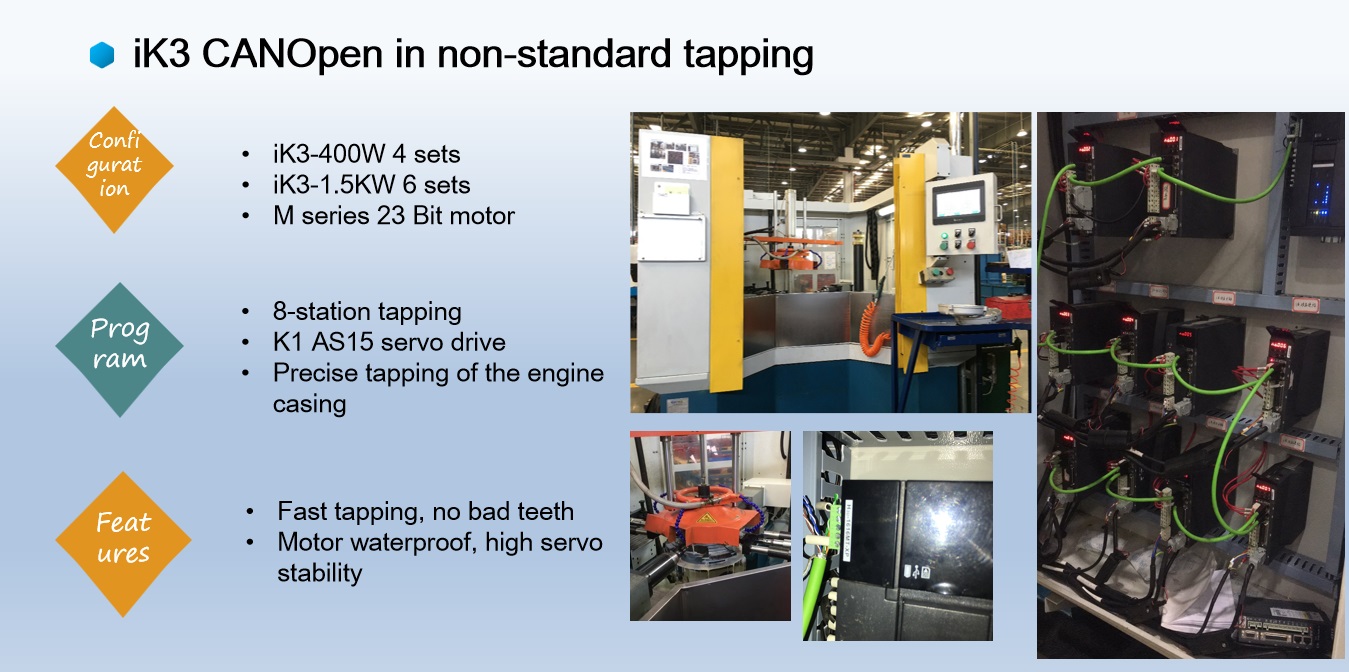

Jointed RobotsPicking RobotsCNC Milling & EngravingHigh-End Electronic EquipmentNon-standard Tapping
