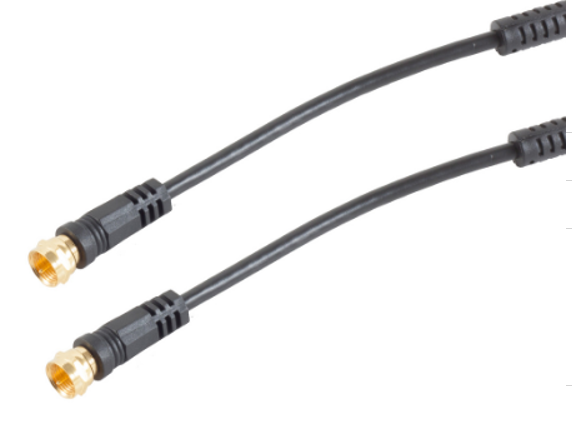

3C2V Coaxial Cable
This 3C2V coaxial cable is designed for reliable signal transmission. Its durable construction and precise connectors ensure optimal performance in various applications, such as connecting TVs and satellite receivers.
Technical Specifications
Product Overview
High-Performance 3C2V Coaxial Cable
This 3C2V coaxial cable is engineered for reliable signal transmission in CCTV and CATV applications. It features a precision-engineered inner conductor and robust shielding to ensure excellent signal integrity and minimal loss. Designed for versatility, the cable construction can be adjusted to meet specific project requirements, making it an ideal choice for professional AV installations.
Technical Specifications
- Inner Conductor Diameter
- 0.5 mm
- Conductor Material
- BCCCS
- Dielectric Diameter
- 2.5 mm
- Dielectric Material
- Foam PE
- Outer Conductor Diameter
- 2.74 mm
- Outer Conductor Construction
- 128 x 0.12 mm AL-Me wire
- Outer Jacket Diameter
- 5 mm
- Outer Jacket Material
- PVC (BLACK/WHITE)
Logistics & Packing
Packing Options
- Ring
- Wooden drum/pallet
- Plastic spool
- Available Packing Lengths
- 0.1m - 100m
