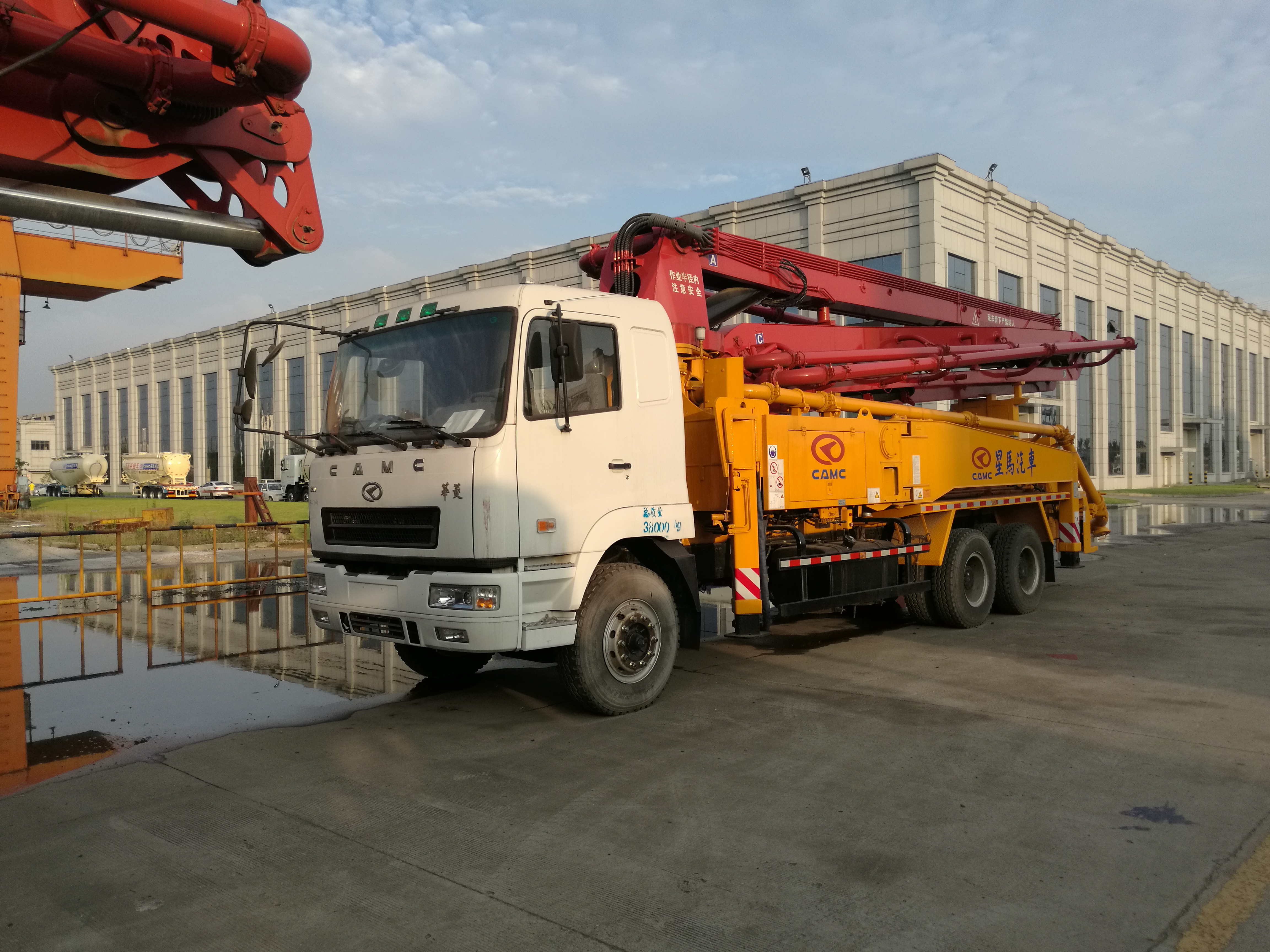

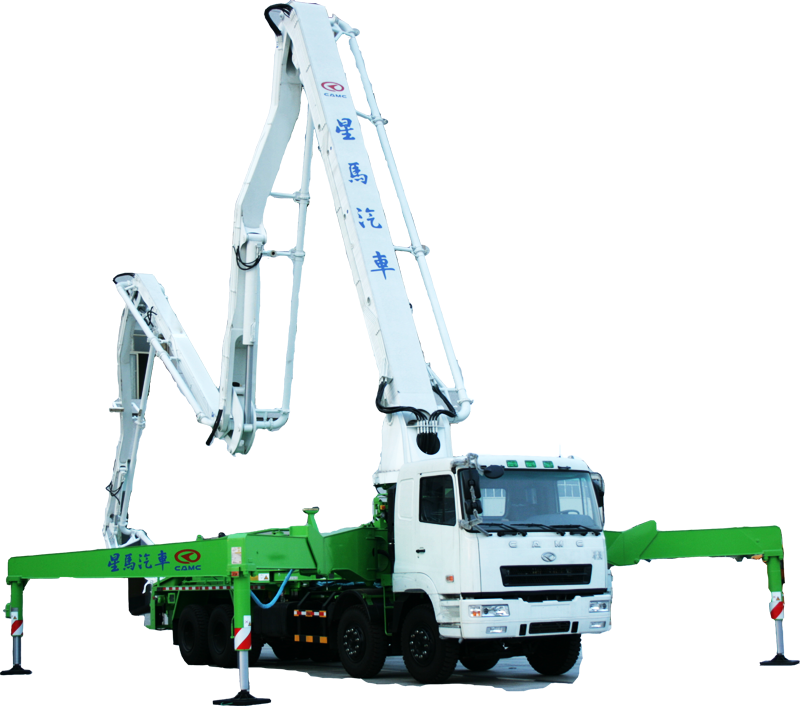

39-Meter Concrete Pump Truck
This 39-meter concrete pump truck is designed for efficient and precise concrete placement. It features a multi-section boom with a maximum reach of 39 meters and a high-capacity pumping system.
Technical Specifications
Overview
High-Performance Concrete Pump Truck
This 39-meter concrete pump truck is engineered for efficient and precise concrete placement on demanding construction sites. Featuring a 4-section boom with a maximum reach of 38.57 meters and a high-capacity pumping system, it ensures reliable performance for high-rise buildings and infrastructure projects. The vehicle is built on a heavy-duty 6x4 chassis, incorporating advanced hydraulic systems and user-friendly controls for safe, accurate operation.
Pumping System
Max Theoretical Throughput
203 m3/h
Max Throughput
Pumping System Details
| Parameter | Value |
|---|---|
| Max Outlet Pressure | 7.8 MPa |
| Rated Working Pressure | 34 MPa |
| Bucket Capacity | 550 L |
| Distribution Valve | S tube valve |
Boom and Reach
Reach Capabilities
38.57 m
Max Distribution Height
34.57 m
Max Distribution Radius
Boom Structure
- Structure form: 39-4R
- Arm section number: 4
- Turning Angle: 365°
- Pipe diameter: 125 mm
Chassis and Engine
Fuel Type
Diesel
- Drive Configuration
- 6x4
- Vehicle Dimensions
- 12440 x 2495 x 3890 mm
Operation and Safety
- Control System
- ManualRemote Control
- Lubrication
- Yes
