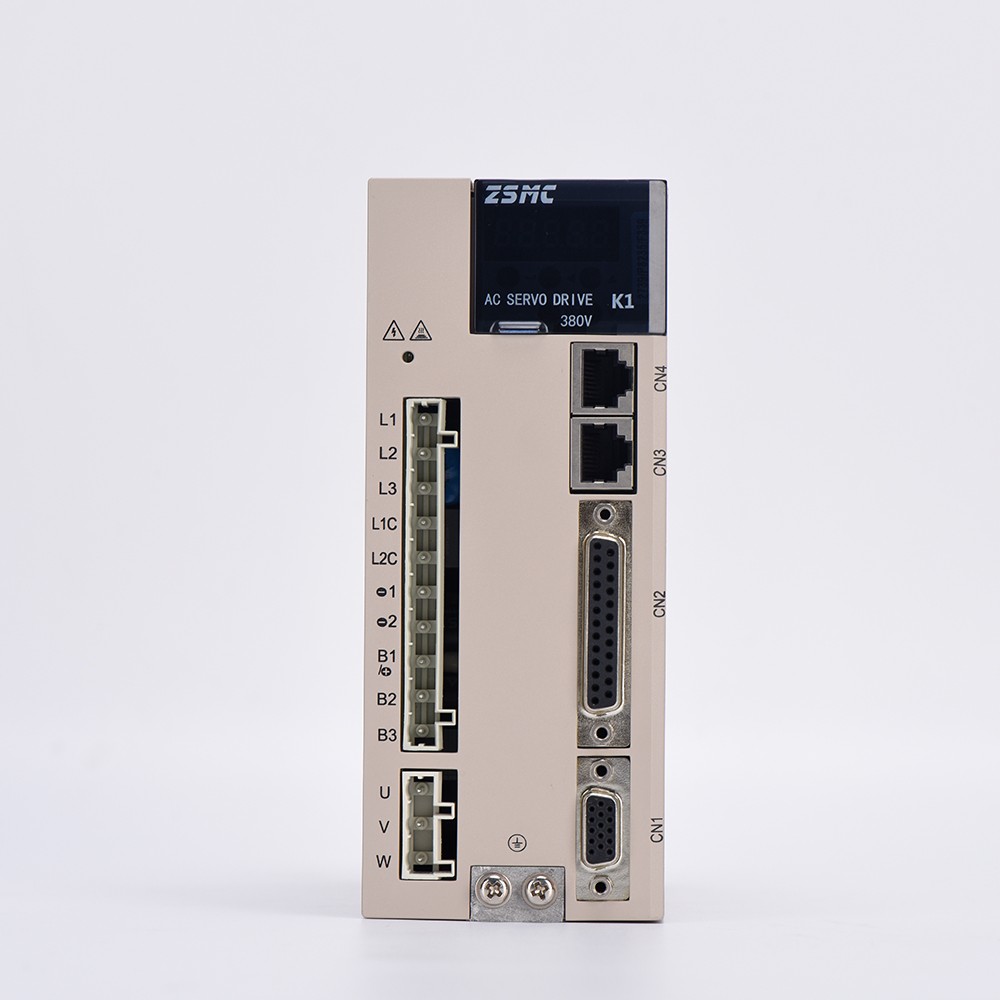

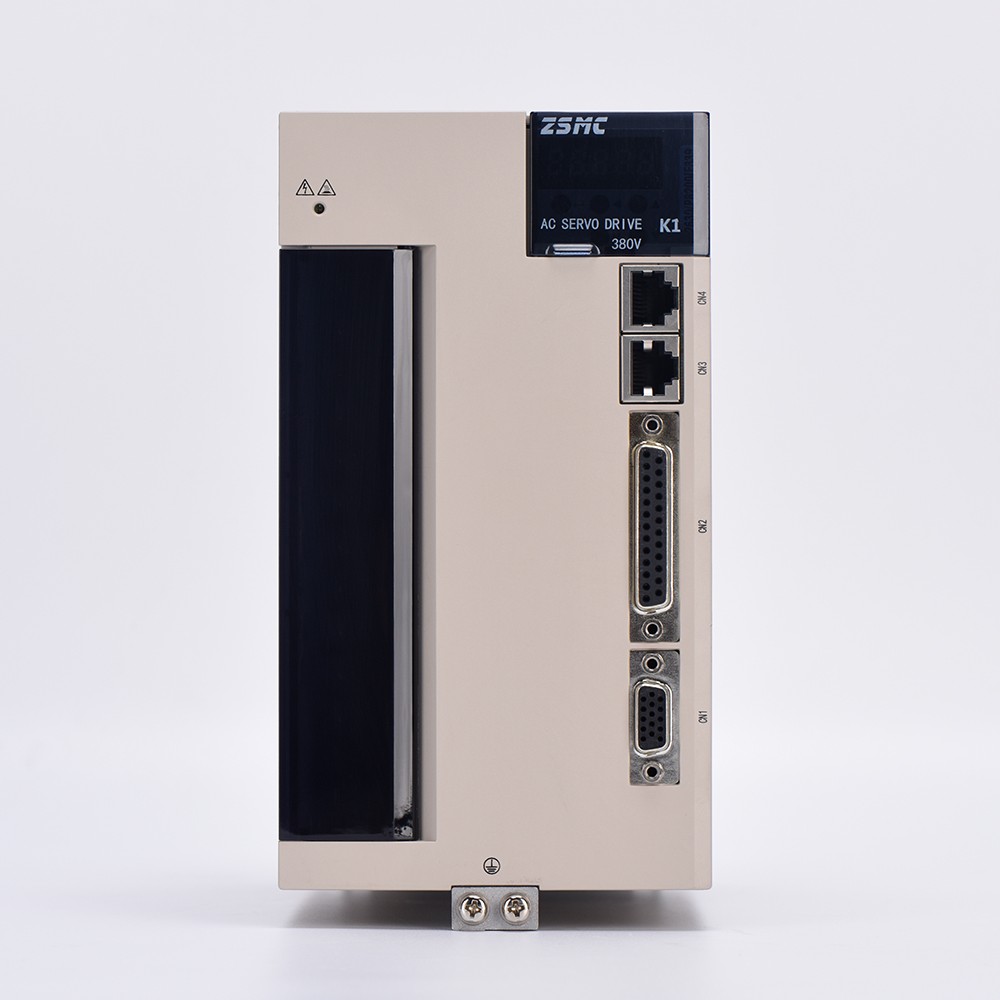

3.8kW 380V Servo Drive for Automation
This 3.8kW servo drive is designed for industrial automation applications requiring precise motion control. Operating at 380V, it offers multiple communication interfaces for seamless integration with various control systems.
Technical Specifications
Product Overview
High-Performance Servo Control

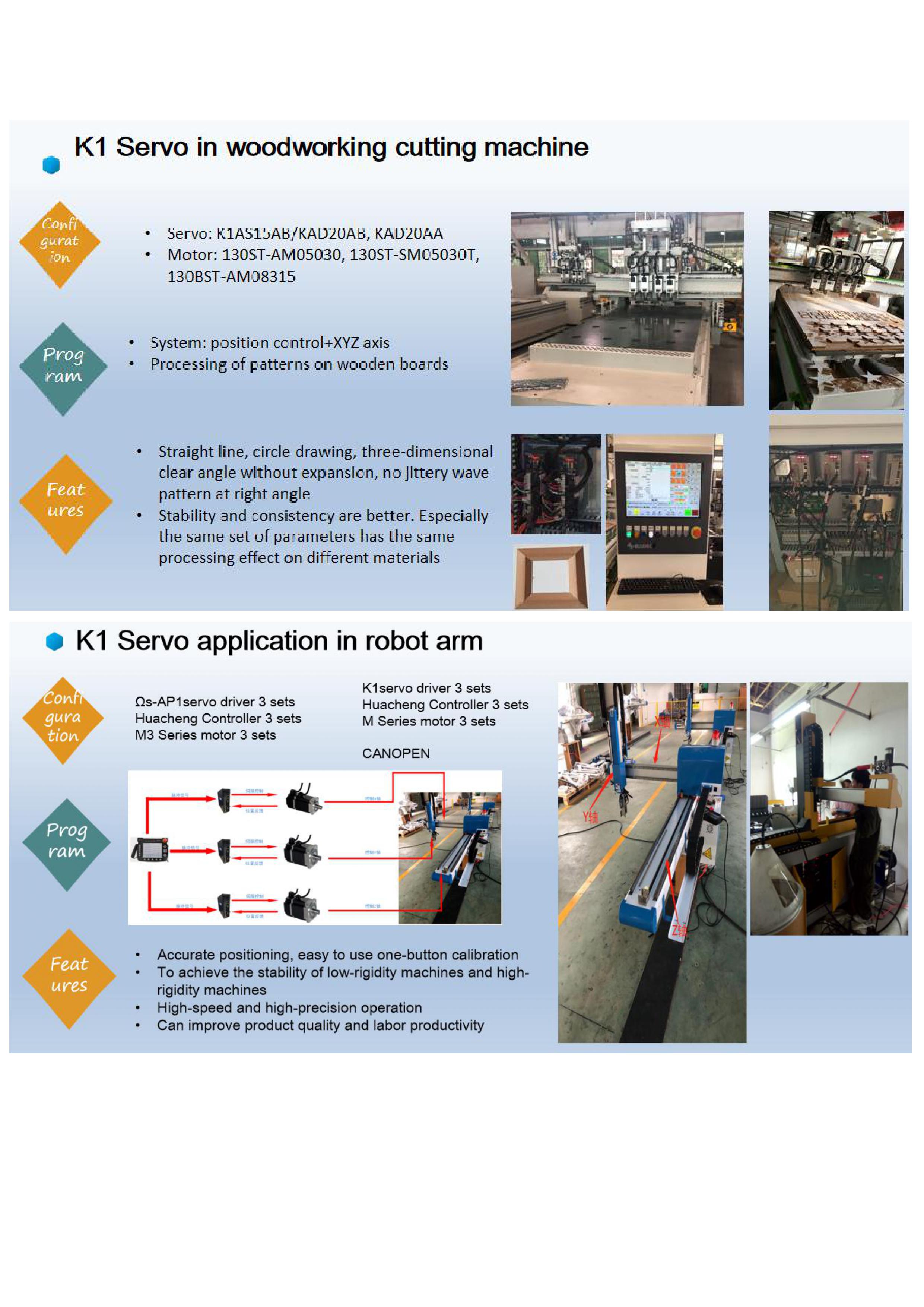

This 3.8kW servo drive is engineered for precision industrial automation, supporting complex motion control via internal multi-path planning and high-speed pulse inputs. It features advanced resonance suppression and frictional torque compensation to ensure stable operation even in demanding mechanical environments. Designed for flexibility, the unit supports multiple control modes including position, speed, and torque regulation for versatile application in machinery like UV flatbed printers and robot arms.
Technical Specifications
Rated Power
3.8 kW
Rated Power
12 A
Rated Current
- Power Input
- Three-phase 380V AC (-15~+10%, 50~60Hz)
- Control Modes
- Position ControlSpeed ControlTorque ControlInternal Speed
Advanced Features
Key Functionalities
- Mechanical resonance frequency analysis (50-5000Hz)
- Frictional torque compensation
- Automatic load inertia identification
- Supports up to 32 internal position data sets

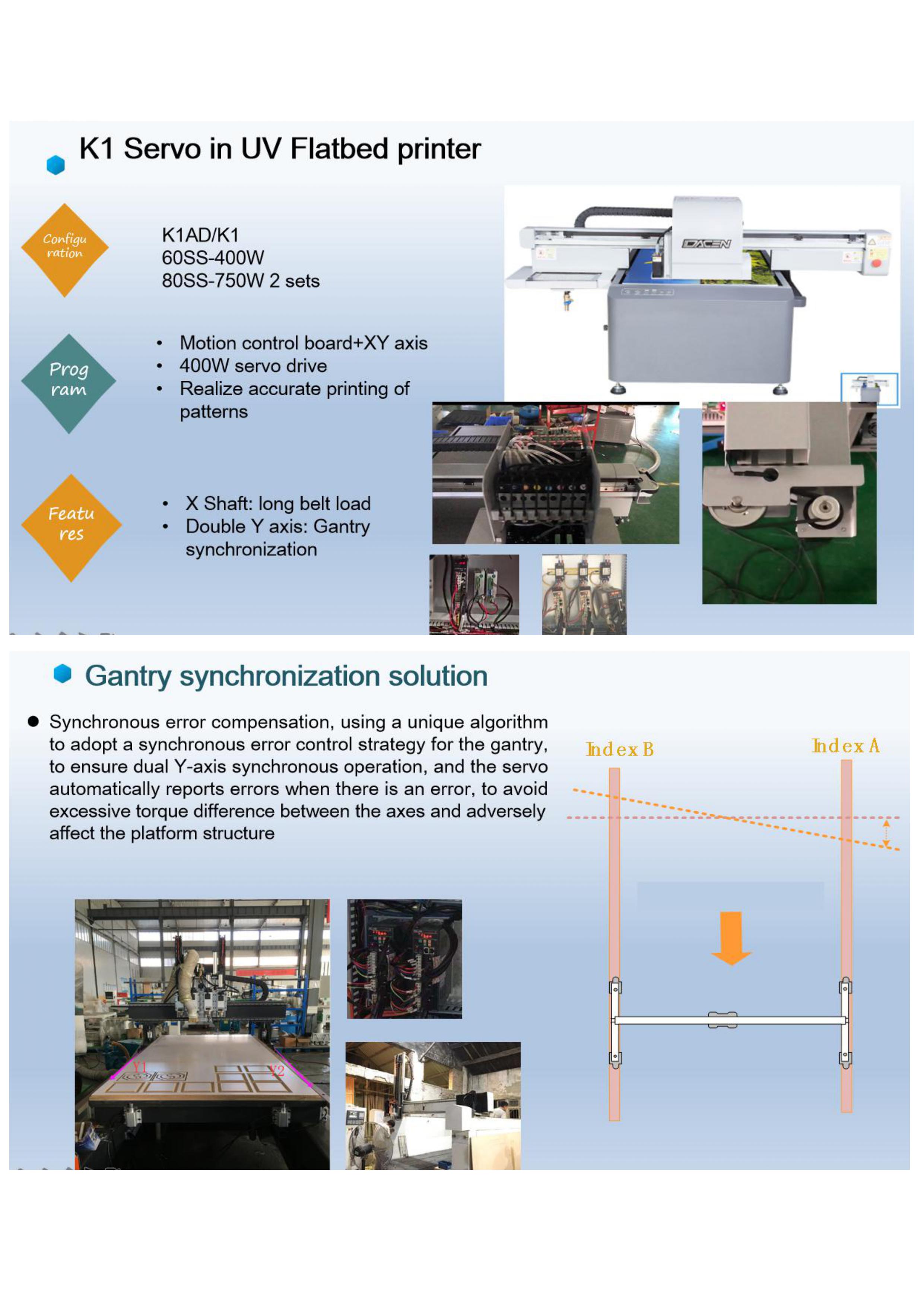

- Gantry synchronization with error compensation
- Communication Interfaces
- CANopenModbusPulse InputDifferential Input
Operating Environment
Operating Conditions
| Parameter | Specification |
|---|---|
| Working Temperature | 0 to 45°C |
| Altitude | Below 1000m |
| Humidity | 20-85% RH (non-condensing) |
| Vibration | 5.8 m/s² (0.6G) max |
