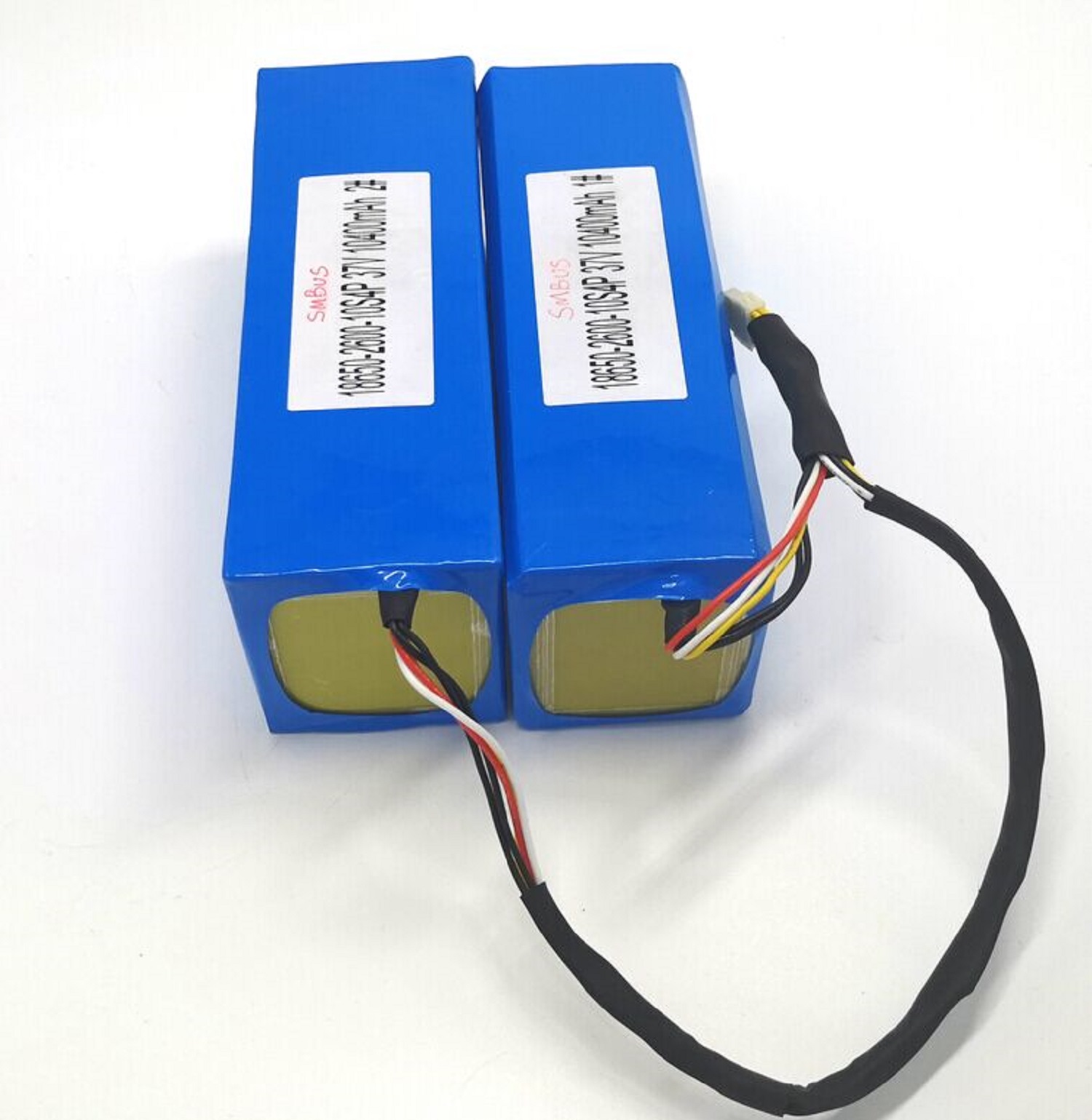

37V 10400mAh 18650 Lithium-Ion Battery Pack
This is a high-capacity 18650 lithium-ion battery pack configured as 10S4P, delivering 37V with a capacity of 10400mAh. Designed for high-performance applications, this battery pack provides reliable and consistent power.
Technical Specifications
Overview
High-Performance 10S4P Battery Pack
This 37V lithium-ion battery pack is engineered for demanding applications requiring consistent and reliable power. Built with a 10S4P configuration using 18650 cells, it delivers a nominal capacity of 10400mAh. The unit includes comprehensive protection features such as overcharge, over-discharge, and short-circuit safeguards, ensuring safe and stable operation across a wide temperature range.
Electrical Specifications
- Nominal Voltage
- 37 V
- Nominal Capacity
- 10400 mAh
- Charging Cut-off Voltage
- 42 V
- Discharge Cut-off Voltage
- 30 V
- Communication Protocol
- I2C
Charging Performance
Charging Metrics
0.2 C
Standard Charging Current
0.5 C
Fast Charging Current
5.5 h
Standard Charge Time
Mechanical & Environmental
Operating Temperature
| Mode | Temperature Range |
|---|---|
| Charging | 0°C to 45°C |
| Discharging | -20°C to 60°C |
- Dimensions
- 72 x 91 x 198 mm
Safety & Protection
- Protection Features
- Overcharge ProtectionOver-discharge ProtectionDischarge Overcurrent ProtectionShort Circuit Protection
