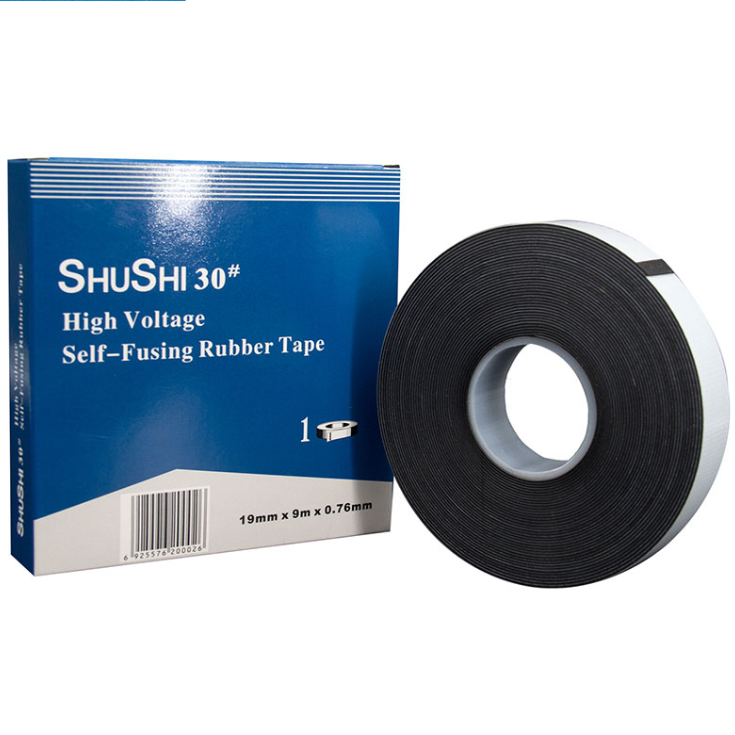

35kV Self-Amalgamating Insulating Tape

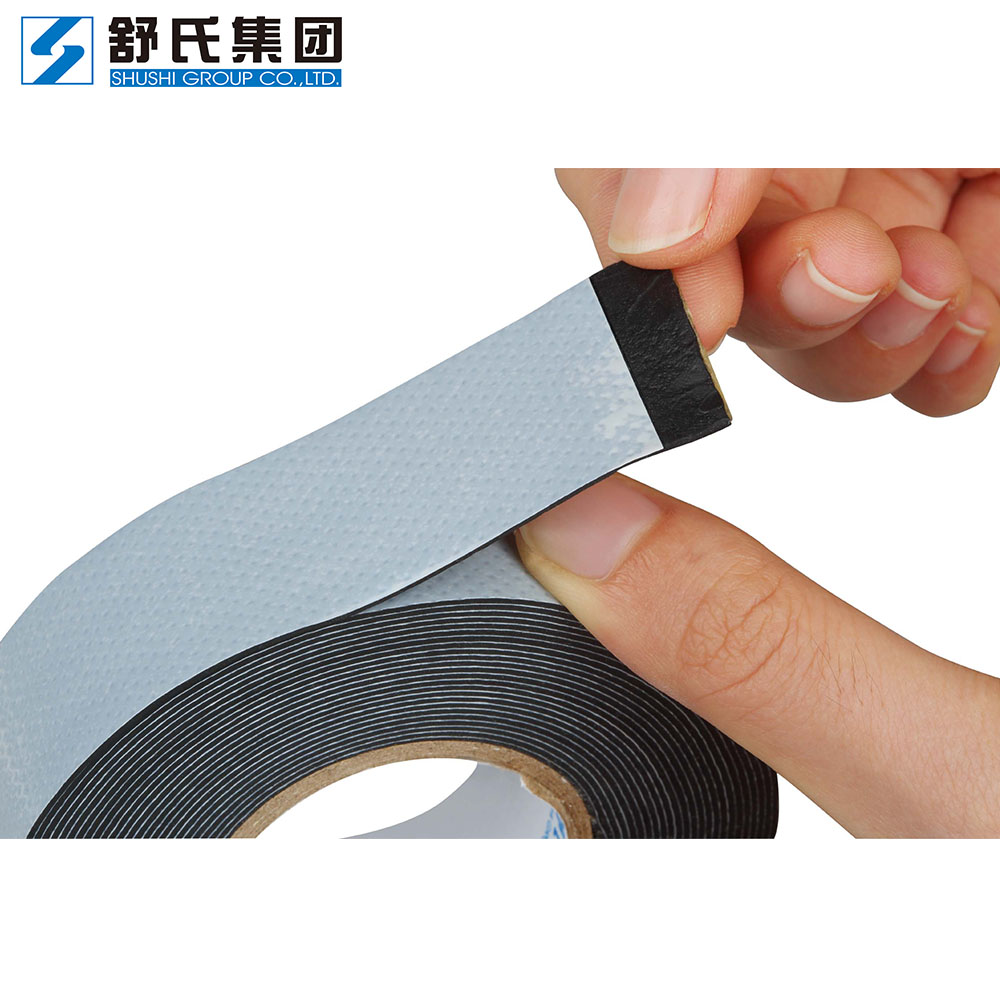

This self-amalgamating tape is rated for use up to 35kV, making it suitable for high-voltage applications. It bonds to itself when wrapped under tension, creating a waterproof and airtight seal for insulating electrical connections, cables, and joints.
Technical Specifications
Product Overview
High-Performance Self-Amalgamating Tape
This 35kV self-amalgamating rubber tape provides a versatile solution for professional electrical insulation, waterproofing, and splicing applications. Designed to fuse with itself when stretched and overlapped, it creates a seamless, void-free, and highly flexible rubber molding. With exceptional resistance to water, UV, and ozone, it is ideal for protecting cable connections in both permanent and temporary environments.
Technical Parameters
- Thickness
- 0.76 mm
- Tensile Strength
- 1.3 Mpa
- Elongation at Break
- 700 %
- Disruptive Strength
- 16 kV/mm
Key Features
- Performance Characteristics
- WaterproofUV ResistantOzone ResistantSelf-FusingClean Removal
Availability Options
Available Widths
- 18mm
- 19mm
- 25mm
- 38mm
- 50mm
Available Lengths
- 2m
- 5m
- 9m
- 10m
Applications
Primary Applications
- Communications cable connections
- Pipeline protection
- High-voltage cable splicing (up to 35kV)
- Temporary insulation
- Moisture-proof sealing
