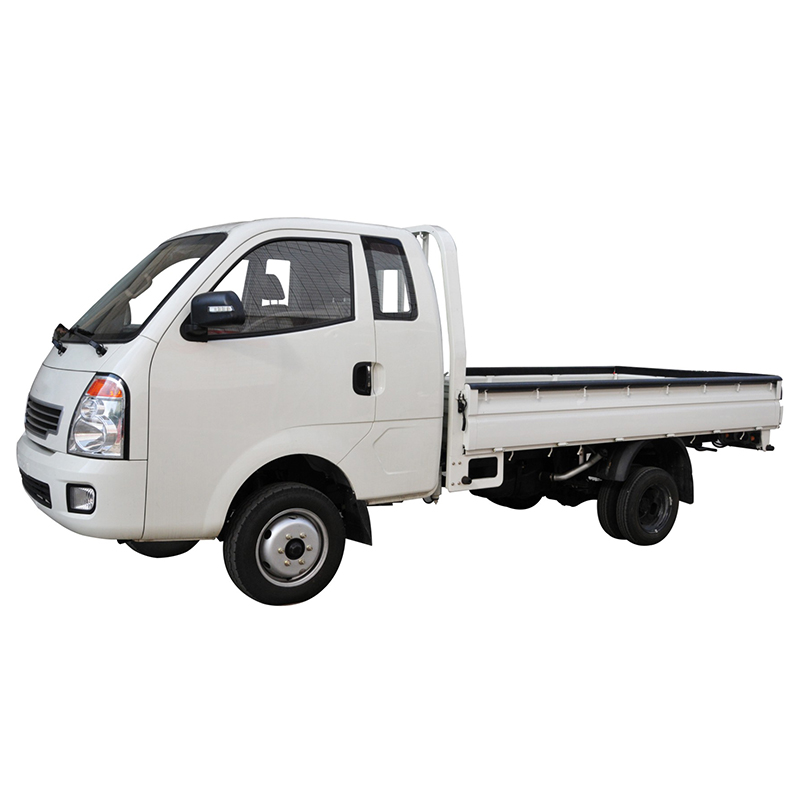

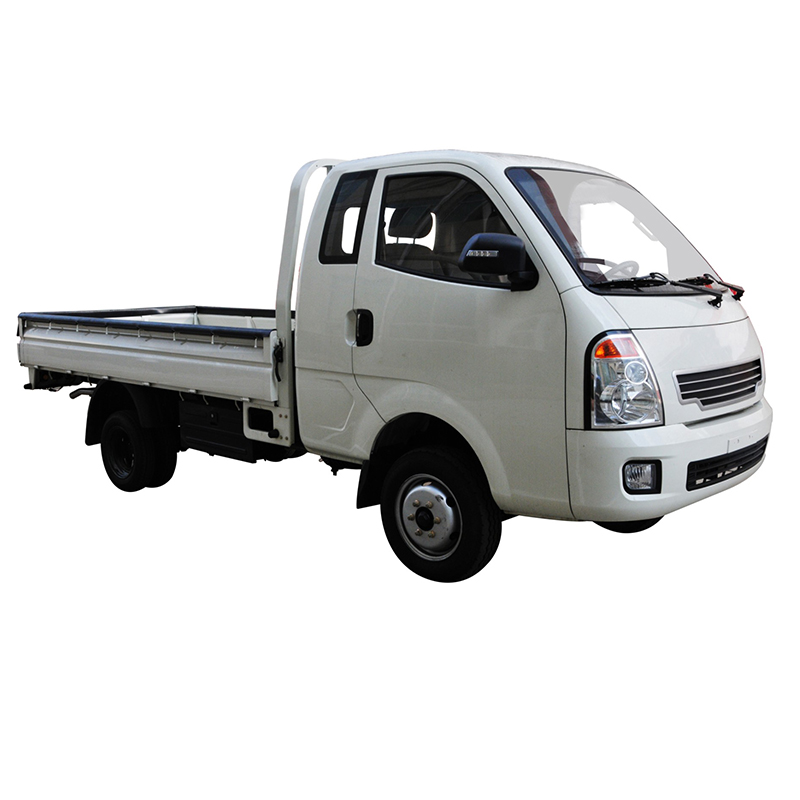

3.5 Ton Electric Powered Cargo Truck
This 3.5-ton electric cargo truck has a gross weight of 3490kg and a loading weight of 1000kg. The small-size electric truck features a spacious truck cab.
Technical Specifications
Overview
Efficient Urban Logistics Solution
This 3.5-ton pure electric cargo truck is designed for zero-emission urban transportation, offering a sustainable alternative to traditional fuel vehicles. It features a space-efficient cabin and a robust lithium battery system, making it ideal for last-mile delivery in Europe and the USA. With operating costs at only 26% of fuel vehicles and high energy conversion efficiency through regenerative braking, it provides a highly economical and eco-friendly solution for modern businesses.
Key Performance Metrics
Performance Highlights
3,500 kg
Gross Weight
1,000 kg
Rated Payload
80 kW
Peak Power
300 N·m
Peak Torque
Dimensions & Weight
- External Dimensions
- 5385 × 1740 × 2020 mm
- Wheelbase
- 2820 mm
- Min. Ground Clearance
- 120 mm
- Curb Weight
- 2300 kg
Powertrain & Battery
- Motor Type
- Permanent Magnet Synchronous Motor
- Battery Type
- Lithium Battery
- Battery Capacity
- 172 Ah
- Rated Voltage
- 330 V
Chassis & Handling
Suspension
- Front: Wishbone & Cross member
- Rear: Leaf spring & Semi-floating
- Steering System
- Hydraulic Power Steering
- Braking System
- Front Disc / Rear Drum
Interior & Comfort
- Cabin Equipment
- Air ConditioningLeather Reclinable SeatsPower WindowsCentral Locking2-Person Seating
Safety & Exterior
Safety Equipment
- Front Fog Lamps
- Driver & Passenger Seat Belts
- High Quality Reflector Headlights
- Anti-reflection Rearview Mirror
Manufacturing & Logistics
Supply Formats
CBUSKDCKD
Testing & Quality
Pre-delivery Inspection

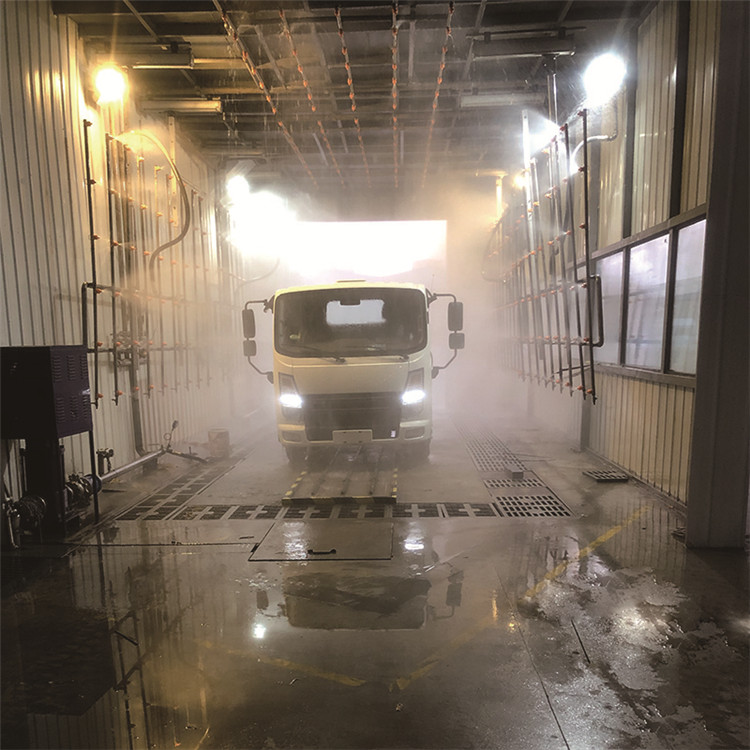

- Rain Test

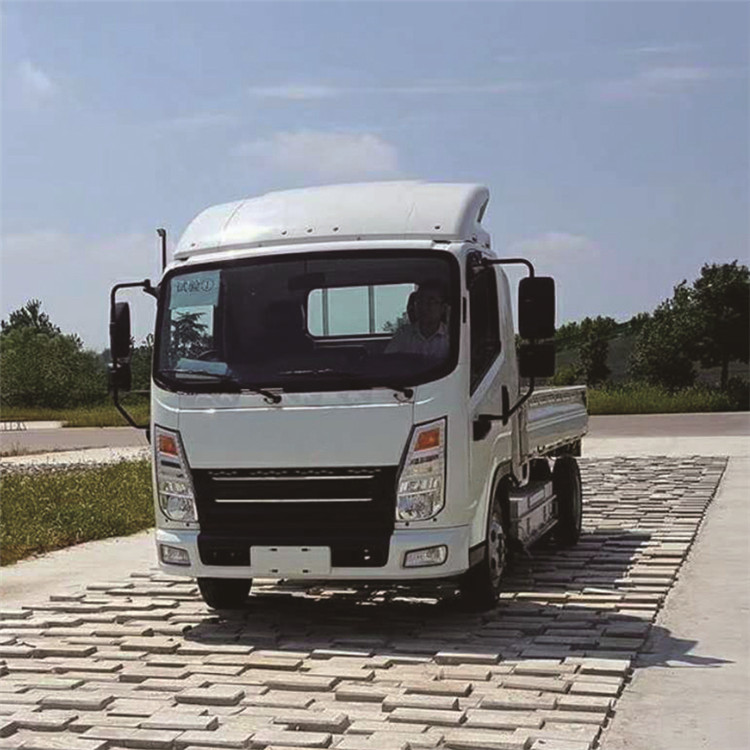

- Road Operation Test
