Technical Specifications
Overview

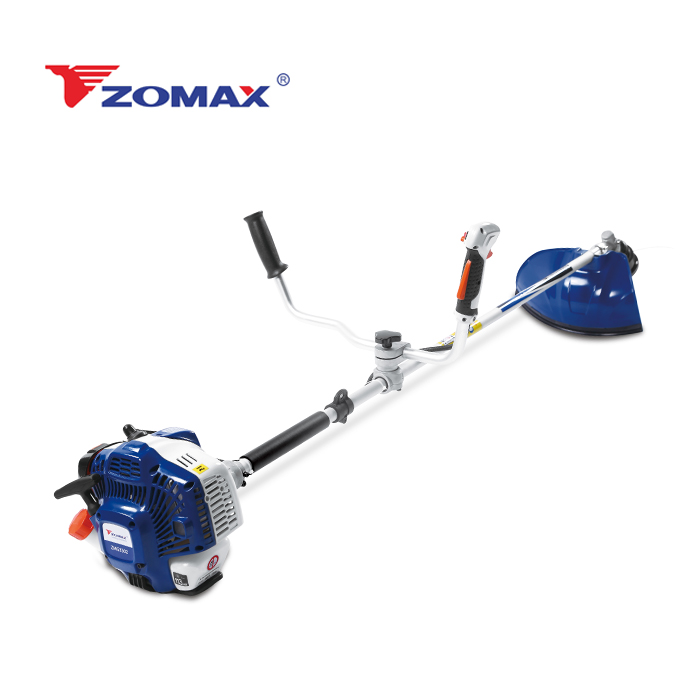

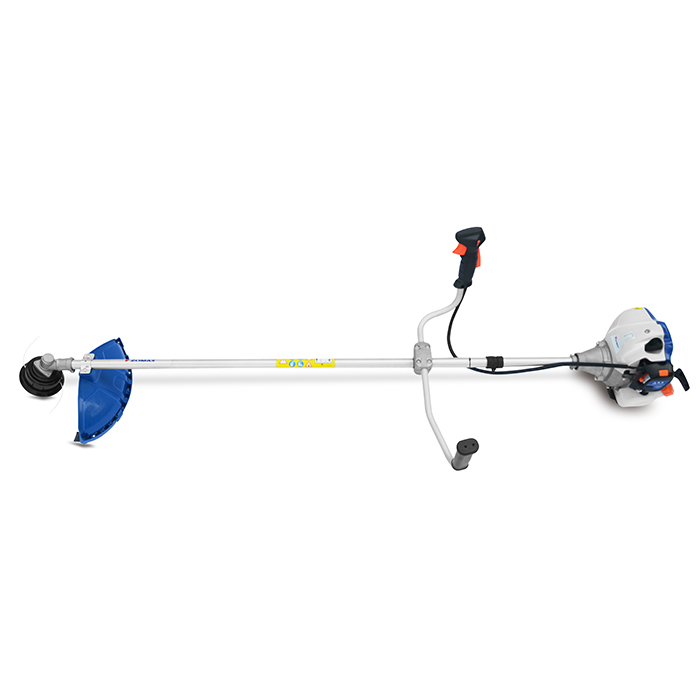

High-Performance 33cc Brush Cutter
This 33cc brush cutter is engineered for professional-grade trimming and brush clearing, featuring a high-torque engine for superior power and speed. Designed with a low-vibration clutch and ergonomic handles, it ensures user comfort and reduced fatigue during extended landscaping tasks. The versatile detachable front allows for optional attachments, making it a multi-functional tool for maintaining gardens, fields, and thick vegetation.
Engine Performance
Engine Performance
32.6 ml
Displacement
0.9 kw
Rated Power
10,000 rpm
Max Speed
- Fuel Tank Capacity
- 650 ml
- Idle Speed
- 3000 rpm
Mechanical Design
Key Features
- High torque for power and speed
- Soft & smooth engine recoil starter
- Solid steel start part drive shaft
- Detachable front for optional attachments
- Low vibration clutch design
- Transmission System
- Clutch + Hard Shaft + Gearbox
Shaft & Cutting Specs
Shaft & Drive Specifications
| Component | Measurement |
|---|---|
| Working Shaft Length | 1500 mm |
| Working Shaft Diameter | φ26 mm |
| Drive Shaft Diameter | 8 mm |
| Shaft Teeth | 9 |
Cutting Equipment
| Part | Specification |
|---|---|
| Line Head Trimmer | 430 mm |
| Grass Blade | 255 mm |
| Blade Thickness | 1.4 / 2.0 mm |
| Line Shape | Round |
| Line Diameter | 2.5 mm |
Physical Dimensions
- Net Weight
- 7.4 kg
- Engine Bore & Stroke
- φ36 mm x 32 mm
